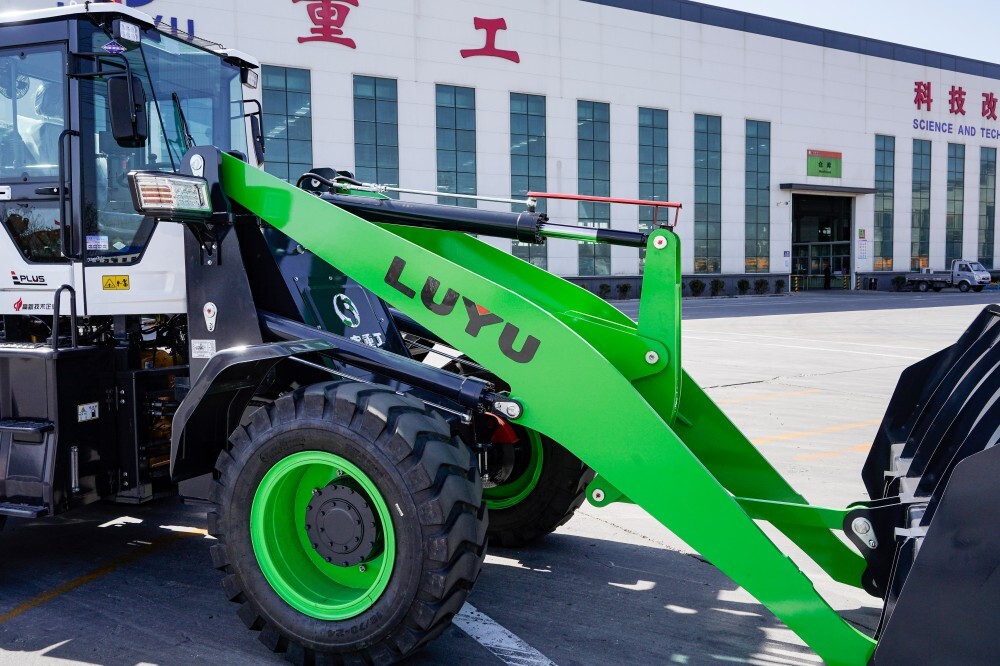

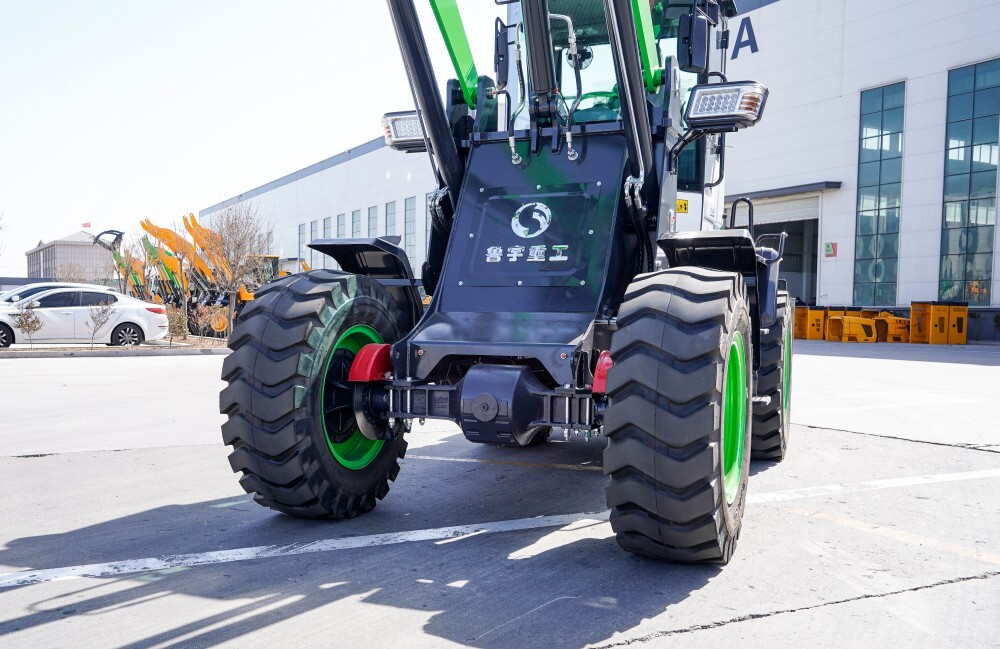

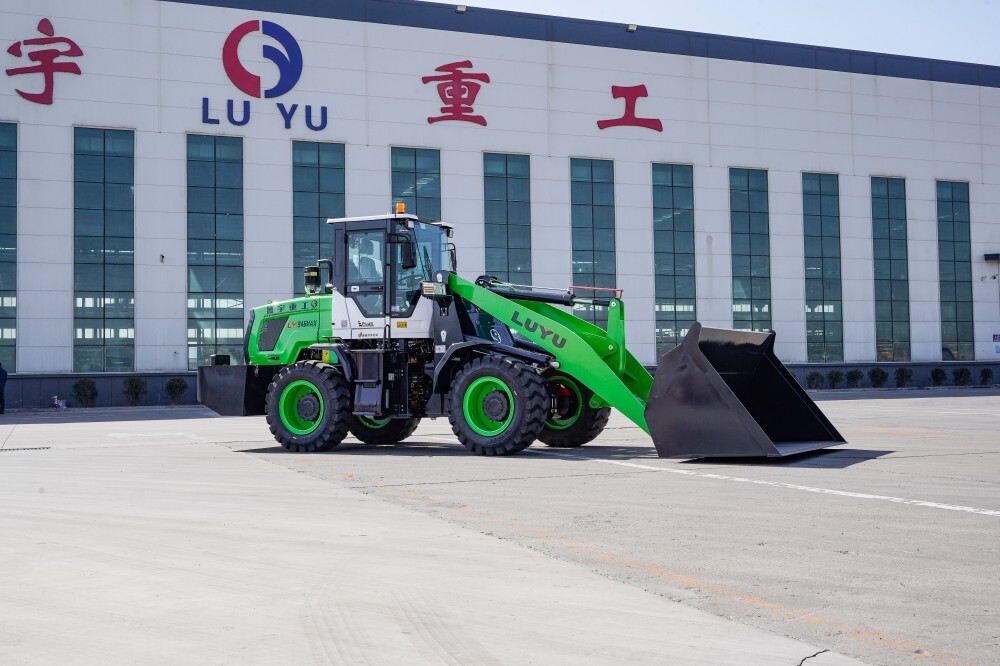

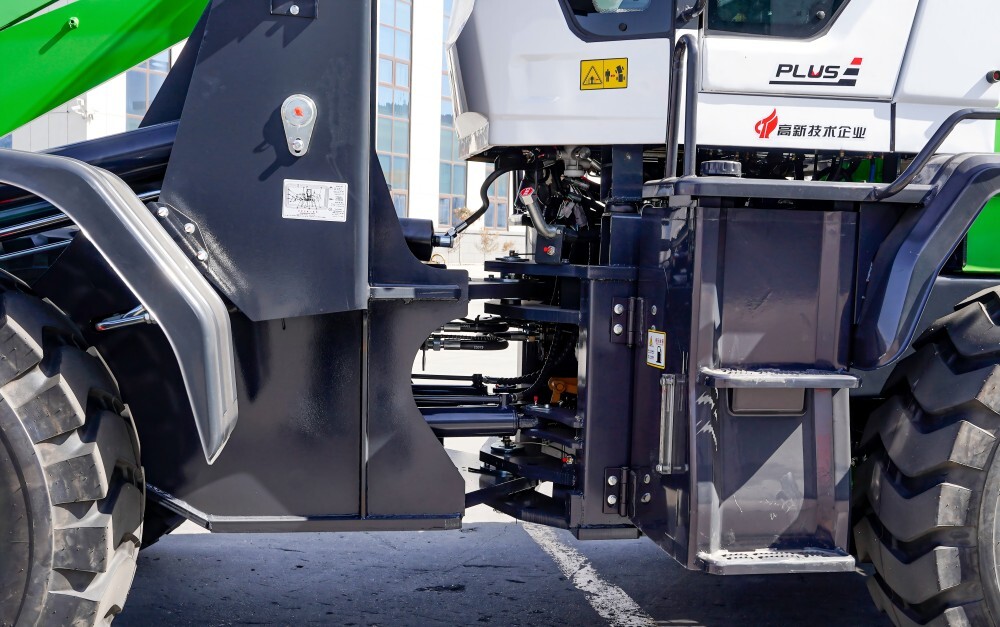

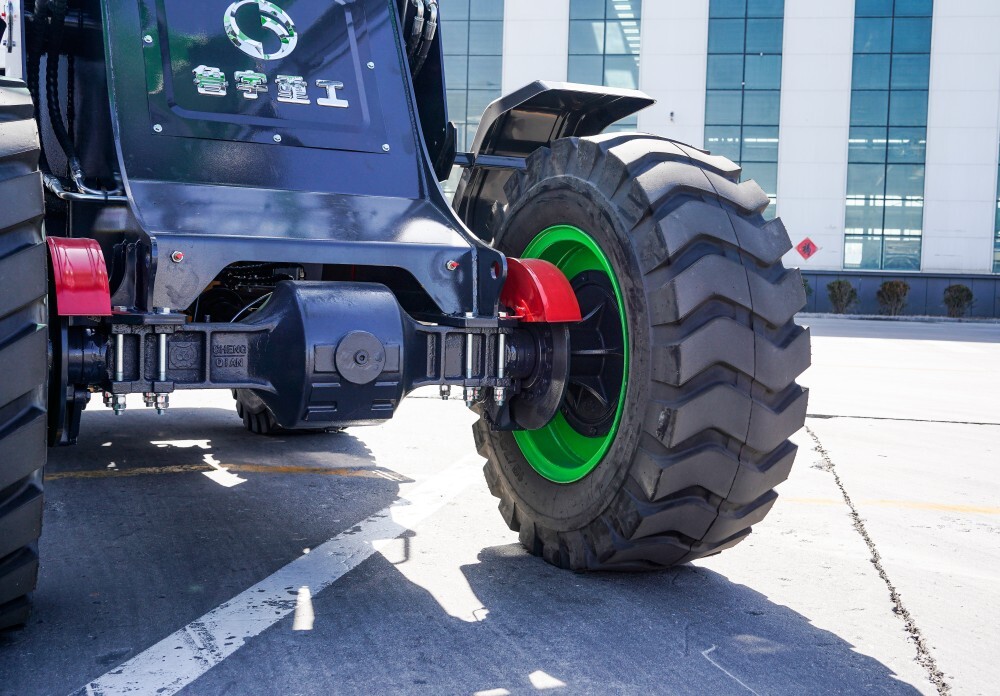

952 Grain Bucket Loader
The 952 Grain Bucket Loader's widened bucket has a larger width than the standard bucket, allowing for increased loading capacity.
EngineYN48T(92KW/123HP)
Rated load3000kg
Dumping height4500mm
Bucket capacity2.4m³

The 952 Grain Bucket Loader's widened bucket has a larger width than the standard bucket, allowing for increased loading capacity.

PARAMETERS

EngineYN48T(92KW/123HP)
Rated load3000kg
Dumping height4500mm
Bucket capacity2.4m³
Tire16/70-20
Unloading distance1330mm
Total weight6800kg
Size(L*W*H)7930*2650*3080mm
Bucket width2.4m*1m
Arm thickness30mm
Boom center distance960mm
Cylinder size60/100mm
Cylinder size70/110mm
Thickness of upper plate40mm
Hinge plate40/30mm
Wheel track1570mm
Wheel base2720mm
Min.ground clearance           380mm

DETAILS

ADVANTAGES

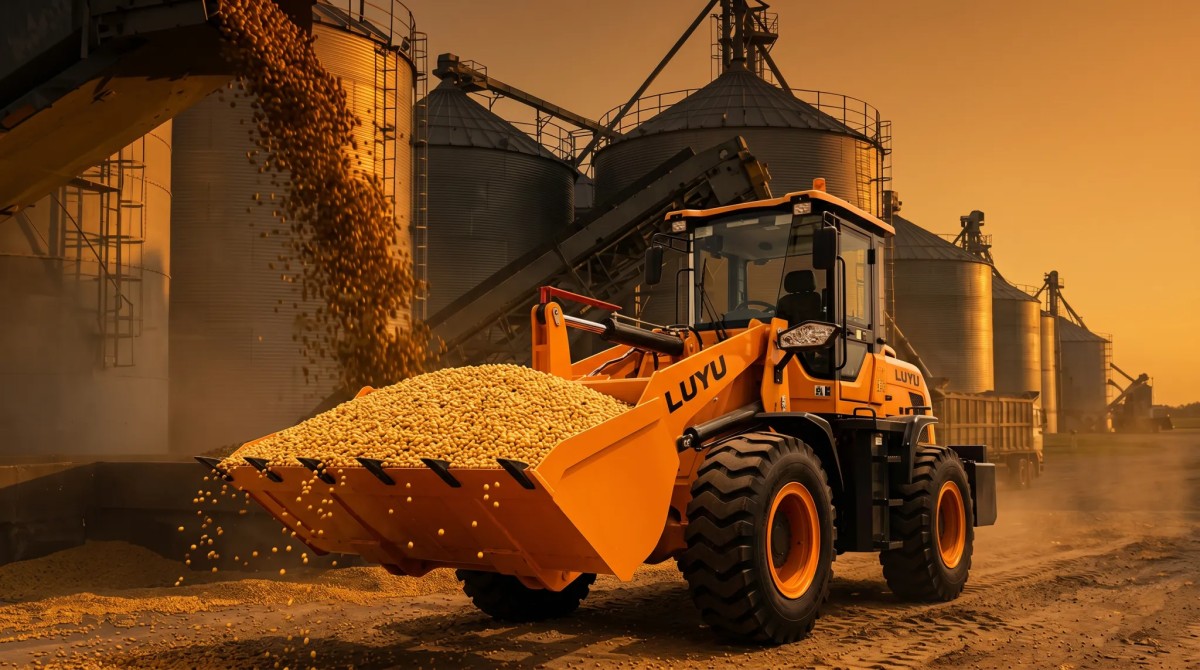

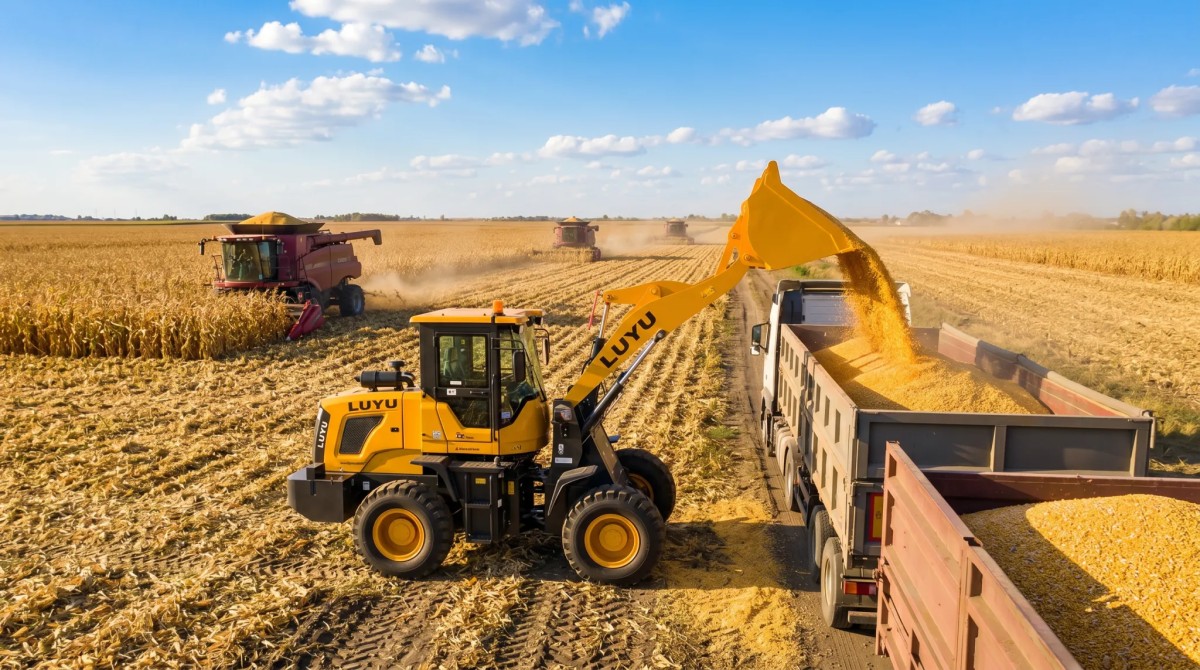

The 952 Grain Bucket Loader's widened bucket has a larger width than the standard bucket, allowing for increased loading capacity. This is very useful for large-scale crop loading tasks. It can reduce the number of loading and improve work efficiency. Thanks to the larger width of the widened Bucket, the 952 Grain Bucket Loader can load more crops at once, resulting in faster loading and unloading. This is especially important for time-sensitive agricultural activities, such as harvest season or peak crop transport. The widened bucket is suitable for different types and different sizes of crops. Whether it is grain, oil, oil, vegetables or feed crops, the wide bucket can be effectively loaded and unloaded. The widened Bucket of the 952 Grain Bucket Loader can better control the process of loading and unloading crops, reducing the loss and waste of crops during operation. The width of the bucket can better cover the crop stacking area and avoid crop scattering. It can also increase the stability of the loader, and the load of crops is more evenly distributed, which is beneficial to the balance and stability of the machine, reducing the risk of tipping and accidents.

In the agricultural sector, crops are usually loaded and unloaded at a storage site. The wider Bucket can better adapt to the width and shape of different stacking sites, so that the 952 Grain Bucket Loader can easily enter the narrow or limited space for loading and unloading operations. The wider bucket can improve the stability of the loader, and when the loader loads the crop, the distribution of the crop is more uniform, the center of gravity is more stable, and the risk of tipping and imbalance is reduced. The wider bucket also reduces friction and collisions between the loader and the stacking material, it provides a greater contact area and reduces the force and pressure between the loader and the crop, thus reducing the risk of loader damage. 952 Grain Bucket Loader The wider bucket can better control the load and distribution of crops, so that the loader can more accurately load the required amount of crops, avoiding overload or insufficient situations.

The wider Bucket gives the Loader greater flexibility, it can adapt to different sizes and different types of crop loading needs, providing more options and adaptability, making the 952 Grain Bucket Loader more versatile in different agricultural operations.

The 952 Grain Bucket Loader has a ground clearance of 380 mm, which means that the loader can more easily pass uneven ground or obstacles, such as bumps, rocks, small pits, etc. This improves the passing power of the 952 Grain Bucket Loader, allowing it to move and operate better in difficult terrain and operating environments. The ground clearance is related to the contact between the sea loader and the ground. The large ground clearance means that the loader chassis is far away from the ground, helping to prevent friction, collision and damage when the chassis is in contact with the ground, which is especially important when passing through uneven ground or fragile ground such as grass, which can reduce damage to the ground. The larger ground clearance means that the loader is able to lift or descend to a higher position, thus having a greater working range and height, which is helpful for tasks such as loading and unloading high-stack materials, loading or unloading trucks to taller trucks or containers. The large ground clearance of the 952 Grain Bucket Loader improves the ability and stability of the loader on difficult terrain, muddy or rough roads. It allows the loader to avoid obstacles on the ground, keep the machine stable and avoid getting stuck or stuck.
