During the operation, maintenance and overhaul of the self-loading mixer truck, please be sure to comply with the relevant safety regulations and carry out under the premise of personal and equipment safety.

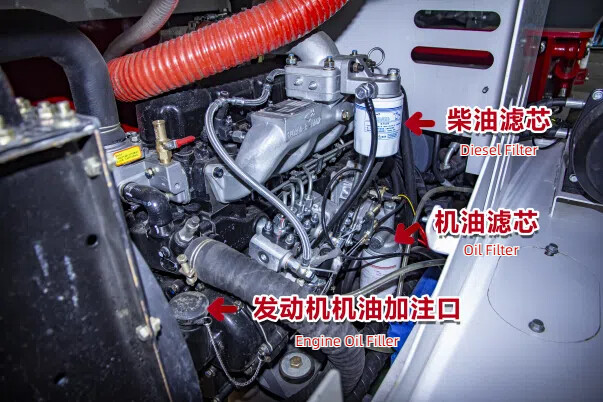

Engine first maintenance: the engine worked for 300 hours, you need to replace the engine oil (15W-40 diesel engine oil 5-8kg), oil filter, diesel filter, air filter (Note: self-loading mixer truck air filter at least once a week to clean), after 1000 hours can be replaced.

Torque converter maintenance: The torque converter oil discharge port and filter in the lower left corner of the torque converter, use a wrench to unscrew the screws, drain the oil clean, and then clean the filter. After cleaning, open the cover plate and add No. 8 hydraulic transmission oil (about 20-25kg) from above the transmission, which is one-half of the glass tube after the engine is started.

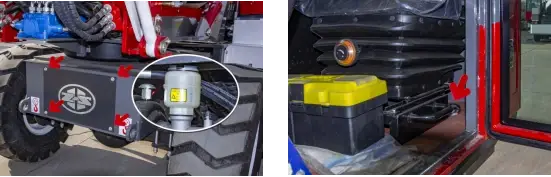

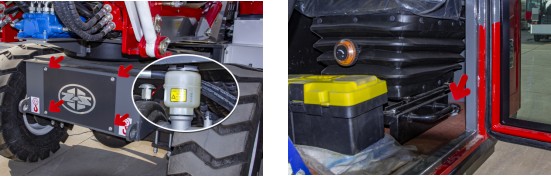

Brake oil: Self-loading mixer truck regularly checks the brake oil, keeping the amount of brake oil not lower than the lower limit of the oil cup label. (The front brake oil cup is located above the front axle, which can be seen by opening the fixing cover screws, and the rear brake oil cup is located in the lower left corner of the driver's seat.)

Hydraulic System Maintenance: Replace the hydraulic oil (L-HM46 anti-wear hydraulic oil) once in 300 hours for the first time and clean the filter, using again for 1000 hours or once a year. The oil discharge port of the front hydraulic tank is at the bottom of the tank, and the amount of oil in the rear hydraulic tank is added to the red dot.

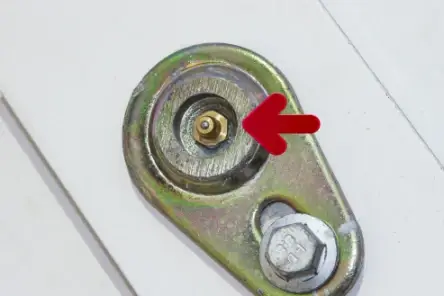

Before the first work of the new car, it is necessary to grease the hydraulic system pin shaft and articulation. The hydraulic system pins and articulations are filled or re-greased before working every day.

Bridges, reducers: Change the gear oil every 1000 hours. Add 4kg of gear oil to the middle of the bridge and 2kg of gear oil to each side.
