LY1000

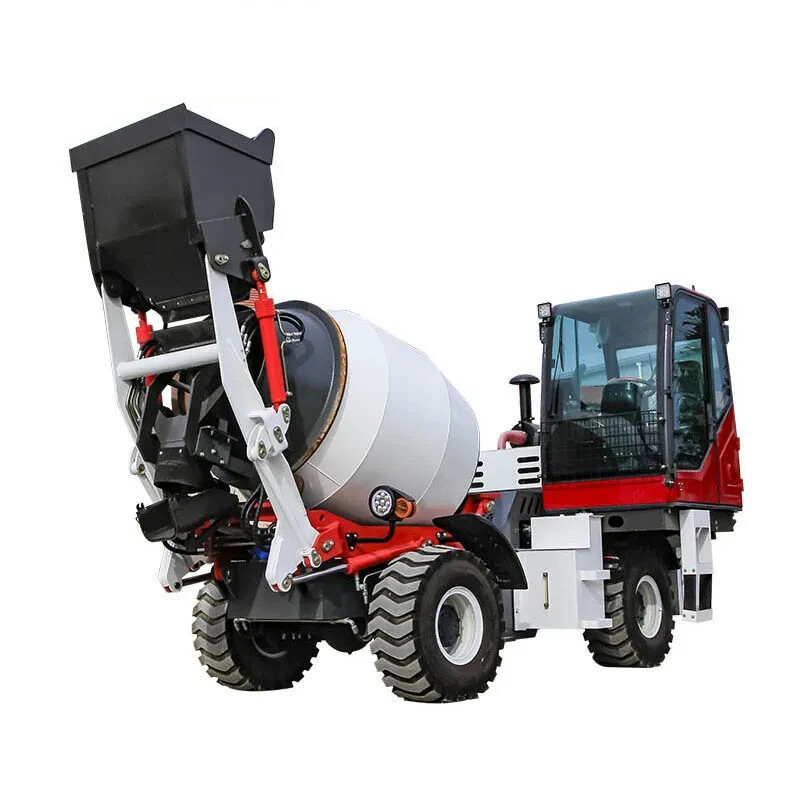

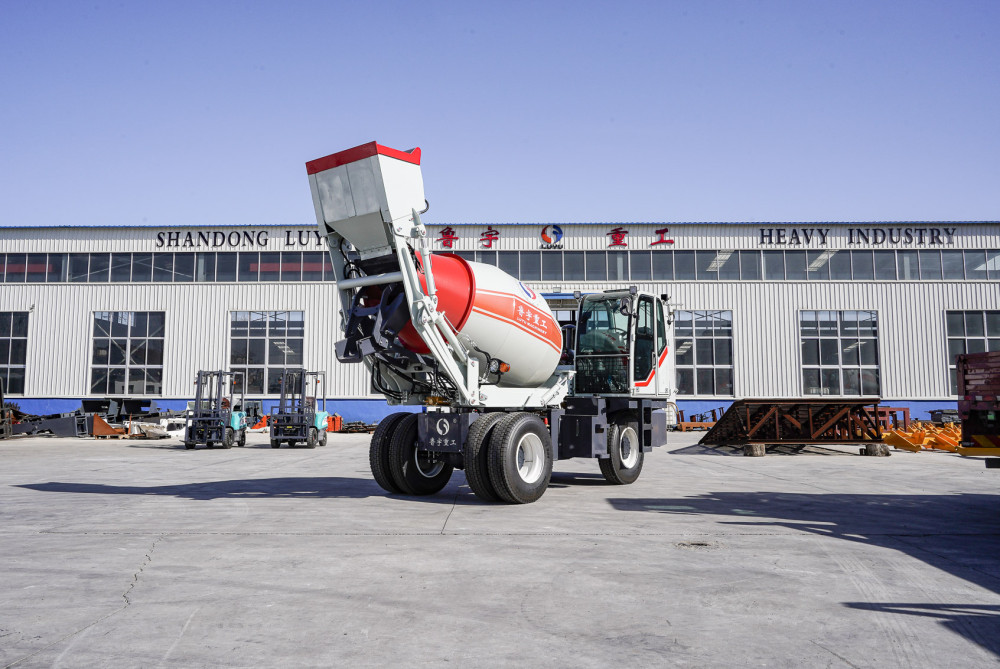

LY-1000 0.6 cbm Self loading Concrete Mixer is a small concrete mixing equipment that realizes the automation of the entire concrete production process from loading, adding water, mixing, unloading and transportation, making it a true multi-purpose machine. Provides a more efficient and convenient concrete treatment solution for construction sites.
Power42/33kW
Total weight3500kg
EngineYunnei490/Xinchai490
Bucket capacity0.15m³

LY-1000 0.6 cbm Self loading Concrete Mixer is a small concrete mixing equipment that realizes the automation of the entire concrete production process from loading, adding water, mixing, unloading and transportation, making it a true multi-purpose machine. Provides a more efficient and convenient concrete treatment solution for construction sites.

PARAMETERS

Power42/33kW
Total weight3500kg
  EngineYunnei490/Xinchai490
Bucket capacity0.15m³
Machine size(L*W*H)4800*2350*3080mm
Gearbox240 integral
Drive axleIsuzu bridge
Tires20.5-16
Wheelbase2100mm
Mixing capacity≥0.6m³
Reduction ratio1:24
Rotating speed≥15 laps/minute
Travel speed25km/h
Alex number traction type4*4

DETAILS

ADVANTAGES

Residential Construction Sites: LY-1000 0.6 cbm Self loading Concrete Mixer is often used on residential construction sites to prepare concrete for foundations, floors, walls and other building structures.

Commercial Construction Sites: Smaller commercial construction projects such as shops, office buildings, small warehouses, etc. often also require small concrete mixer trucks to supply concrete

Road repair and construction: These mixer trucks can be used for road repair, road work such as building small sidewalks, sidewalks or bike lanes

Landscape and garden works: In landscape design and garden works, concrete is needed to make walkways, courtyards, flower beds, garden decorations, etc.

Urban construction: Due to its compact size, LY-1000 0.6 cbm Self loading Concrete Mixer is suitable for narrow roads and limited spaces in cities, where it is usually difficult to accommodate large mixer trucks

Repair and remodeling projects: Small concrete mixer trucks are required to handle concrete repairs, wall additions, and other small-scale construction tasks in projects that repair and remodel existing buildings



LY-1000 0.6 cbm Self loading Concrete Mixer is suitable for all kinds of small building works and construction projects, especially when the space is limited or frequent movement is required, it has unique advantages. These work scenarios cover multiple application areas from residential construction to urban urban construction.


FAQ

Mixing capacity: LY-1000 0.6 cbm Self loading Concrete Mixer has a mixing capacity of 0.6 cubic meters. Although relatively small, it is suitable for small-scale projects such as small house construction, repairs, remodeling projects, etc.

Self-feeding system: Self-feeding is an important feature of this mixer truck. It is equipped with an automatic feeding system that can automatically put raw materials (such as cement, sand, aggregate) into the mixing barrel, reducing manual operation time and labor costs.

Mixing system: It has an efficient mixing system, which consists of a mixing bucket and a mixing blade. The mixing bucket can fully mix the raw materials while turning to prepare uniform concrete.

Transport Capacity: LY-1000 0.6 cbm Self loading Concrete Mixer can not only mix concrete, but also transport concrete directly from the mixing barrel to the construction site. This eliminates the need for an extra shipping step, increasing work efficiency.

Flexibility: Smaller in size, the LY-1000 0.6 cbm Self loading Concrete Mixer excels in narrow or limited height construction sites. It can easily access narrow roads or construction sites.

Raw material carrying: In addition to the mixing function, the LY-1000 0.6 cbm Self loading Concrete Mixer also has a bucket function. The bucket capacity is usually relatively small, but it is enough to load the required raw materials.

Scope of application: Suitable for various small construction projects, such as residential construction, commercial construction, landscape engineering, road restoration and sidewalk construction, etc.

OPERATION AND MAINTENANCE: Operated by a professional driver, but more automation may be introduced as technology advances. These mixer trucks require regular maintenance to ensure their performance and reliability.

Concrete Quality: Despite the small mixing capacity, the design of the mixing system ensures the homogeneity of the concrete, thus ensuring the quality of the building.
