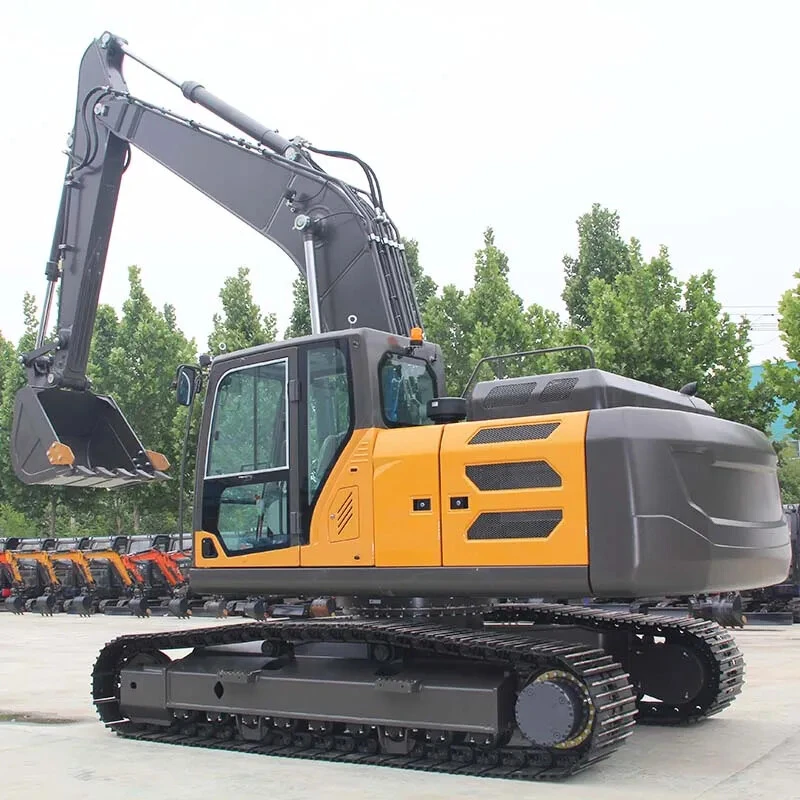

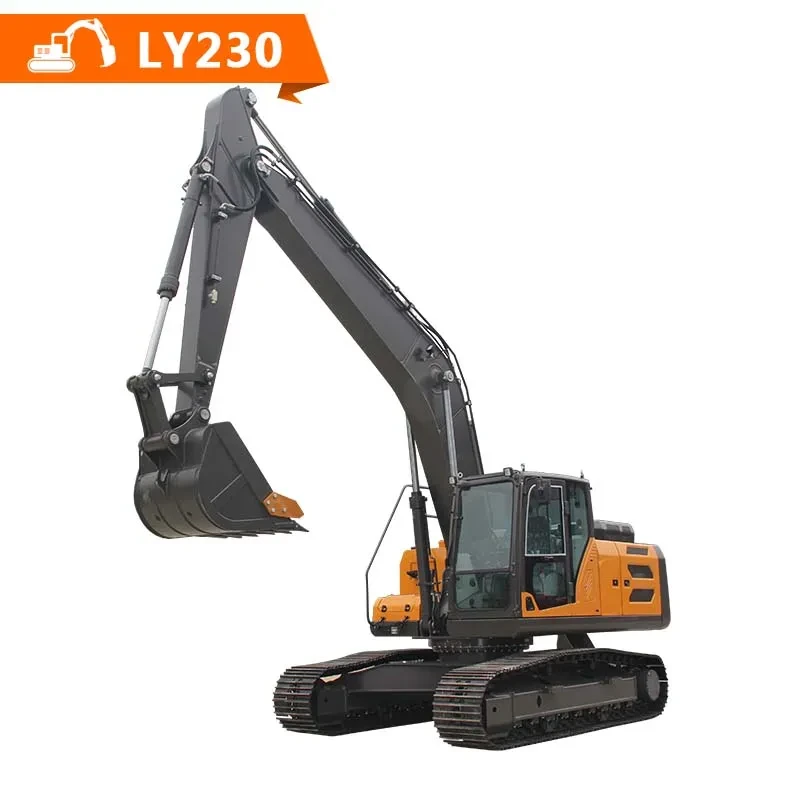

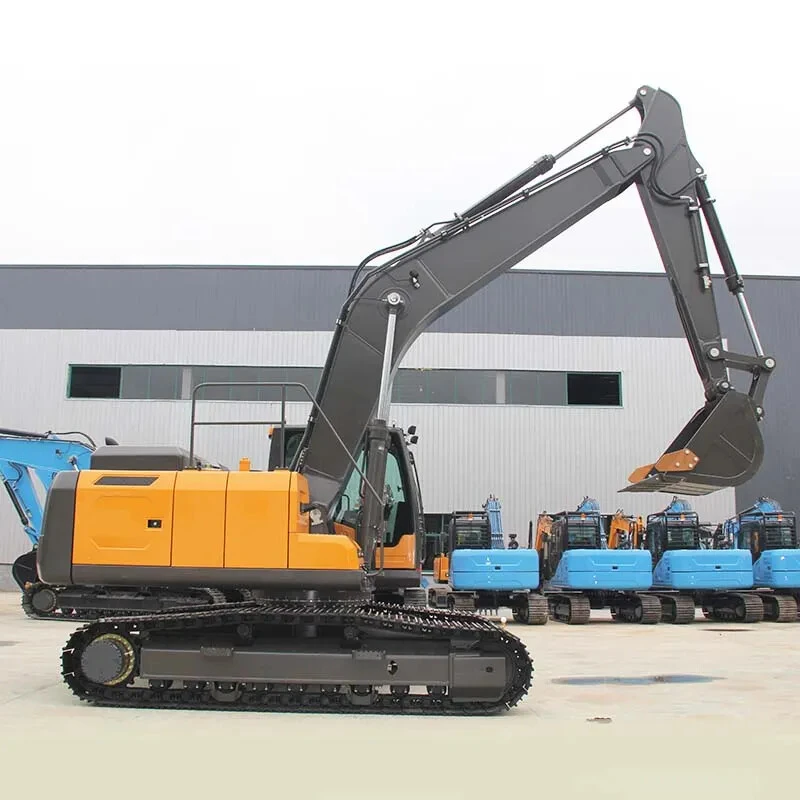

LY230 Crawler Excavators

Luyu Machinery adheres to the principles of excellent quality, good service, and low operating costs, optimizes the volume needs of dealers, and effectively increases market share. Its products are distributed in more than 20 countries, and it has won a reputation in the international market with its excellent technology and excellent products and services. The LY230 Crawler excavators are mid-sized machines. This excavator is easy to operate and features an intuitive control system. Your operators will be able to get started quickly and achieve precise control. We provide excellent after-sales service and support, including training, maintenance and spare parts supply, to ensure that you receive all-round support after purchase. We will give the greatest support to dealers and provide users with high-quality construction machinery solutions.

Model: LY230

Send Inquiry

Product Description

LY230 Crawler excavators are versatile construction machinery suitable for a variety of engineering projects and applications. Equipped with a Cummins engine of 124kW, it ensures efficient excavation capabilities and can easily handle various excavation tasks. LY230 Crawler excavators offer exceptional durability to handle heavy-duty use and harsh environments, resulting in a long service life. It adopts imported core accessories and supports a variety of attachments, including various types of buckets, hammers, digging rods, etc., to meet the needs of different engineering projects.


Product Specifications

ENGINE

Emission Standard

China Stage III

Make

CUMMINS

Model

QSB7-C166

Power /Rotation speed

124kw(169HP)@2050rpm

Number of cylinder

6

TRACK SYSTEM

Maximum Travel speed(high/low)

5.6/3.3km/h

Width of track shoe

600mm

Number of upper roller per side

2

Number of bottom roller per side

9

PERFORMANCE PARAMETER

Rock Bucket capacity

1.1m³

Swing speed

12rpm

Maximum Grade ability

30°

Maximum Bucket digging force

150KN

Maximum Arm digging force

110KN

Hydraulic system pressure

34.3Mpa

Ground pressure

46kPa

Machine weight

22500kg

Fuel tank

360L

Hydraulic oil tank

220L

Boom length

5700mm

Arm length

3800mm

MACHINE SIZE

Overall dimension (L*W*H)

9600mm*2990mm*3000mm

Height of cabin

3000mm

Track length on ground(Axle base)

3700mm

Track gauge

2390mm

Minimum Ground clearance

470mm

Min.slewing radius at front work device

3555mm

WORKING RANGE

Maximum Digging height

9410mm

Maximum Dumping height

6730mm

Maximum Digging depth

6480mm

Maximum Vertical digging depth

5925mm

Maximum Digging radius

9850mm


Product Features

1.The LY230 crawler excavator is an economic middle type excavator ,which matched CUMMINS engine with strong power and low noise and low consumption and environment protection.

2.Fitted imported brand main pump and valves etc.

3. Adopted imported driving motor and swing motor.

4. Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .

5.The professional structural parts and working mechanism , ensure the machine has reliability and durability .

6.The breaking pipeline equipped improve the working performance .

7.Installed luxury full seal cabin with A/C and LCD display and LED lights etc.

8. The humanized design , ensure the machine can comfortable operation and convenient maintenance.
