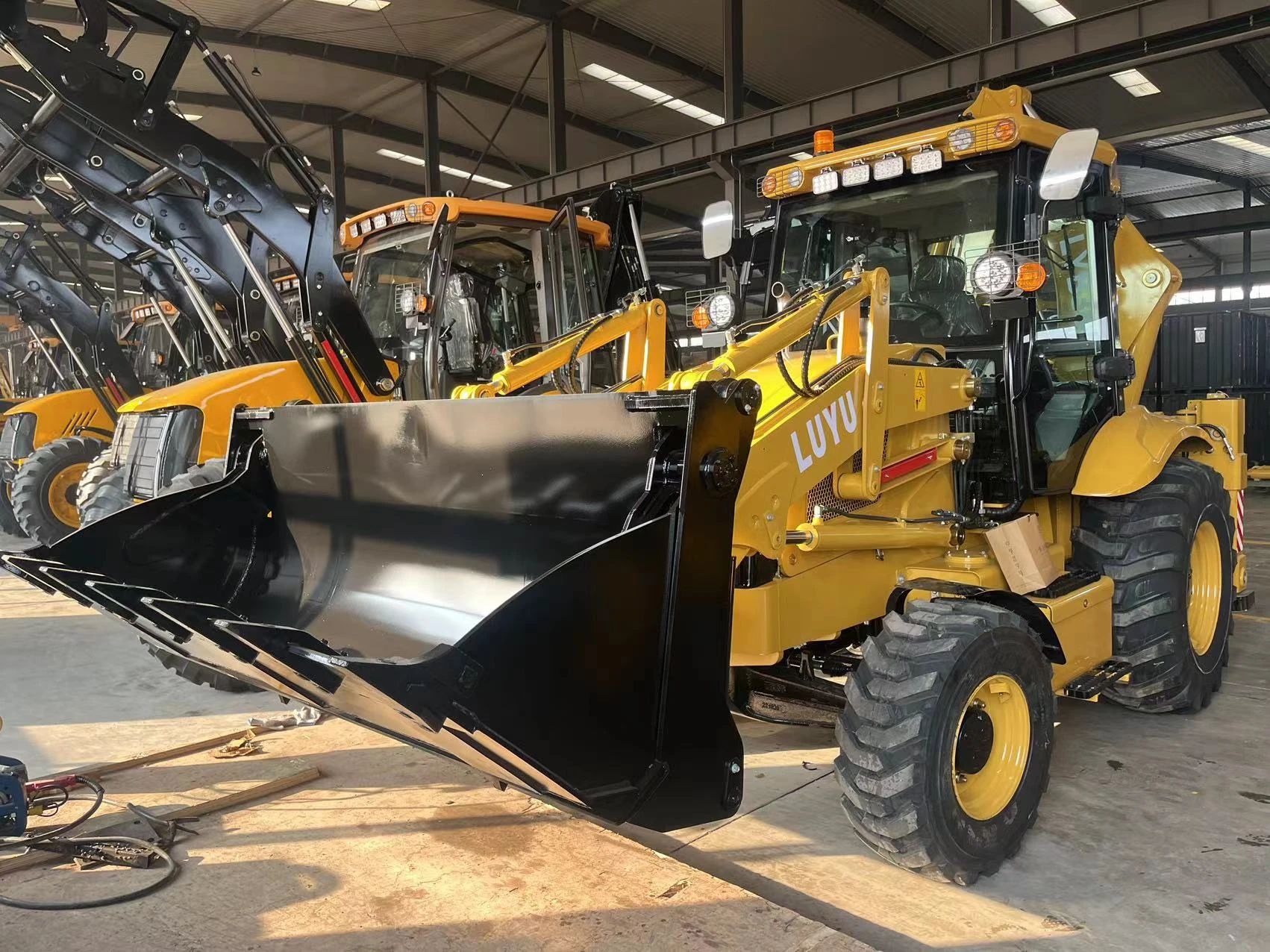

LYB-388 Center-pivot Backhoe Loader
LYB-388 Center-pivot Backhoe loader supports customization, you can tell us your work needs, our technical experts will modify the specification data according to your needs, so that the machine can reach the best working condition.
modelYudong4105
Total Weight(kg)8320
Rated Load(kg)2500
Dimensions(mm)6150*2350*3763

LYB-388 Center-pivot Backhoe loader supports customization, you can tell us your work needs, our technical experts will modify the specification data according to your needs, so that the machine can reach the best working condition.

PARAMETERS

Dimensions(mm)6150*2350*3763
wheelbase(mm)2200
wheel spacing(mm)1850/2000
Minimum ground clearance(mm)300
Minimum turning radius(mm)6580
System pressure (Mpa)28
Total Weight(kg)8320
Top speed(Km/h)22
Maximum grade ability(°)35
Maximum telescopic digging depth(mm)4000/5200
digger unloading height (mm)4500/5300
Maximum digger radius (mm)5800/7100
Maximum lifting height (mm)5800/7100
Maximum lifting height (mm)6060/7200
Bucket Capacity (m3)0.3
Excavator rotation angle (°)190
Maximum unloading height (mm)2742
Maximum unloading distance (mm)1062
Bucket capacity (m3)1
Rated load (KG)2500
modelYudong4105
Typeturbo
Rated power (KW)85
Rated speed (r/min)2400
Number of cylinders - inner diameter4-105
gearboxFixed shaft power shift
Number of gearsbefore 2 after 2
torque converterYJ280
Typewheel side reduction axle
Specification14-17.5/19.5L-24
service brakeAir-cap oil caliper disc brake
Parking brakehandbrake


DETAILS

ADVANTAGES

Backhoe loader is a construction machine used for excavation work on various terrains. It is also commonly known as a backhoe loader, excavator, loader, or front loader. LYB-388 Center-pivot Backhoe loader is a medium loader with a weight of about 2.5 tons. It adopts a center slewing structure with a loading hopper and a backward dumping hopper. The loader is usually composed of cab, engine, hydraulic system, transmission system and loading device, etc.

Luyu loader is the most potential construction machinery manufacturer and supplier in China. Luyu loader independently designs and develops more than 100 new products to meet the needs of users and provide users with one-stop service. Help users open up the market with high quality and cheap price, reduce the buyer's capital risk and investment cost, LYB-388 Center-pivot Backhoe loader is one of the latest researched and developed equipment, its performance is 20% higher than other brands, and it has good performance Maneuverability, stability and handling that count in any work environment.

A swivel seat in the cab allows the operator to control both loading and digging functions.

A backhoe loader is more versatile than an excavator and can do some smaller jobs well, while having a front-loading bucket to get the job done more efficiently

LYB-388 Center-pivot Backhoe loader supports customization, you can tell us your work needs, our technical experts will modify the specification data according to your needs, so that the machine can reach the best working condition

FAQ

Center-pivot design: LYB-388 Center-pivot Backhoe loader has a center-pivot design, so that the loading bucket and unloading bucket can rotate on one axis, which improves the efficiency and accuracy of loading and unloading.

Versatility: The backhoe loader is equipped with a variety of loading buckets and digging buckets to adapt to different operating needs. It can perform both loading and carrying operations as well as digging and excavation, increasing the machine's versatility and flexibility.

Efficient loading capacity: LYB-388 Center-pivot Backhoe loader has a large loading capacity and unloading height, which can quickly and efficiently complete loading and unloading operations and improve work efficiency.

Good mobility: The loader adopts a wheel structure and has excellent maneuverability. It can turn and move flexibly in a narrow working space, and is suitable for urban construction and operations in narrow areas.

Stability and reliability: LYB-388 Center-pivot Backhoe loader has a stable structure and a solid chassis design, which can maintain stable operation under different terrains and working conditions. It adopts high-quality hydraulic system and transmission system, which has strong load capacity and reliability.

Easy to operate: The cab design of LYB-388 Center-pivot Backhoe loader conforms to ergonomics, and the operation is simple and convenient. The driver can control the movement and loading and unloading actions of the loader through the joystick and pedals, which improves the accuracy of the operation and the comfort of the operation.

Good vision and safety: The cab of the loader is designed with a large area of glass windows, which provides a good vision and enables the driver to clearly observe the working environment and operating area. In addition, the loader is equipped with safety equipment such as seat belts, anti-slip ladders and roll cages to ensure the safety of the driver.
