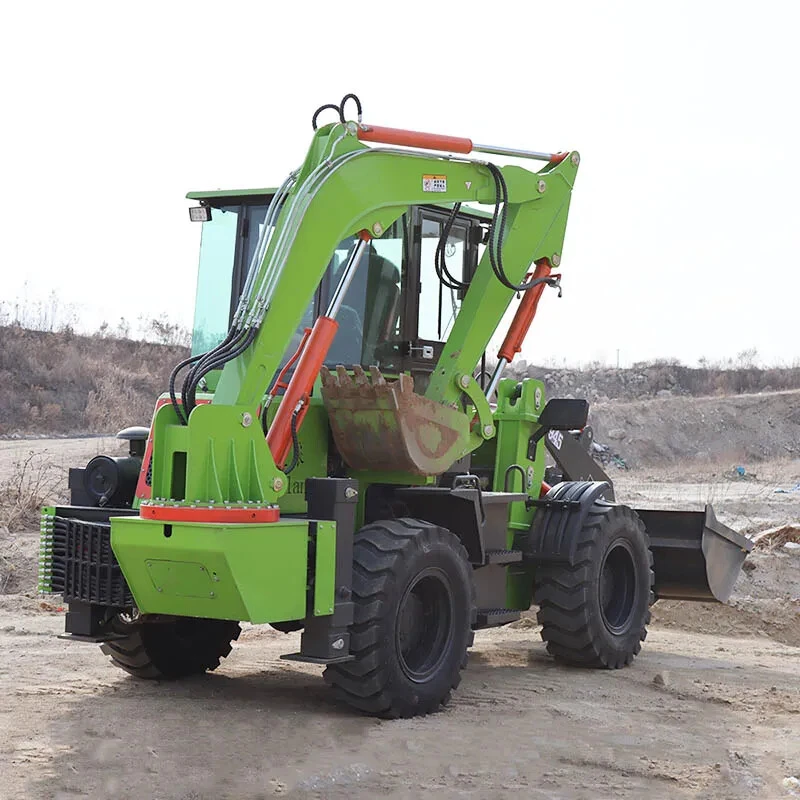

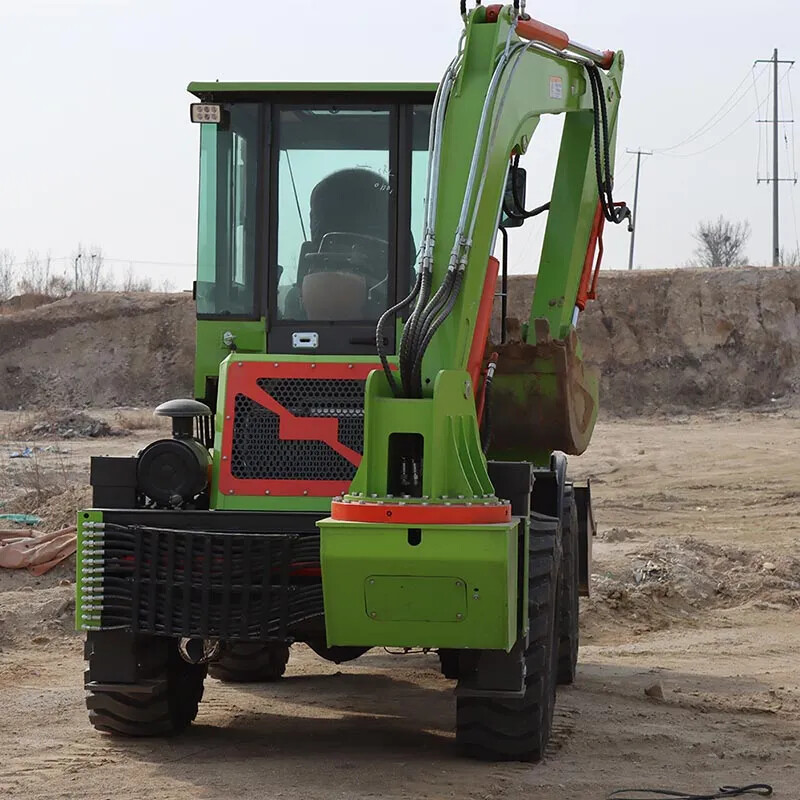

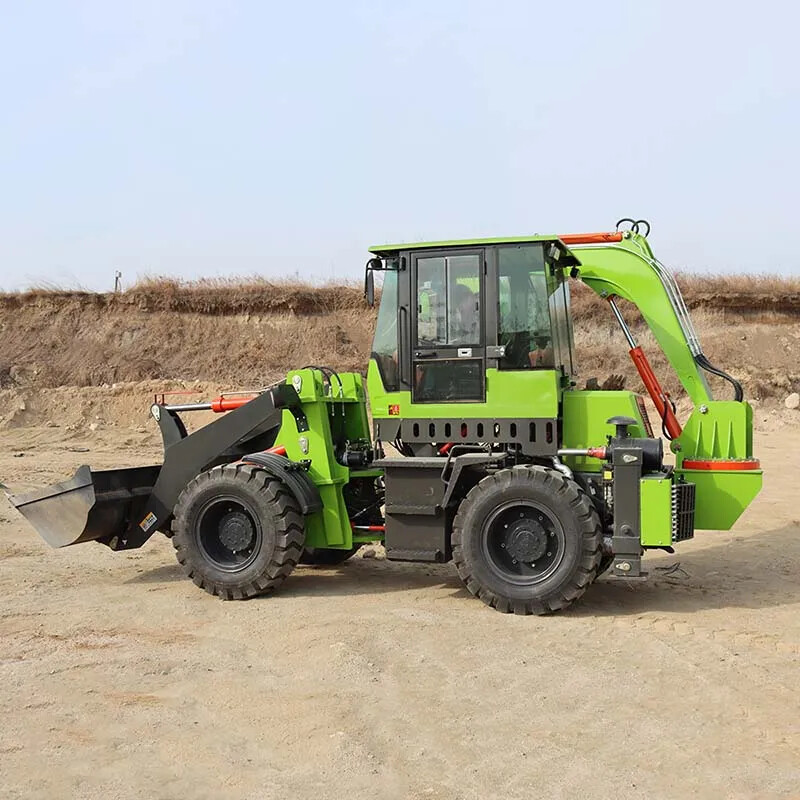

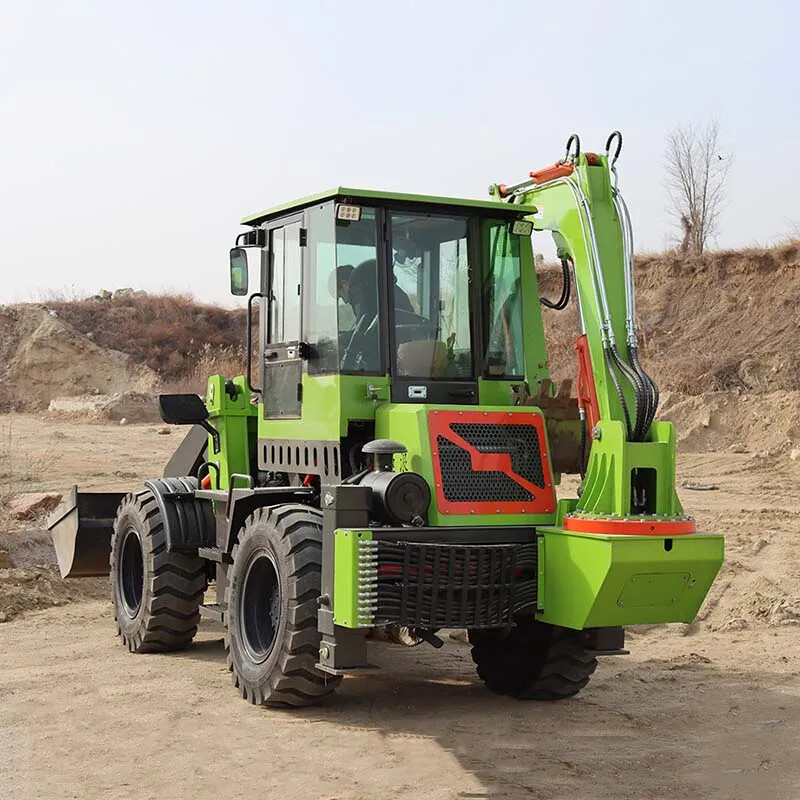

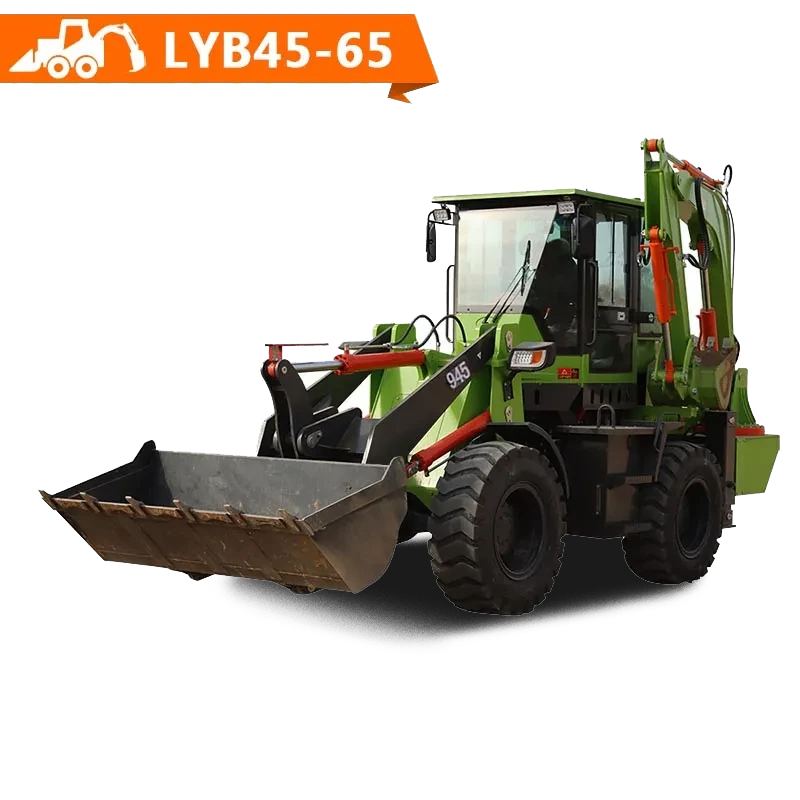

LYB45-65 Articulated Backhoe Loader
The LYB45-65 Articulated Backhoe loader has a wide range of applications, and equipped with different accessories, it can complete many tasks, increase the utilization rate of the machine, and reduce costs. By renting and selling backhoe loaders, you can increase your market share and gain more customers.
EngineYudong4105
Total Weight(kg)8000
Rated(kw)85
Dimensions7000*2200*2900

The LYB45-65 Articulated Backhoe loader has a wide range of applications, and equipped with different accessories, it can complete many tasks, increase the utilization rate of the machine, and reduce costs. By renting and selling backhoe loaders, you can increase your market share and gain more customers.

PARAMETERS

Overall dimensions
Dimension(mm)7000*2200*2900
Wheelbase(mm)2720
wheel tread(mm)1700
Minimum Ground Clearance(mm)320
Performance Parameters
System pressure(Mpa)28
Weight of the whole machine(kg)8000
Maximum speed(Km/h)35
Maximum climbing capacity(°)35
Minimum turning radius(mm)4300
Partial parameters of excavator
Maximum excavation depth(mm)3000
Maximum excavation radius(mm)4800
Maximum excavation height(mm)5600
Excavation unloading height(mm)4100
Bucket width(mm)60
Excavator rotation angle(°)360
Steering System
FormFully hydraulic steering
Steering angle(°)38
ModelYudong 4105 turbo
FormTurbocharged
Power Rating(KW)85
Rated speed(r/min)2400
cylinders-inner diameter4-105
Drivetrain
TransmissionPowershift
Number of gearsFront 2 and back 2
Torque converter model280 split high and low speed
Axle
ModelLarge wheel side bridge
Tyre
Specification16/70-20
Braking systemBrake disc brake
Parking brakeManual brake

The above are the specifications and parameters of the LYB45-65 Articulated Backhoe Loader. The values here have been adjusted to meet user needs. As a manufacturer, Luyu Machinery supports customization. The vehicle specifications can be adjusted according to user needs, with optional air conditioning, telescopic arm, side shift function, and quick change connector. If you need to purchase a backhoe loader in bulk, we will provide maximum support.

DETAILS

ADVANTAGES

Excavation: LYB45-65 Articulated Backhoe loader can be used to excavate sand and other foundation materials with an excavation bucket. This is very useful for engineering tasks such as preparing construction sites, excavating foundation pits, and excavating ditches.

Loading: Loading is one of the main tasks of a backhoe loader. Use a bucket to load the excavated material into the bucket and then transport it to the desired location, such as a truck, garbage truck, or storage area.

Unloading: Backhoe loaders can also be used to unload construction materials, garbage, and other materials from carrier vehicles to designated locations, such as construction sites or garbage dumps.

Leveling: The LYB45-65 Articulated Backhoe loader can be equipped with a leveling bucket and can be used to level surfaces such as roads, parking lots, and building foundations, ensuring surface smoothness.

Snow clearing: During the snow season, backhoe loaders can be used to clear snow, load snow piles onto trucks or move them away, ensuring smooth traffic.

Garbage disposal: At the garbage disposal site, LYB45-65 Articulated Backhoe loader can be used to unload and compact garbage, load garbage into garbage trucks, and support garbage disposal and recycling.

 The LYB45-65 Articulated Backhoe loader has a wide range of applications, and equipped with different accessories, it can complete many tasks, increase the utilization rate of the machine, and reduce costs. By renting and selling backhoe loaders, you can increase your market share and gain more customers.

Backhoe loaders come in several different names, including backhoes, excavators, and loaders. LYB45-65 Articulated Backhoe loaders are some of the most common heavy-duty equipment used in construction activities. The backhoe loaders produced by Luyu Machinery are known for their excellent quality and versatility, focusing on the production of construction machinery and have a wide range of applications in the engineering and construction industry, with their high efficiency The multifunctional and reliable features provide users with excellent performance and value. Whether you purchase a backhoe loader for rental or sales, Luyu Machinery will provide the greatest support.

The backhoe loader is the most common machinery in the engineering and construction industry, which is applied to different work tasks according to different sizes and weights. The LYB45-65 Articulated Backhoe loader mainly consists of three different mechanical combinations, including excavators, buckets, and loaders. The core of a backhoe loader is the loader, which can reach a maximum speed of 35km/h due to its wheeled design. It is equipped with a turbocharged diesel engine, steering control device, and sturdy tires, allowing it to be operated in both road and off-road terrain. The excavator is one of the main components of a backhoe loader, consisting of a boom, a stick, and a bucket. It is a mechanical arm connected to two hydraulic arms connected to its back. The digging bucket is located behind the backhoe loader, and its function is different from that of the bucket. It is mainly used to load materials, and in conjunction with the speed of wheel movement, it moves materials from one location to another. Save time, reduce costs, and improve work convenience.

FAQ

The overall weight of the LYB45-65 Articulated Backhoe Loader is 8 tons, which can be classified as a medium-sized equipment. The medium-sized backhoe loader has a larger loading capacity and stronger power, and can complete small to medium-sized work tasks. The scope of work will be wider. If you purchase the LYB45-65 Articulated Backhoe Loader for leasing or sales, it will be one of your best-selling selling points.

The biggest advantage of the LYB45-65 Articulated Backhoe Loader is that it can complete multiple work steps on the same device. It only requires rotating the seat to operate the excavator and bucket, reducing the time for drivers to switch devices and transport. Due to its versatility and wide application, it can handle different tasks and meet the needs of different industries.
