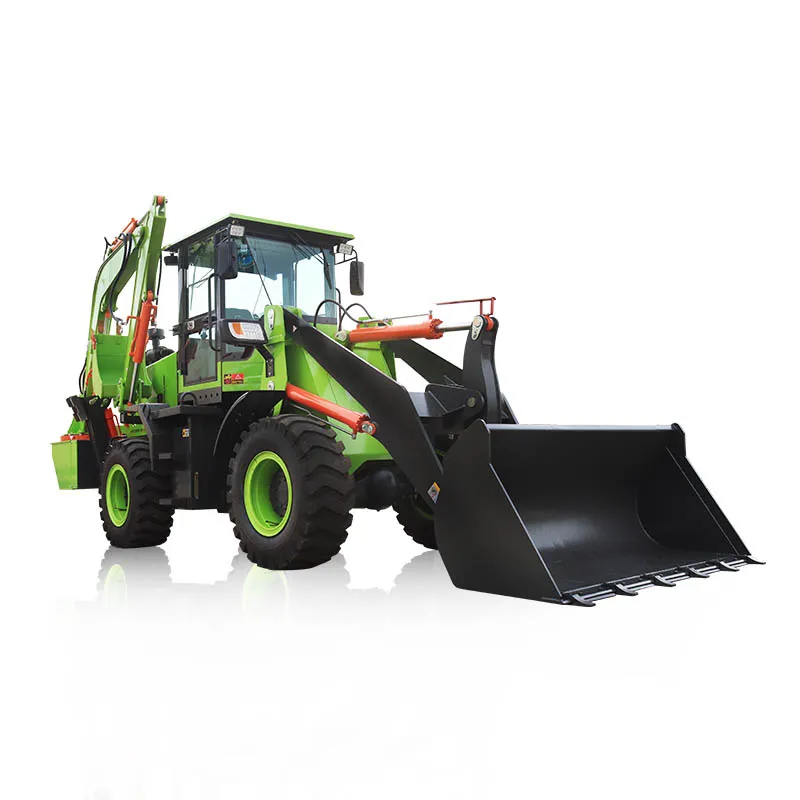

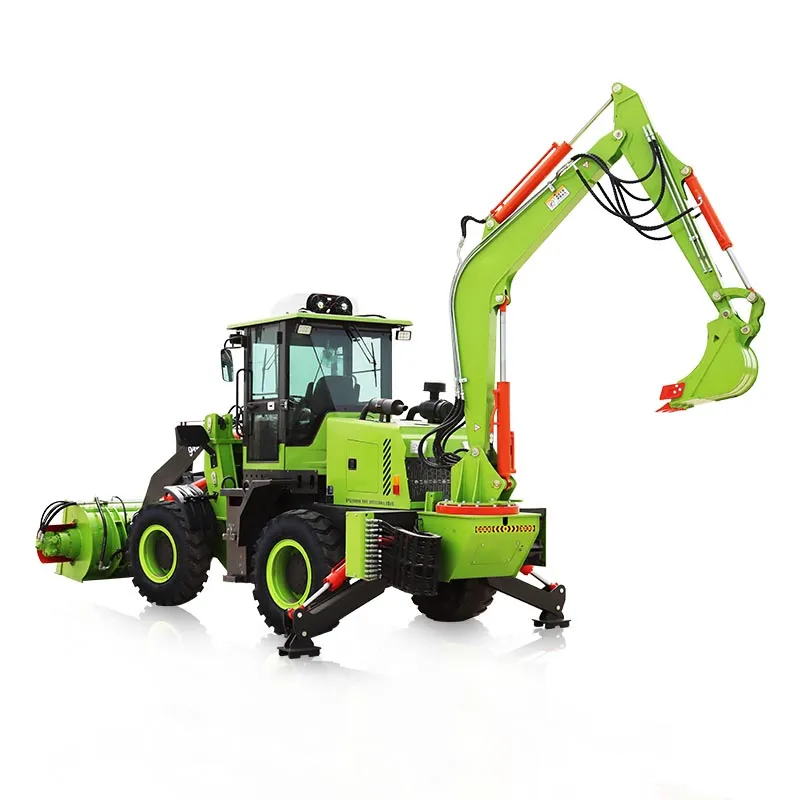

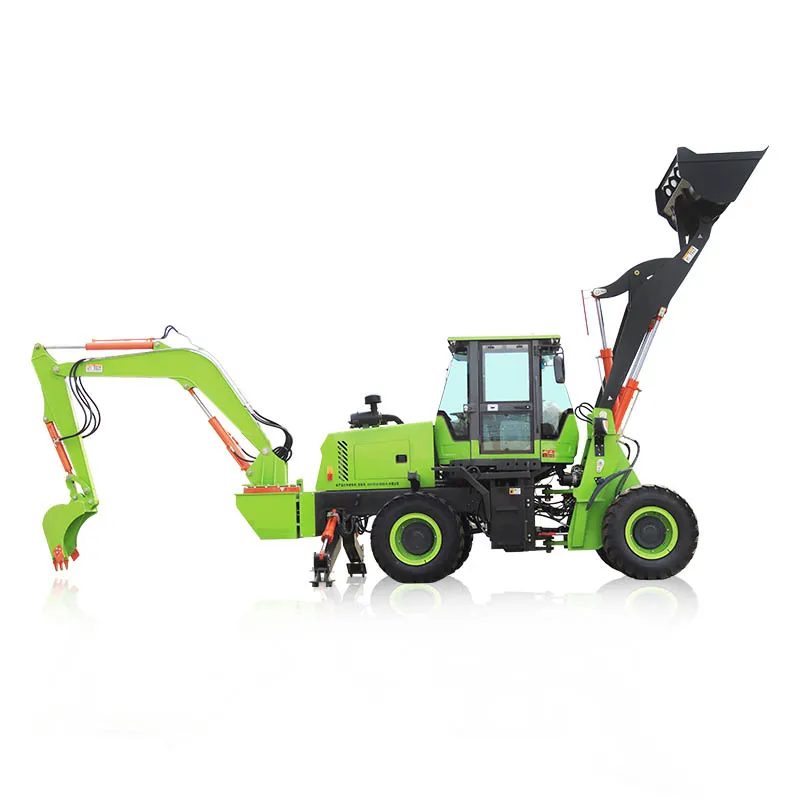

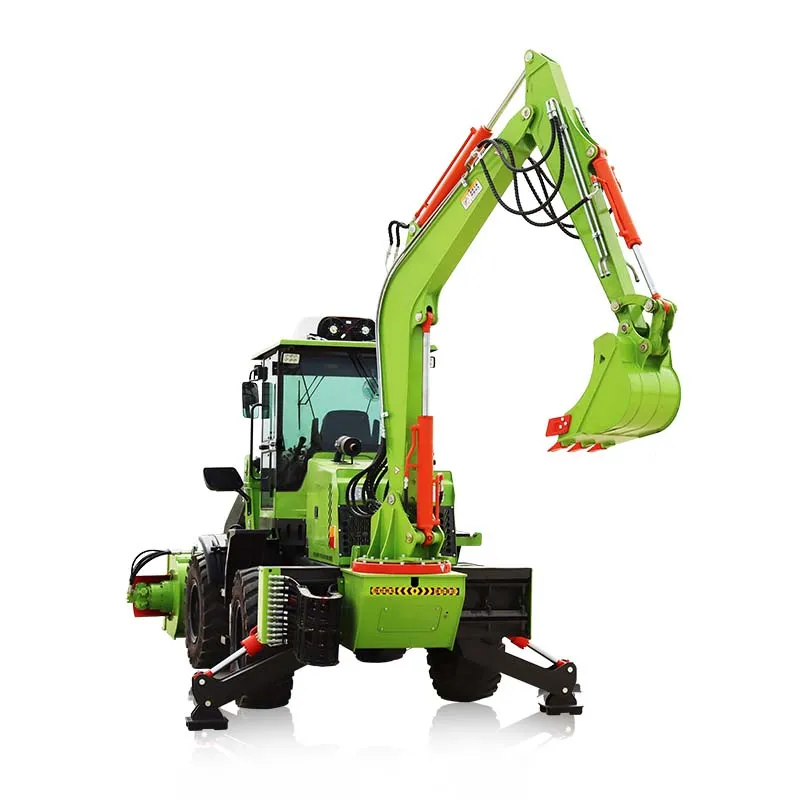

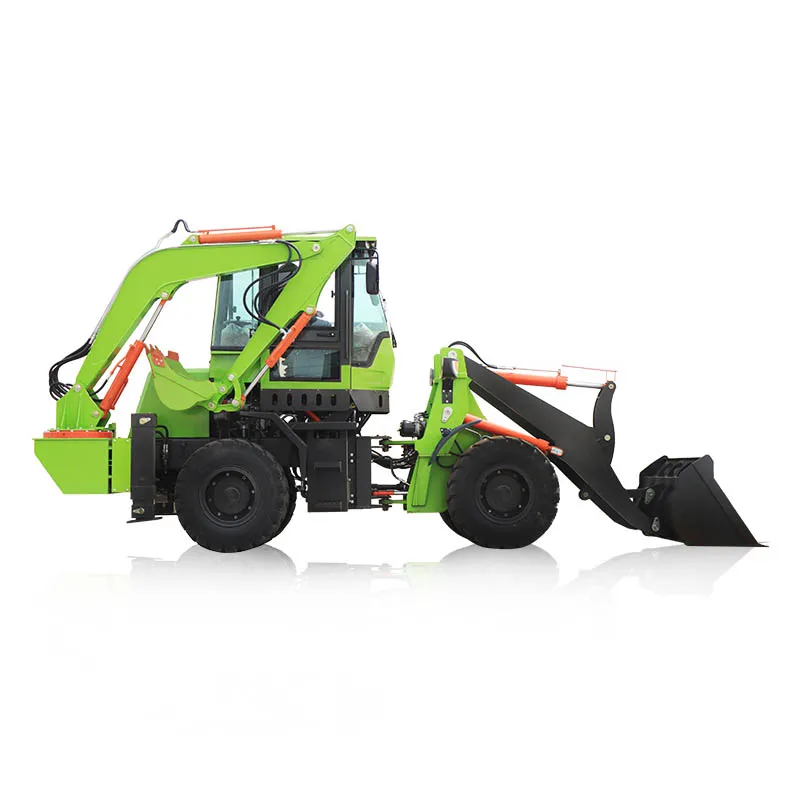

LYB42-45 Articulated Backhoe Loader
The LYB42-45 articulated Backhoe loader uses Yunnei 4100 turbo The engine and excavator parts can be equipped with mechanical hydraulic control or electromagnetic hydraulic control. X legs are standard.
ModelYunnei 4100 turbo
Total Weight(kg)5000
Rated(kw)65
Dimensions6500*1850*2700

The LYB42-45 articulated Backhoe loader uses Yunnei 4100 turbo The engine and excavator parts can be equipped with mechanical hydraulic control or electromagnetic hydraulic control. X legs are standard.

PARAMETERS

Overall dimensions
Dimension(L*W*H)(mm)6500*1850*2700
Wheelbase(mm)2240
Wheel track(mm)1480
Min. Ground Clearance(mm)250
Min. turning radius(mm)4000
Performance Parameters
System pressure(Mpa)28
Overall weight(kg)5000
Max. speed(km/h)30
Max. climbing capacity(°)30
Excavation parameters
Max. digging depth(mm)2000
Excavation unloading height(mm)3100
Max. digging radius(mm)3700
Bucket width (mm)50
Hopper capacity(m³)0.2
Excavator slewing angle(°)360
Loading parameters
Max. unloading height(mm)3200
Max. unloading distance(mm)800
Loading bucket capacity(mm)0.8m3
bucket width (mm)1800
Engine
ModelYunnei 4100 turbo
TypeTurbocharged
Rated(kw)65
Rated speed(r/min)2400
Number of cylinders - bore4-100
transmission system
TransmissionFixed-axis powershift
Number of gearsFront 2 and back 2
Torque converter265 Overall high and low speed
Axle
TypeSmall Hub Reduction Axle
Tires
Specification20.5-16
Travel brakeAir top oil caliper disc brake
Parking brakeHandbrake
Oil volume
Fuel Tank(L)100
Hydraulic oil tank(L)100

The above are the specifications of the LYB42-45 articulated Backhoe loader. The vehicle can be equipped with additional configurations, optional engines, and hundreds of attachments to choose from. It can be used in different working environments to improve the machine's versatility, efficiency, maneuverability, and Safety and adaptability.


DETAILS

ADVANTAGES

Construction Sites: On construction sites, the LYB42-45 articulated Backhoe loader is used to excavate soil, load construction materials, unload materials and clean up the site. It can be used for digging foundation pits, transporting concrete, loading sand and soil, etc.

Road Construction: In road construction projects, the LYB42-45 articulated Backhoe loader can be used for excavation, smoothing roadbeds, loading asphalt and unloading road construction materials. It can be used to build roads, highways and city streets.

Mining Industry: In the mines and mining industry, LYB42-45 articulated Backhoe loader is used to dig ore, load trucks, unload ore and process ore. It can be used to mine coal, iron ore and gold ore.

Agriculture: In agriculture, backhoe loaders are used to move produce, load compost, turn soil, and unload agricultural materials. For example, it can be used to move grain, compost and hay.

Port Terminal: In port terminals and logistics centers, it can be used to load and unload containers, move goods, and clean the terminal area. Can be used to unload cargo from cargo ships and load it onto trucks or vans.

Garbage disposal: In garbage disposal sites, LYB42-45 articulated Backhoe loader is used to unload and compact garbage, and load garbage to garbage trucks. For example, it can be used to manage municipal waste disposal and waste recycling.

River Banks and Levee Works: Can be used to maintain and repair river banks, embankments and flood control works. It can be used to clear river channels, dig trenches and load sediment.

Snow and Ice Clearance: During the snow season, backhoe loaders are used to clear snow from roads, parking lots, and airport runways. It can load snow piles onto the truck or move them away.

FAQ

Articulated connection design: The body design of the LYB42-45 articulated Backhoe loader adopts an articulated connection, allowing the front and rear bodies to rotate or articulate at the connection points. This design provides excellent maneuverability, allowing it to turn and maneuver in tight workspaces and adapt to a variety of terrains.

 Versatility: Versatility makes the LYB42-45 articulated Backhoe loader a very flexible device. The front and rear are composed of buckets and digging buckets. The front bucket can excavate soil, sand, etc., and the bucket can be used to move the excavated materials. Materials are loaded and transported to designated locations, and attachments can be quickly replaced, including hundreds of attachments such as buckets, excavation arms, forks, planers, clamps, etc. of different types and capacities.

 High loading capacity: The backhoe loader can be equipped with a large-capacity bucket, which can load a large amount of materials at one time, saving labor costs, improving work efficiency, and reducing the number of handling times. This reduces operating costs and fuel consumption, and reduces wear and tear on equipment.

 Driving comfort: Equipped with a spacious and comfortable cab with comfortable seats, advanced joysticks and instrument panel. This provides a good working environment for the operator, and air conditioning can be optional, which will change the price of LYB42-45 articulated Backhoe loader. The driver can work in a more comfortable environment, thereby improving work efficiency.
