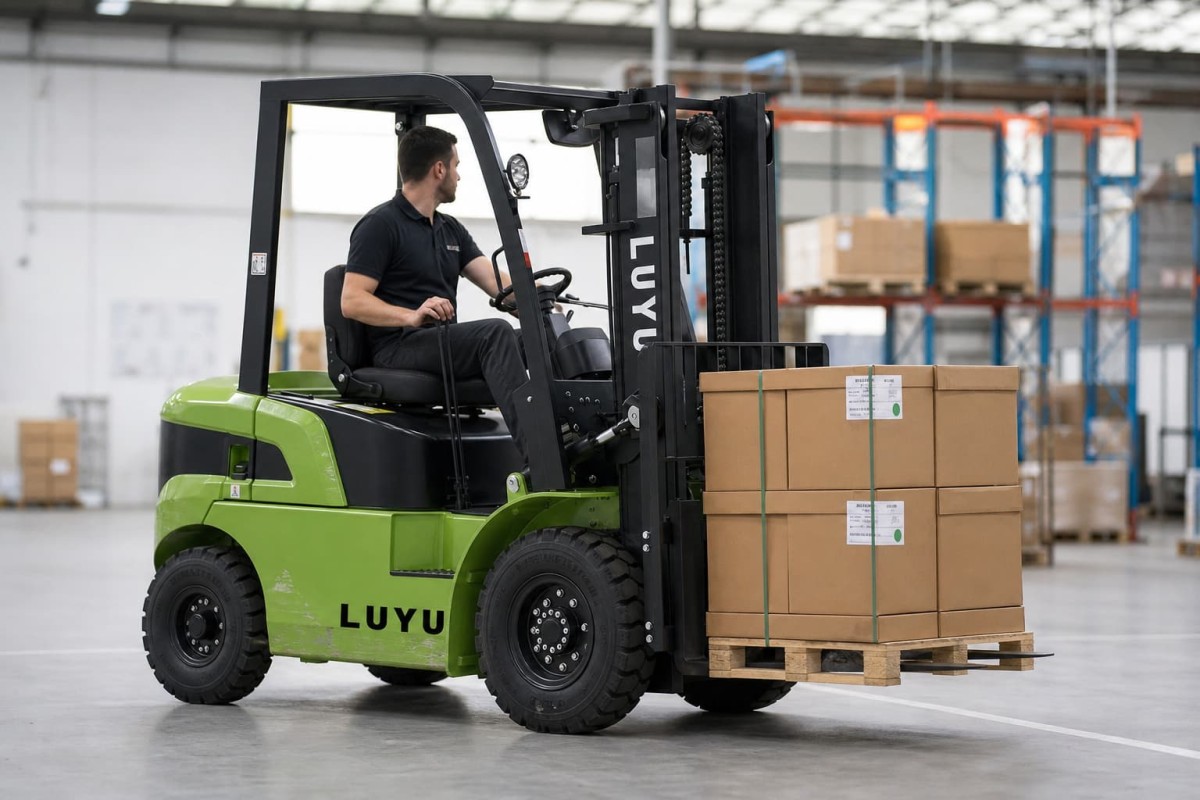

CPD25 2.5Ton Electric Forklift
CPD25 2500kg electric forklift adopting a number of new technologies and new structures, the shape is streamlined design, beautiful and beautiful.
Rated Capacity2500kg
Load center500mm
Lifting Height3000mm
Size1070x122x40mm

CPD25 2500kg electric forklift adopting a number of new technologies and new structures, the shape is streamlined design, beautiful and beautiful.

PARAMETERS

CPD25D

Rated Load CapacityKG2500
Load Centermm500
Lifting Height (A2)mm3000
Free lifting Height (A4)mm115
Fork Size(LxWxT)mm1070X122X40
Mast Tilting Anglemm6 12
Length(without fork)(B4)mm2545
Overall Width(C1)mm1164
Mast Hight After Mast Fall (A3)mm2000
Lift Height(A1)mm4000
Overhead Guard Height (A5)mm2150
Turning Radius(C2)mm2240
Front Overhang(B2)mm455
Min.Right Angle Channel Widthmm2280
Wheelbase(B3)mm1600
Track Frontmm970
Track Rearmm970
Ground Clearance Mastmm115
Ground Clearance Car Centermm170
Speed Travelkm/h17 19.5
Speed Liftingmm/s570
Speed Loweringmm/s450
Max.Drawbar PullKG1350 1000
Max.Gradeability%17/18
Front Tire
7-12-12
Rear Tire
6-9-10
Total WeighKG3640
BatteryV/AH76.8
Traction MotorKw12
LiftingKw13



1. Microcomputer-controlled AC traveling hydraulic mode;

2. Adopting a number of new technologies and new structures, the shape is streamlined design, beautiful and beautiful;

3. Compact, maneuverable and flexible; absorbing the various advantages of modern forklift technology;

4. The performance of the whole machine and the manufacturing technology have reached the domestic first-class level:

5. Comfortable maneuvering, ergonomic driving environment;

6. Hydraulic power steering;

7. Regenerative braking:

8. Wide rubber mats, low on-board step space design;

9. A variety of domestic and imported batteries complying with European and American standards are available;

10. Reinforced gantry steel is sturdy and durable to meet the use in various environments.



DETAILS

ADVANTAGES

1. Microcomputer-controlled AC traveling hydraulic mode;

2. Adopting a number of new technologies and new structures, the shape is streamlined design, beautiful and beautiful;

3. Compact, maneuverable and flexible; absorbing the various advantages of modern forklift technology;

4. The performance of the whole machine and the manufacturing technology have reached the domestic first-class level:

5. Comfortable maneuvering, ergonomic driving environment;

6. Hydraulic power steering;

7. Regenerative braking:

8. Wide rubber mats, low on-board step space design;

9. A variety of domestic and imported batteries complying with European and American standards are available;

10. Reinforced gantry steel is sturdy and durable to meet the use in various environments.
