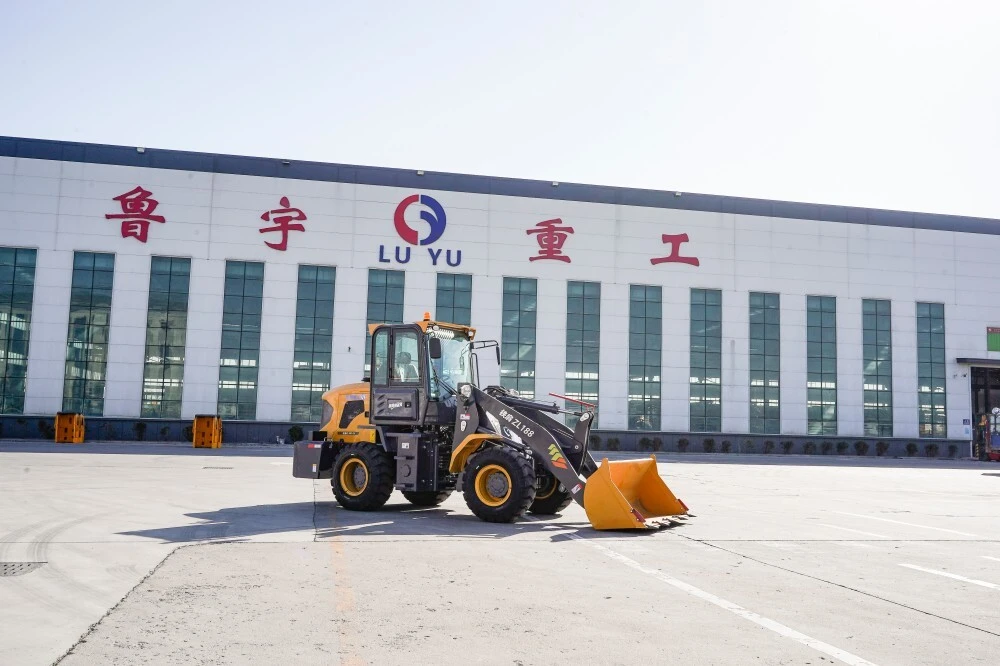

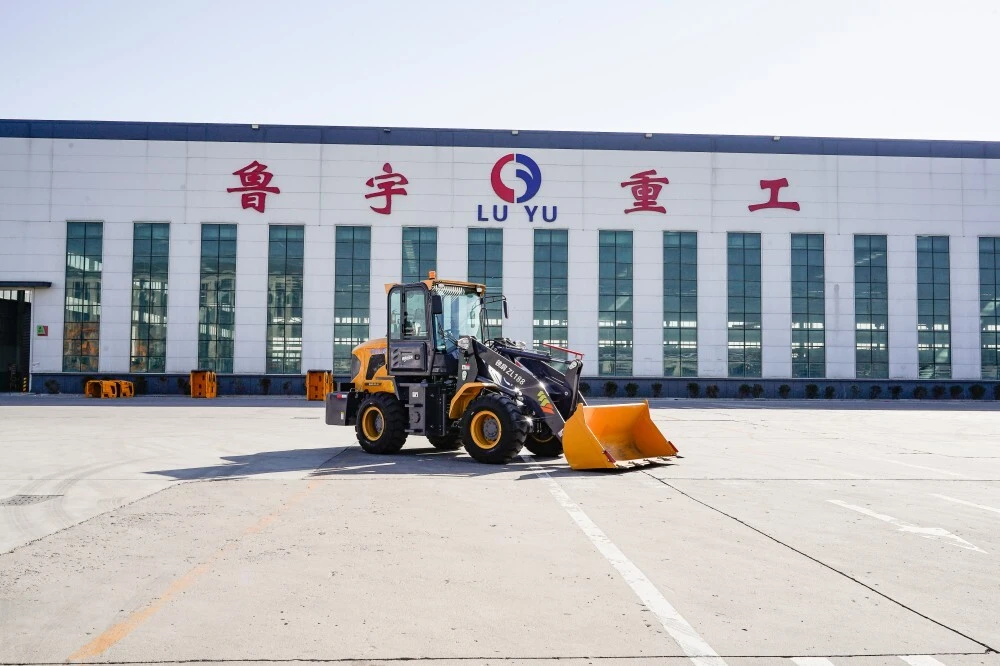

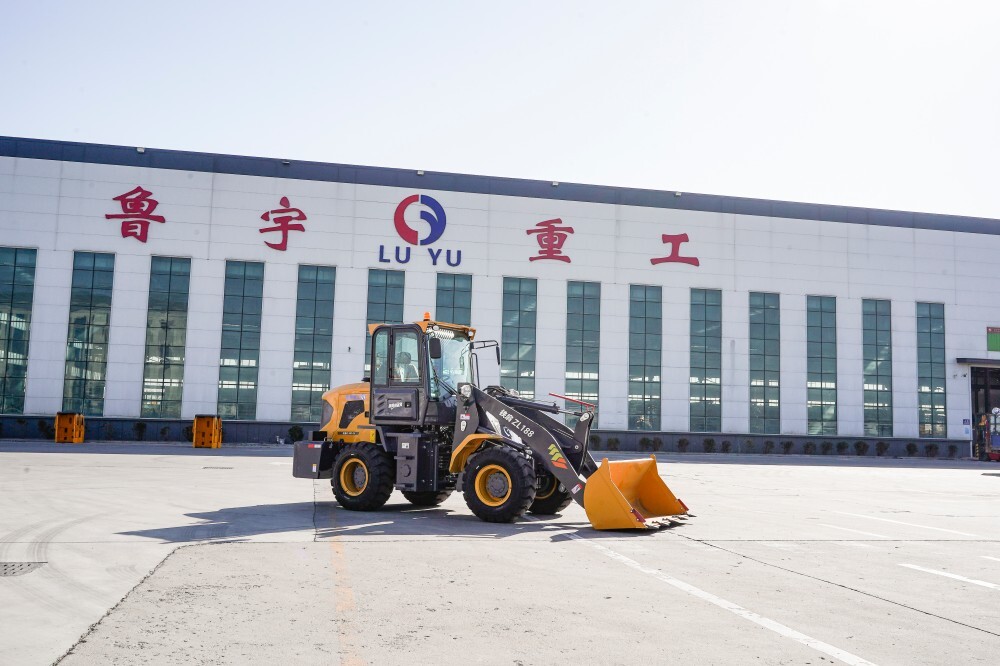

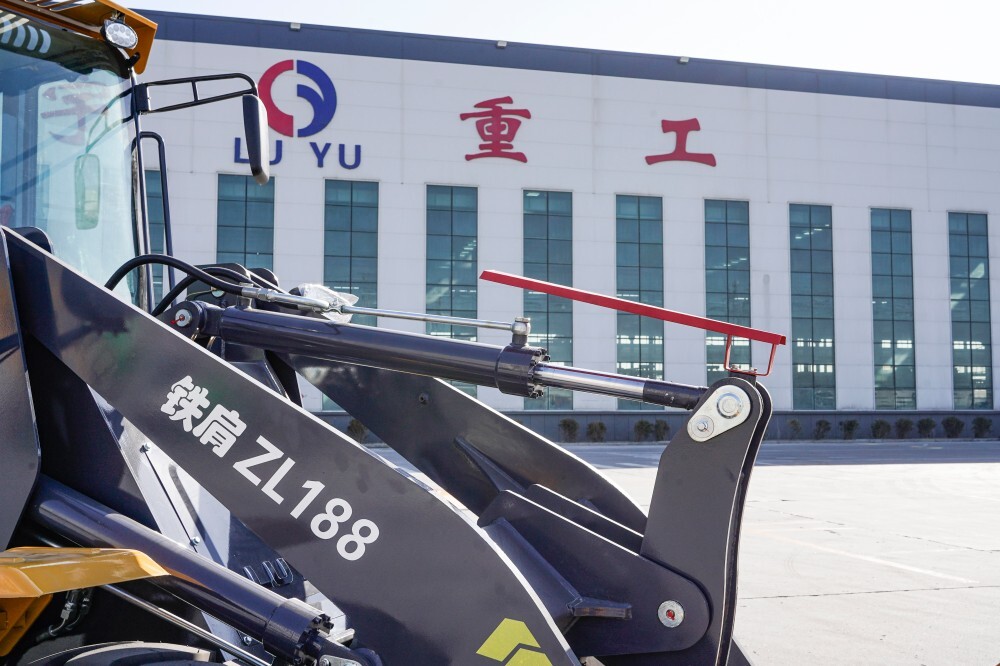

LT188 Wheel Loader
The layout of the loader is optimized according to engineering mechanics, the center of gravity of the whole vehicle is moved backward, and the center of gravity can still fall on the front axle at the maximum load. Stability enhancement.
EngineYN38T(76KW/103HP)
Rated load2200kg
Dumping height3500mm
Bucket capacity1m³

The layout of the loader is optimized according to engineering mechanics, the center of gravity of the whole vehicle is moved backward, and the center of gravity can still fall on the front axle at the maximum load. Stability enhancement.

PARAMETERS

EngineYN38T(76KW/103HP)
Rated load2200kg
Dumping height3500mm
Bucket capacity1m³
Tire16/70-20
Unloading distance1070mm
Total weight5700kg
Size(L*W*H)6590*2080*3020mm
Bucket width 2000mm
Arm thickness30mm
Boom center distance960mm
Cylinder size55/90mm
Cylinder size70/110mm
Thickness of upper plate30mm
Hinge plate40/30mm
Wheel track1555mm
Wheel base2365mm
Min.ground clearance310mm


Structural layout optimization. The layout of the loader is optimized according to engineering mechanics, the center of gravity of the whole vehicle is moved backward, and the center of gravity can still fall on the front axle at the maximum load. Stability enhancement.

 Increase the fuel tank The fuel tank is increased to 110L, which is 30% larger than the fuel tank of about 80L in the same industry, which can meet the needs of a day's work. Increase the fuel tank inspection port to facilitate the maintenance of the fuel tank. The hydraulic oil filter is lengthened, the mesh is finer, and the built-in strong magnet can

effectively filter impurities. The use of a circular oil standard reduces problems such as damage caused by harsh working conditions.

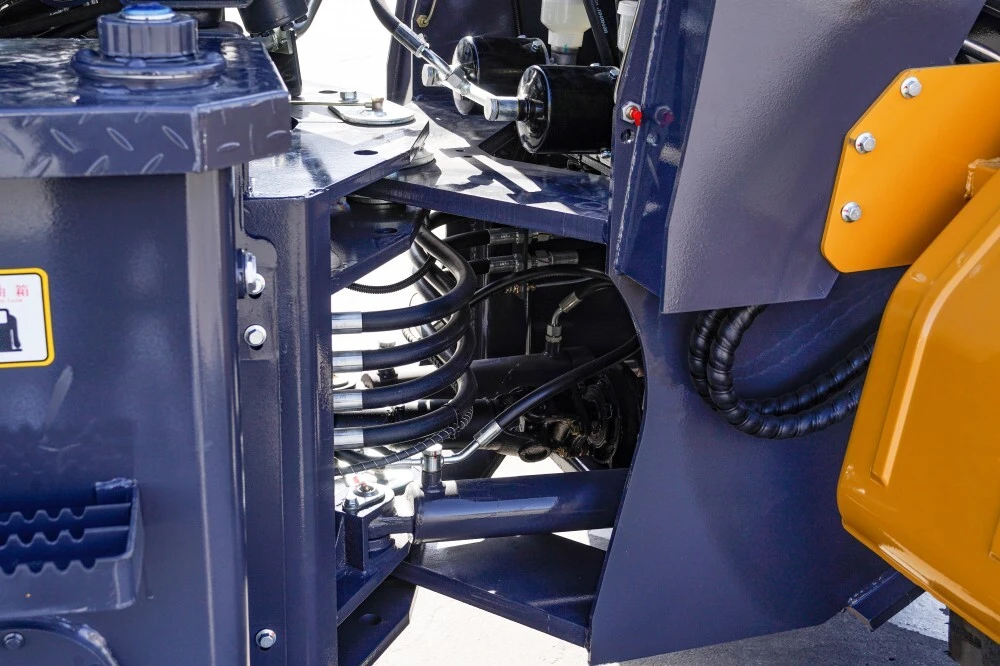

 The fuel filler port of the torque converter is led out to the hinge plate, which is more convenient for fueling.
