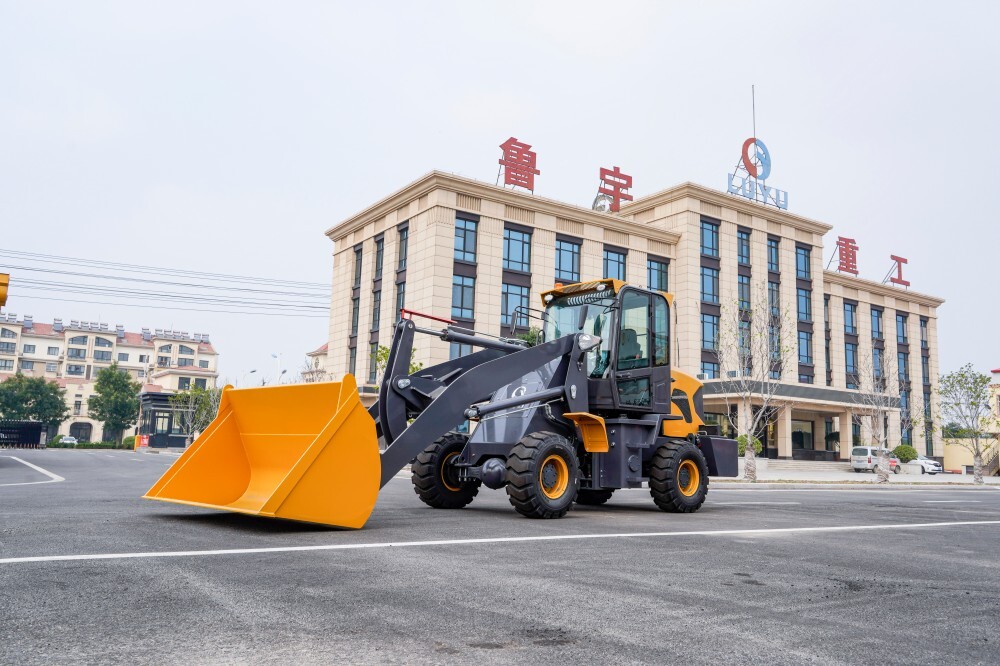

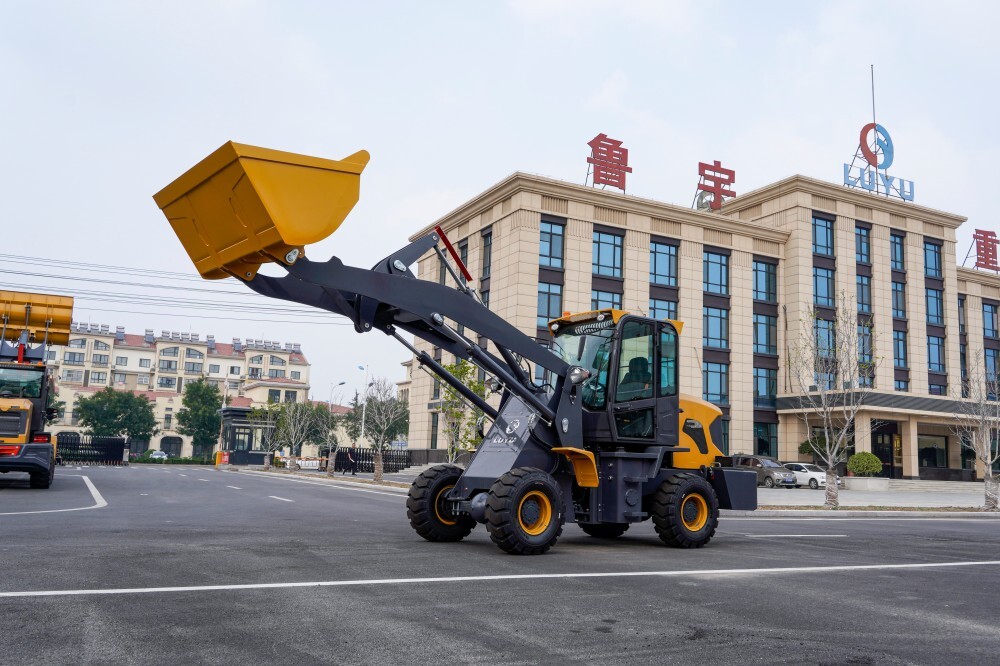

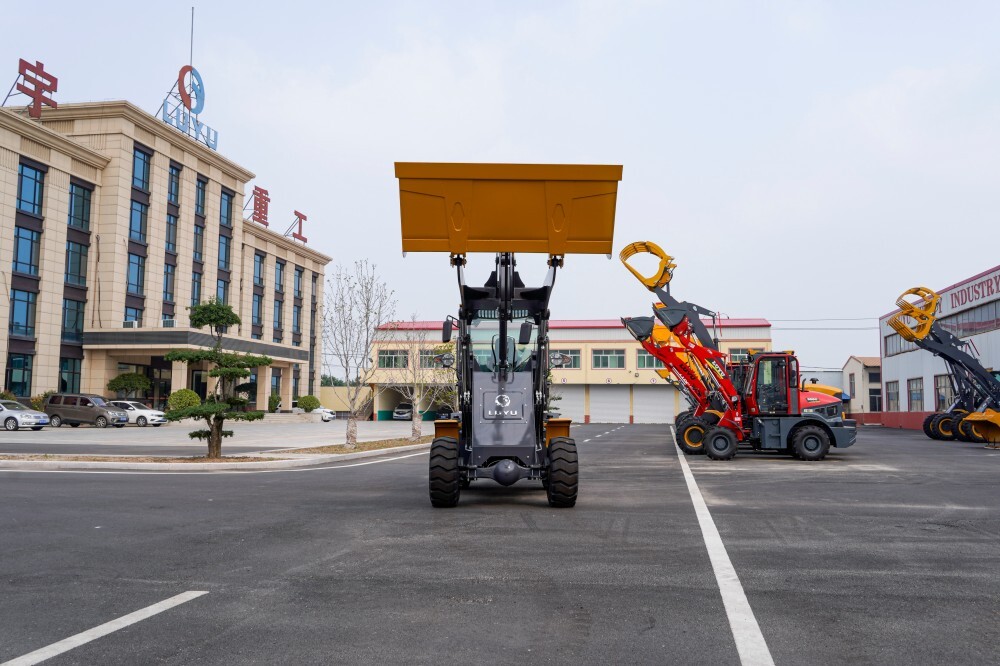

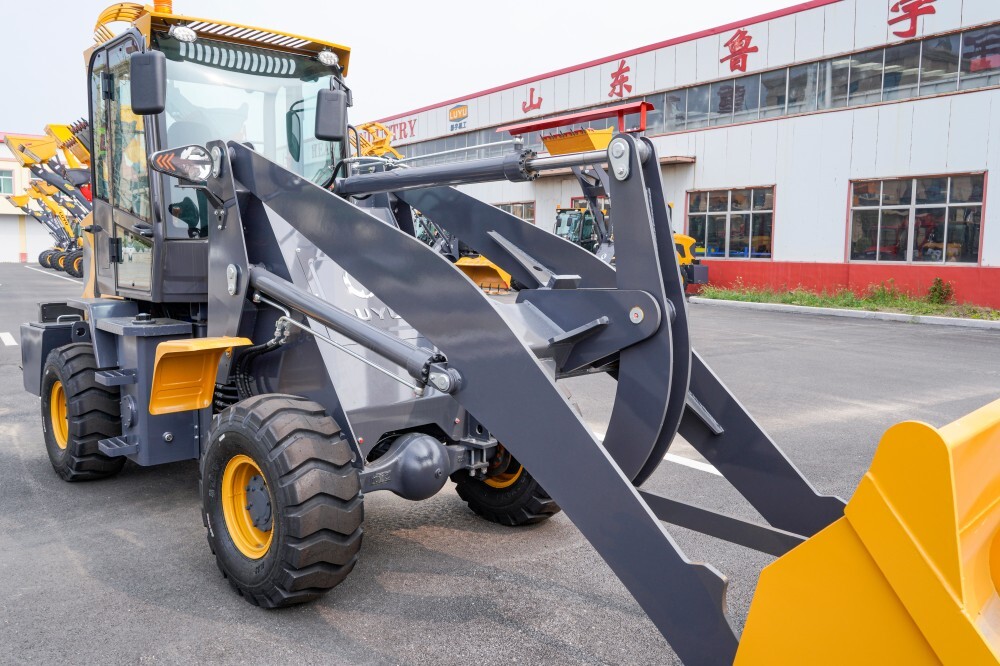

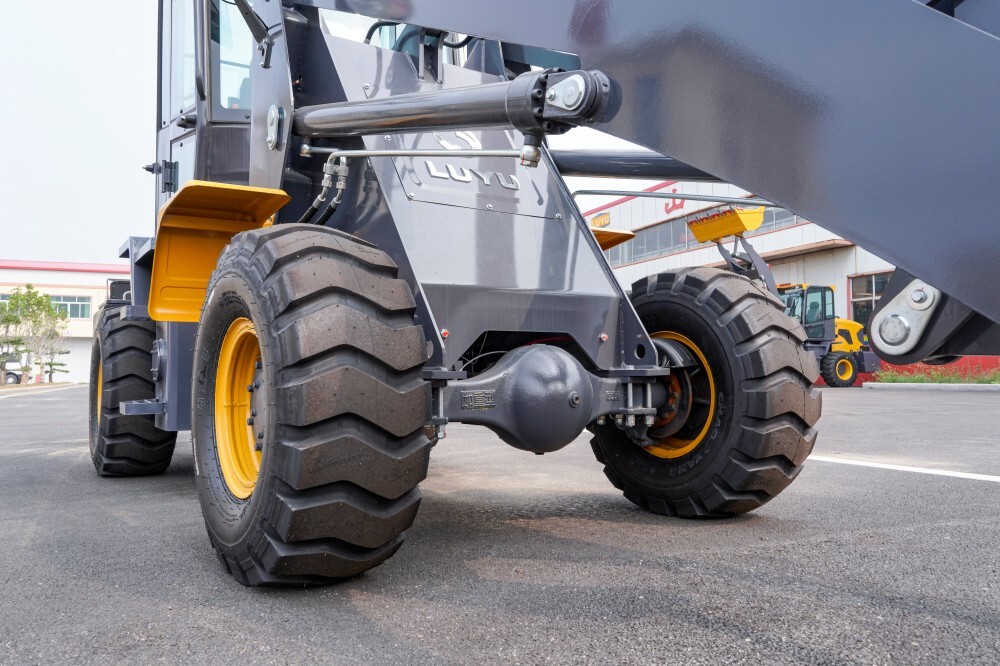

LT168 Wheel loader
Three-level function Retracted: The bucket is loaded, and the loaded state is maintained after being lifted to the highest level Leveling: When the bucket is loaded, during the lifting process, it is automatically leveled in the whole process.
EngineYN4100(60KW/80HP)
Rated load1800kg
Dumping height3500mm
Bucket capacity0.8m³

Three-level function Retracted: The bucket is loaded, and the loaded state is maintained after being lifted to the highest level Leveling: When the bucket is loaded, during the lifting process, it is automatically leveled in the whole process.

PARAMETERS

EngineYN4100(60KW/80HP)
Rated load1800kg
Dumping height3500mm
Bucket capacity0.8m³
Tire16/70-20
Unloading distance1125mm
Total weight4700kg
Size(L*W*H)6180*2070*2950mm
Bucket width2000mm
Arm thickness25mm
Boom center distance960mm
Cylinder size45/80mm
Cylinder size50/90mm
Thickness of upper plate25mm
Hinge plate25/20mm
Wheel track1500mm
Wheel base2370mm
Min.ground clearance310mm


Flow matching calculation. According to the fluid mechanics, the hydraulic system of the loader: pumps, valves and pipelines are scientifically matched and calculated to reduce the loss of energy

conduction and improve the breakout force of the loader. The hydraulic pump adopts 2063 pump, gear 40 chrome modulation, the shell is thickened to prevent internal leakage caused by the expansion of the shell after the oil temperature rises. The inner wall of the multi-way valve is fine-bored, the valve stem is made of 40 chrome material, the surface is chrome-plated, and the shell is thickened.

 Three-level function Retracted: The bucket is loaded, and the loaded state is maintained after being lifted to the highest level Leveling: When the bucket is loaded, during the lifting process, it is automatically leveled in the whole process. Leveling: The bucket is unloaded and automatically leveled after landing.

 Pipe combing design Comb the pipelines, optimize the arrangement of the hoses, make them neat and orderly, and add sheaths to the necessary hoses. The wiring harness is wrapped with corrugated pipes and connected with waterproof connectors.
