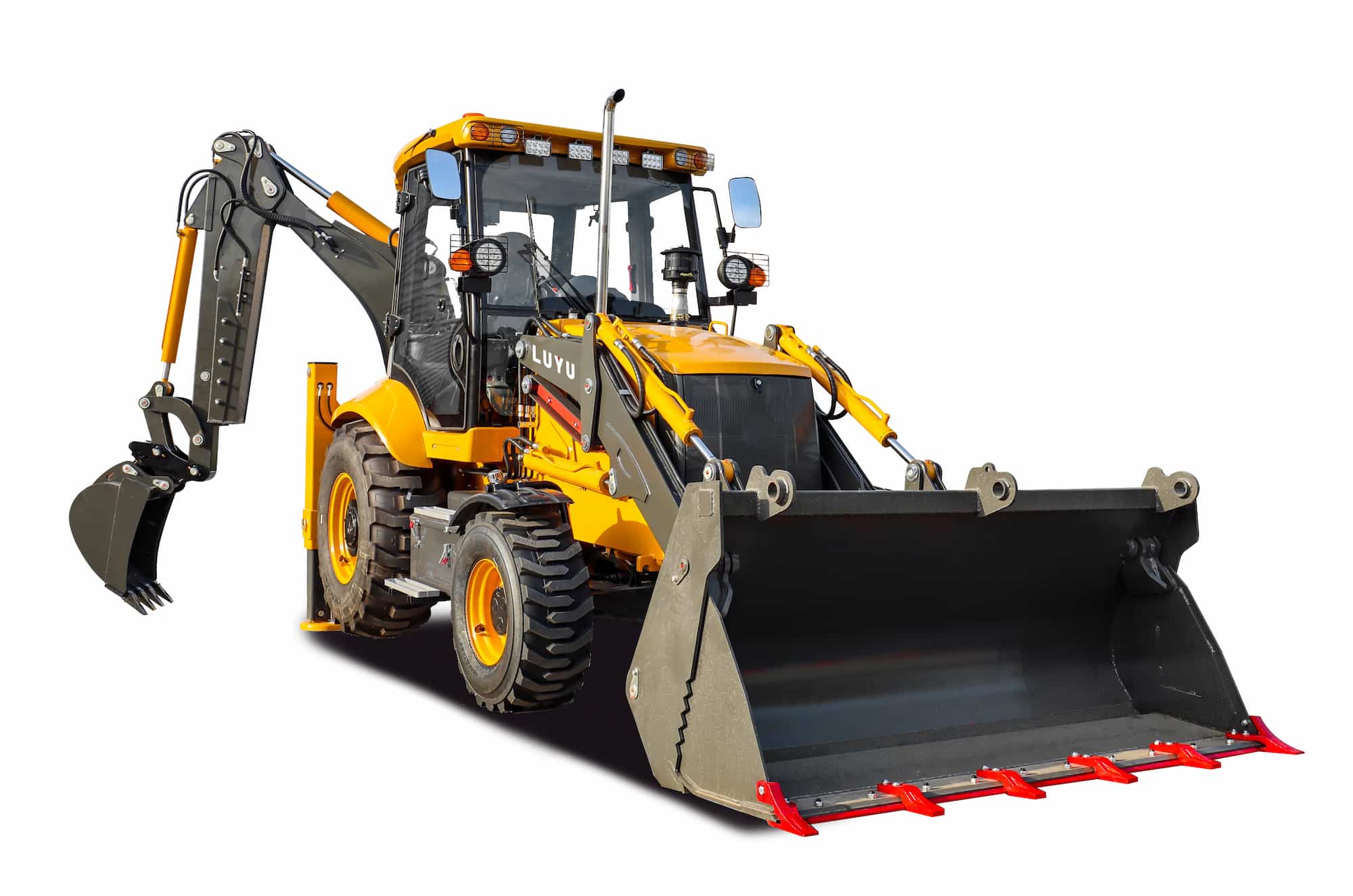

LUYU LY388A: A Versatile Backhoe Loader

The LUYU LY388A is a compact backhoe loader for farm work, construction, road maintenance, and general engineering. It covers two connected stages of the job: the rear backhoe handles excavation, then the front loader moves the excavated material. This combination allows the LY388A to cover different stages of a job.

Jobsite conditions and the intended application guide the choice of loading capacity, digging range, work equipment, and control setup.

A Versatile Machine for Multi-Stage Work

Farm maintenance, construction, and roadwork usually extend beyond excavation. Once a trench is dug, the excavated soil must be moved. The job may then continue with material loading or site preparation.

For these applications, a backhoe loader needs to handle different work stages rather than focus on a single operation. With its front loading and rear digging equipment, the LY388A can handle trench excavation, material loading and unloading, site preparation, and general maintenance work.

For projects with changing work requirements, the working configuration can be matched based on the main applications.

LY388A Performance and Working Configuration

85 kW Yuchai 4105T Engine

The LY388A is powered by a Yuchai 4105T engine with a rated power of 85 kW, providing power for front-end loading, rear digging, and material handling.

For continuous loading and digging applications, the equipment configuration can be tailored to the actual workload.

2,500 kg Rated Load with a 1 m³ Loader Bucket

The front end of the LY388A is equipped with a 1 m³ loader bucket and has a rated load of 2,500 kg. It can handle common materials such as soil, gravel, and feed for loading and transport.

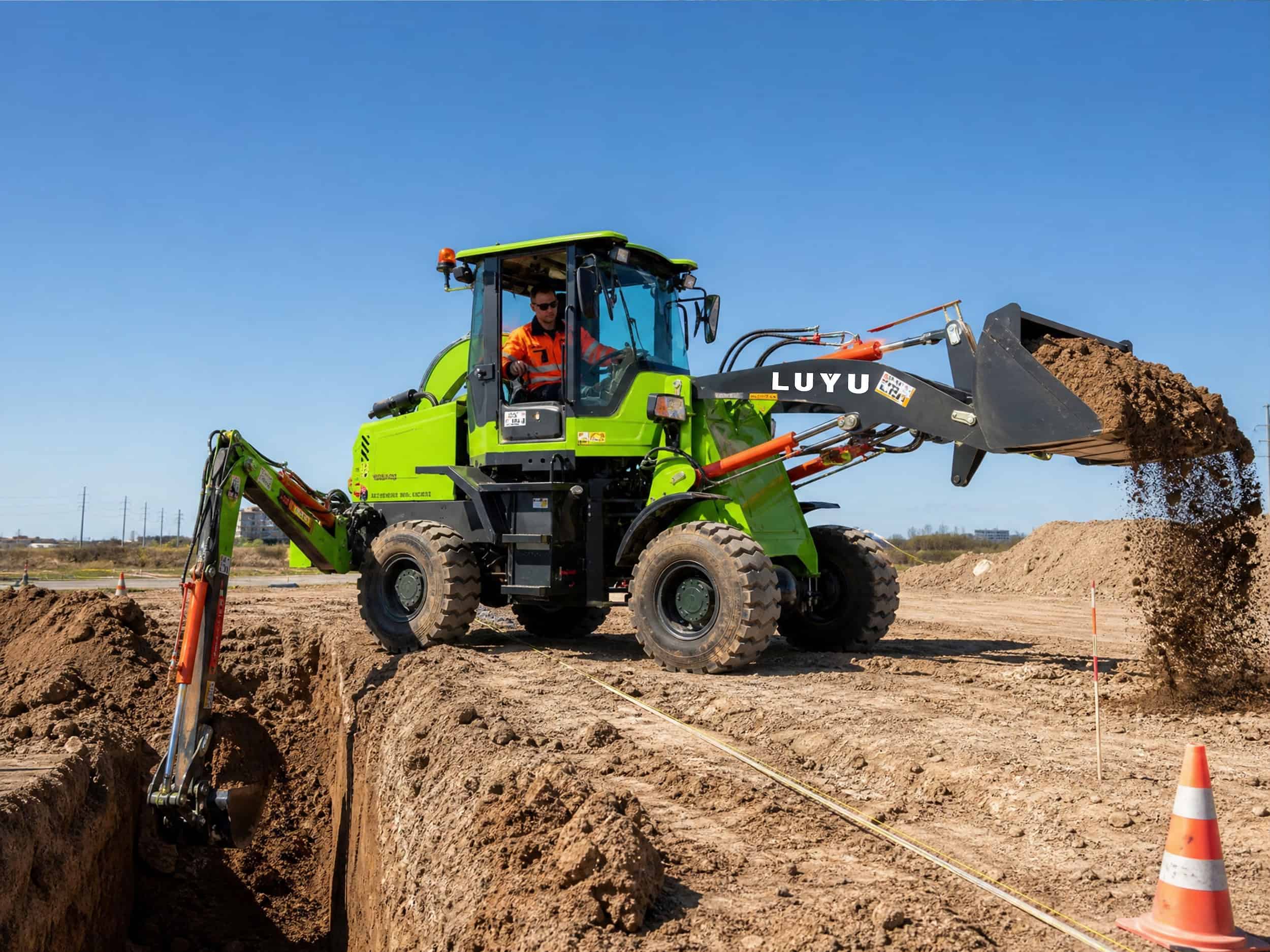

The front-loading function can also work together with the rear digging function. For example, after trench excavation, the machine can move soil or transport material and prepare the site during farm work.

Side-Shift Backhoe

The rear backhoe moves laterally, so the operator can adjust the digging position to suit the available work area.

This design provides greater flexibility when working near walls, along ditch edges, or in other areas with limited working space.

Standard and Extendable Dipper Options

The standard LY388A configuration provides a maximum digging depth of approximately 4,000–4,200 mm. An extendable dipper can also be selected according to application requirements, increasing the maximum digging depth to 5,200 mm.

For standard trenching, drainage work, and basic earthmoving, the appropriate dipper configuration can be selected based on the required digging depth.

What Applications Is the LY388A Suitable For?

The LY388A combines digging, loading, and material handling functions, making this backhoe loader suitable for farms, construction, road maintenance, drainage projects, and other applications involving multiple types of work.

Farm and Agricultural Work

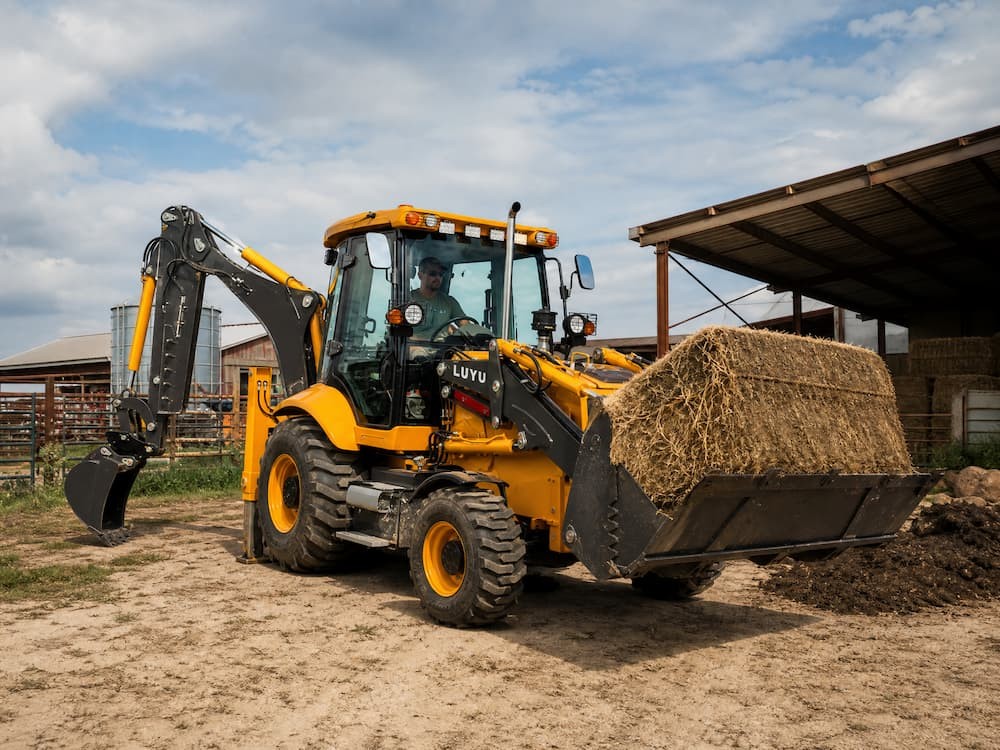

Routine farm maintenance often involves tasks such as ditch cleaning, earthmoving, material handling, and site preparation. The LY388A can be used for ditch cleaning, soil handling, feed handling, and farm infrastructure maintenance.

Typical Applications:
Ditch cleaning · Earthmoving · Feed handling · Site preparation

Construction

Construction sites may require equipment to switch between excavation, loading, and earthmoving tasks. The LY388A can be used for trench excavation, construction material loading, soil handling, and site preparation.

Typical Applications:
Trench excavation · Soil handling · Material loading · Site preparation

Road and Drainage Work

Road maintenance and drainage projects move through several stages, from trench excavation and drainage ditch construction to backfilling and material handling. Depending on jobsite conditions, the LY388A can handle the related earthmoving and material-handling work.

Typical Applications:
Drainage ditch construction · Road maintenance · Trench excavation · Backfilling

General Earthmoving and Material Handling

For projects that require digging, loading, and material handling, the LY388A can use its front or rear working equipment, depending on the work process. It is suitable for site preparation, earthmoving, and construction material handling.

LY388A Frequently Asked Questions

Can the LY388A use additional or different attachments?

The LY388A can be configured with suitable attachments according to specific application requirements. If your work requires a special attachment, share the intended application and attachment requirements with LUYU before purchase. LUYU can then confirm compatibility with the selected machine.

Can the LY388A be configured for specific requirements?

Yes. The LY388A can be configured to meet your specific requirements. Share your needs and provide the details in your inquiry so LUYU can confirm feasibility.

What after-sales support is available for the LY388A?

After-sales services vary by destination market. Before ordering, confirm the service scope with LUYU, including operating guidance, maintenance assistance, technical support, and spare-parts supply.

LY388A: A Compact Backhoe Loader for Multiple Tasks

The LY388A combines digging, loading, and earthmoving for farm, construction, and engineering work. With different working equipment and configuration options, this compact backhoe loader can be adapted to different work environments and project requirements.

If you are looking for a backhoe loader for sale for projects involving multiple types of work, contact LUYU to discuss the LY388A configuration and purchasing options based on your specific application.
