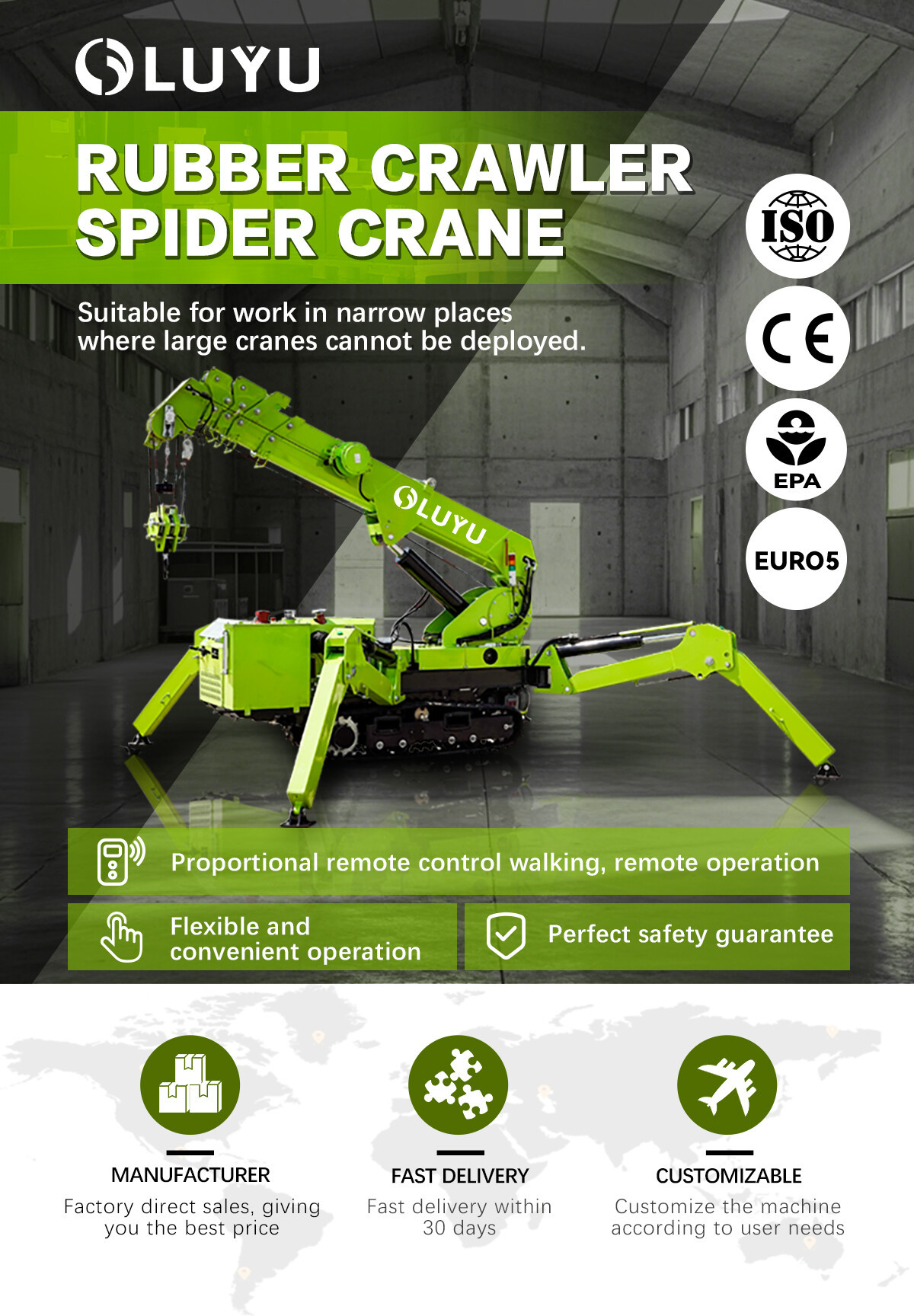

Spider cranes are mainly used in construction, interior decoration, remodeling, maintenance of equipment in workshops, electrical repair and jungle work.
Product features: Mainly small size, suitable for narrow or restricted space operation, with flexible operation, widely used.
Solutions for spider cranes, for example, are as follows:
Building construction enterprises: for curtain wall installation in high-rise buildings, steel structure lifting and loading, and narrow space operation (e.g., indoor decoration, roof construction)

Wind power installation companies: for lifting and loading of wind turbine equipments in complicated terrains (e.g., mountainous areas, offshore).
Logistics and warehousing companies: for heavy cargo loading and unloading and precise handling in warehousing spaces.
Factories and workshops: for production line equipment maintenance, lifting of heavy parts in workshops.
Municipal engineering units: for bridge maintenance, underground pipe installation and other scenarios that require flexible mobility.
Model | KB3.0B | KB3.0A | KB3.0E |
diesel engine+electric motor | gasoline engine+electric motor | battery+electric motor |
Capacity | 2.95T*1.3m |
Working Radius | 8.25m*0.15T |
Ground Lifting Height | 9.6m (4 falls) |
Winch Device | winch | Driven by hydraulic motor, two speeds |
Hook Speed | low speed 5.3m/min high speed 10.2m/min | 0-10.8m/min |
Rope type | φ8mm×110m (max) |
Telescopic System | Boom Form | U type automatic 5 section |
Boom Length | 2.66m-8.98m |
Telescopic Length/Time | 25sec( fully extended) | 20sec( fully extended) |
Up and Downs | Boom Angle/Time | 0~75°/18sec |
Slew System | Slew Angle/ Speed | 0-360°/40sec |
|
Outrigger | Outrigger Active Form | manual adjustment for the 1 section, automatic for the 2,3 section |
Maximum Extended Dimensions | 4290mmX3885mm |
Traction system | Walking Way | driven by hydraulic motor, high/low speed |
Walking Speed | 0-1.6,0~2.9km/ h | 0-2.5km/ h |
Grade Ability | 20° |
Ground Length×Width | 1000mm×200 mm |
power system | diesel engine | gasoline engine | battery |
Model | 3TNV70(YANMAR) | Model | GX390 | Voltage | 48V |
Displacement | 0.857L | Displacement | 389ml | Battery capacity | 260Ah |
Maximum output | 11.2Kw | Maximum output | 9.6kw | WorKing time | 6-8h |
Starting method | electric starting | Starting method | Starting method | DC motor (with battery pack) |
Fuel | diesel | Fuel | petrol | Voltage | DC48V |
Fuel tank | 15L | Fuel tank | 6.1L | Power/Speed | 6KW 2000r/min |
Operate system | remote control form/distance | 100m remote control | 100m remote control | 100m remote control |
walk | remote control/manual | manual | remote control/manual |
leg | remote control/manual | manual | remote control/manual |
boom | remote control/manual | remote control/manual | remote control/manual |
Electric Motor | Model | YYB112M-4(Three-phase AC asynchronous motor) |
Voltage | AC380V(50Hz) |
Power/Speed | 4kw/1440 min-1 |
Dimension | Length×Width×Height | 2890mm×800mm×1700mm |
Tank Capacity | 40L |
Vehicle weight | 2400Kg | 2240Kg | 2400Kg |
Safety Devices | Levelling, moment limiter, three-color lamp, emergency button, anti-tipping alarm, walking/outrigger/boom three mode interlock system, one-key levelling | Levelling, moment limiter, three-color lamp, emergency button, anti-tipping alarm, walking/outrigger/boom three mode interlock system | Levelling, moment limiter, three-color lamp, emergency button, anti-tipping alarm, walking/outrigger/boom three mode interlock system, one-key levelling |
|
