K5-7t

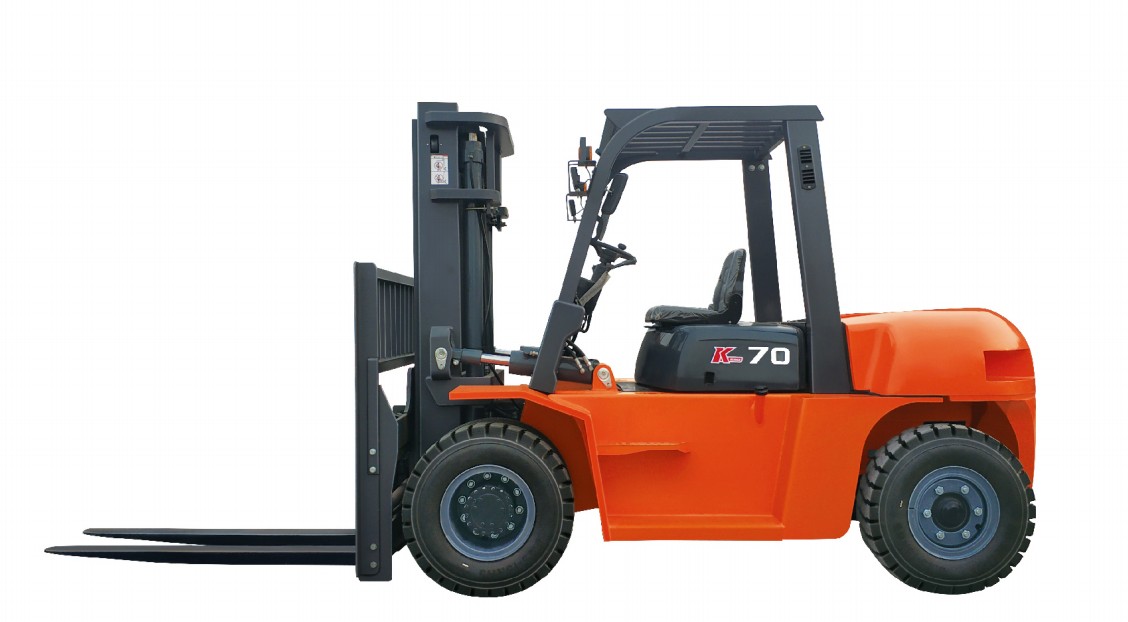

CPCD50/60/70 Forklift advanced manufacturing process, high-quality components to ensure high reliability of the whole vehicle.
ModelCPC50/60/70
Rated lifting load5000/6000/7000kg
Load center distance600mm
Free lifting height210mm

CPCD50/60/70 Forklift advanced manufacturing process, high-quality components to ensure high reliability of the whole vehicle.

PARAMETERS

ModelCPCD50/60/70
Rated lifting load5000/6000/7000kg
Load center distance600mm
Free lifting height210mm
overall length (With fork/Without fork)4690/3510mm
Width1970mm
Overhead guard height2500mm
Wheelbase2250mm
Minimum ground clearance230mm
Mast tilt angle (front/rear)6°/12°
Tire no. (before)8.25-15-14PR
Tire no. (after)8.25-15-14PR
Minimum turning radius (outer side)4080/4120/4180mm
Minimum right angle aisle width5230/5290/5360mm
Fork size1220X150X60mm
maximum working speed(Full-load/No-load)24/29km/h
maximum lifting speed(Full-load/No-load)510/530mm/s
maximum grade ability(Full-load/No-load)15/20%
Forklift weight8400/8900/9600kg
Engine modelQuanchai4J1-115c32


DETAILS

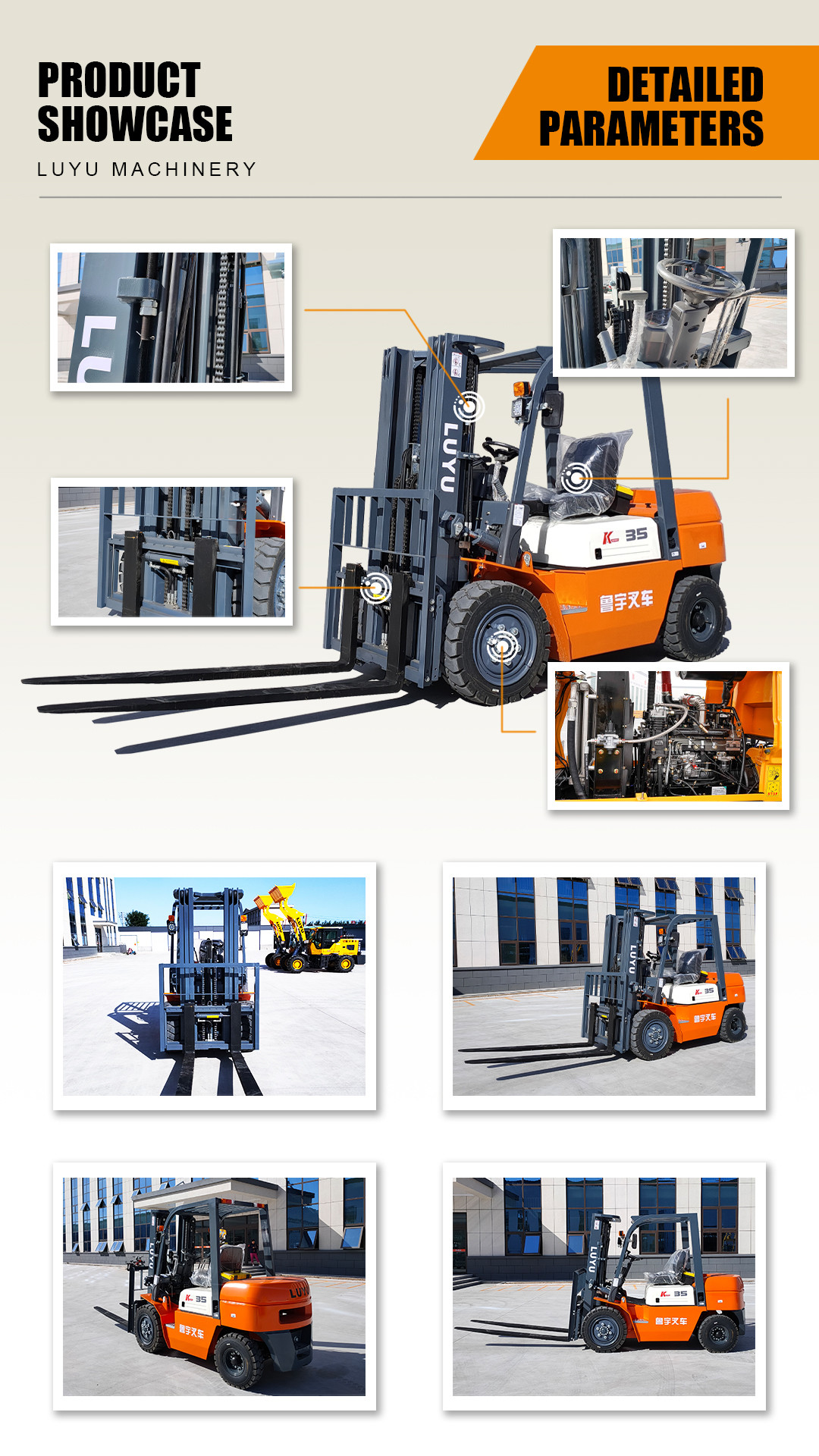

叉车详情页(1)


ADVANTAGES

1.Wide view door frame design makes the driver's field of vision more open;

2. High air intake system design can keep the engine away from dust, which can effectively utilize the engine performance and improve the life span:

3. Reliable LCD digital special instrumentation, friendly man-machine interface, which facilitates the driver to accurately control the vehicle status;

4. Advanced manufacturing process, high-quality components to ensure high reliability of the whole vehicle;

5. Smaller front overhang design, effectively reducing the load on the front axle in full load condition, greatly improving the life of the front tires and drive axle;

6. Low noise, low vibration, energy saving and environmental protection;

7. Beautiful and generous styling, with clear contour lines.

FAQ

Q:Are you a forklift factory or a trading company?

A:LUYU is a manufacturer with our own factory, production lines, and engineering team.
All forklifts are produced directly in our facility, and we do not outsource production.

Q:Do you produce the forklifts by yourself?

A:Yes. We handle the full process, including frame welding, painting, assembly, testing, and quality inspection.
Every unit is assembled and tested by our in-house technicians.

Q:Can you provide factory-direct prices?

A:Yes. Since we are a factory, you will receive factory-direct prices without any middle dealers involved.
