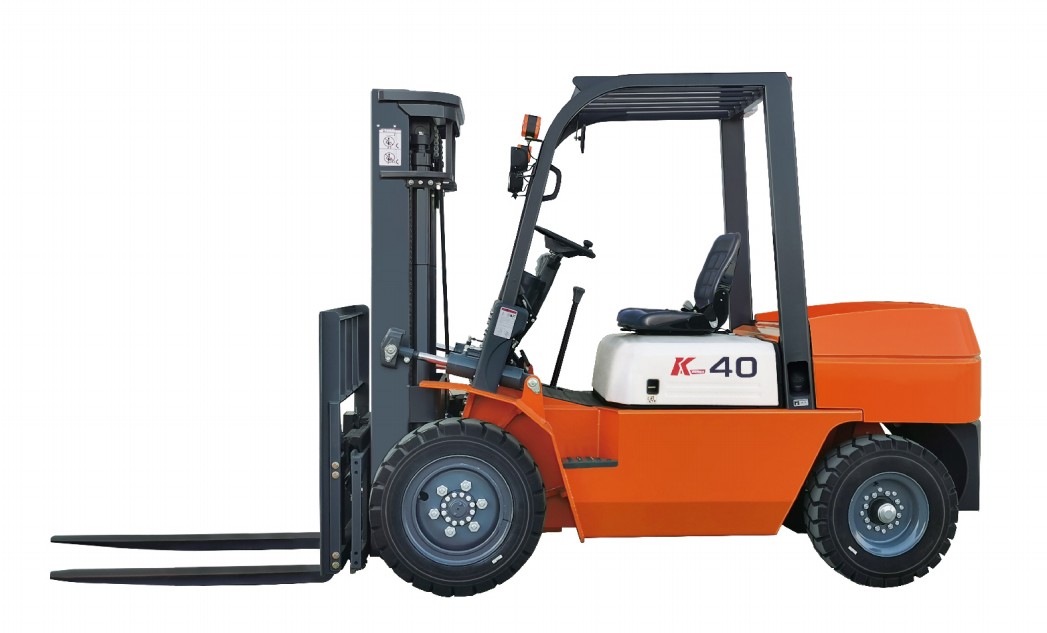

K4t
New steering wheel adjustment mechanism improves operation comfort and adjustment reliability.
ModelCPC40
Rated lifting load4000kg
Load center distance500mm
Free lifting height150mm

New steering wheel adjustment mechanism improves operation comfort and adjustment reliability.

PARAMETERS

ModelCPC40
Rated lifting load4000kg
Load center distance500mm
Free lifting height150mm
overall length (With fork/Without fork)4000/2930mm
Width1290mm
Overhead guard height2180mm
Wheelbase1900mm
Minimum ground clearance140mm
Mast tilt angle (front/rear)6° /12°%
Tire no. (before)250-15-16PR
Tire no. (after)7-12-12PR
Minimum turning radius (outer side)2710mm
Minimum right angle aisle width4750mm
Fork size1070× 150×50mm
maximum working speed(Full-load/No-load)19/19km/h
maximum lifting speed(Full-load/No-load)340/380mm/s
maximum grade ability(Full-load/No-load)15/20%
Forklift weight4950kg
Engine modelQuanchai4C4-50V31

1. Simple, generous and beautiful appearance, strict environmental protection design;

2. Wide field of vision door frame design makes the driver's field of vision more open country:

3. Reliable LCD digital special instrumentation, friendly man-machine interface, easy for drivers to accurately control the vehicle status.

The vehicle status is accurately controlled;

4. New steering wheel adjustment mechanism improves operation comfort and adjustment reliability;

5. High-roofed large-diameter air intake system design, which can keep the engine away from dust, and effectively bring into play the

Engine performance, improve life;

6. Optional casting steering axle, low maintenance cost.


DETAILS

ADVANTAGES

1. Simple, generous and beautiful appearance, strict environmental protection design;

2. Wide field of vision door frame design makes the driver's field of vision more open country:

3. Reliable LCD digital special instrumentation, friendly man-machine interface, easy for drivers to accurately control the vehicle status.

The vehicle status is accurately controlled;

4. New steering wheel adjustment mechanism improves operation comfort and adjustment reliability;

5. High-roofed large-diameter air intake system design, which can keep the engine away from dust, and effectively bring into play the

Engine performance, improve life;

6. Optional casting steering axle, low maintenance cost.
