K1.5-2.5

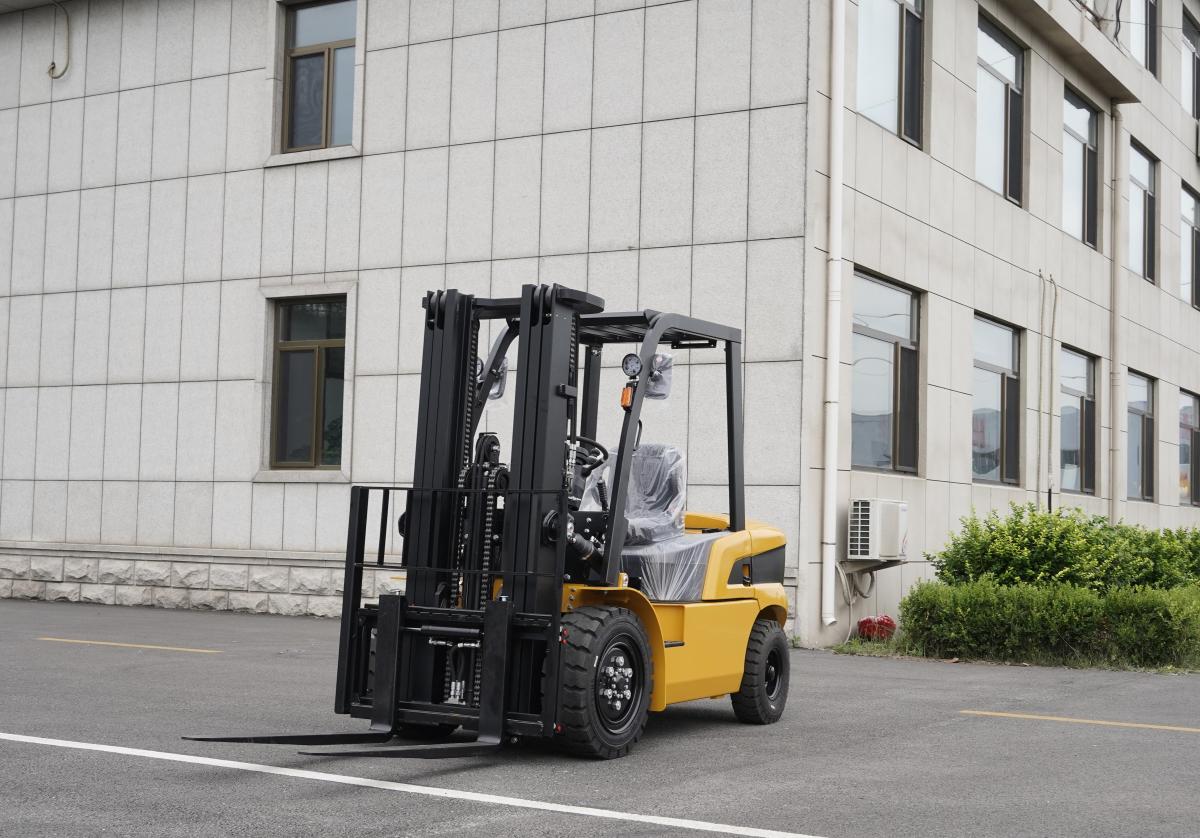

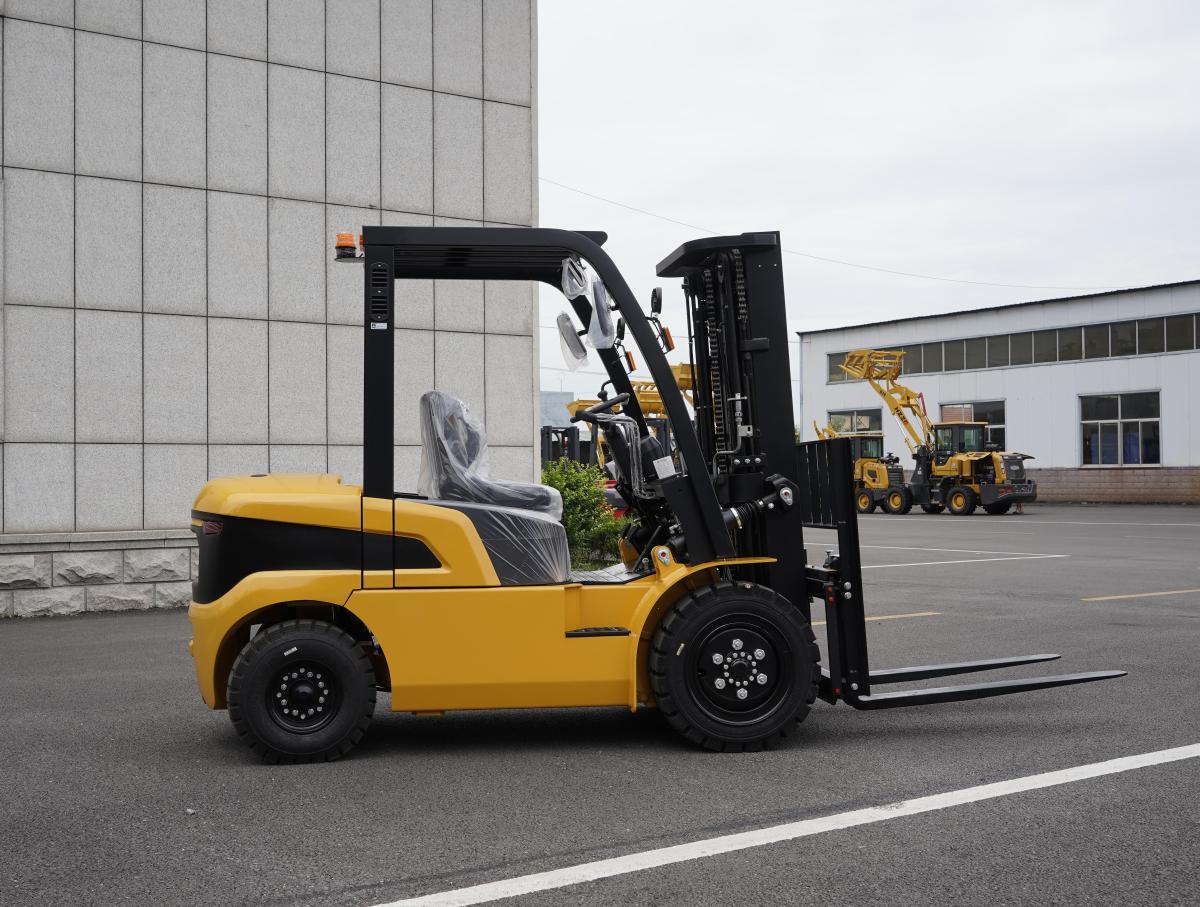

CPC15/CPC20/CPC25 Forklift Optional cast steering axle, low maintenance cost.
41.5Modelcpc15/cpc20/cpc25
Rated lifting load1500/2000/2500kg
Load center distance500mm
Free lifting height100-150mm

‹

  • K1.5-2.5

›

Inquiry
Contact us
Download
CPC15/CPC20/CPC25 Forklift Optional cast steering axle, low maintenance cost.

PARAMETERS

41.5Modelcpc15/cpc20/cpc25
Rated lifting load1500/2000/2500kg
Load center distance500mm
Free lifting height100-150mm
overall length (With fork/Without fork)3180/2260  3422/2502  3646/2576mm
Width1090-1170mm
Overhead guard height2050-2070mm
Wheelbase1400-1600mm
Minimum ground clearance110mm
Mast tilt angle (front/rear)6° /12°
Tire no. (before)6.5-15-10PR
Tire no. (after)5-8-10PR
Minimum turning radius (outer side)1950/2170/2240mm
Minimum right angle aisle width3630/3900/3970mm
Fork size920×100×35  1070×100×45mm
maximum working speed(Full-load/No-load)14/15-17/19km/h
maximum lifting speed(Full-load/No-load)500/480  530/550mm/s
maximum grade ability(Full-load/No-load)20/21%
Forklift weight2900/3320/3680kg
Engine modelQuanchai4C2-50V32/Quanchai4C2-50C41


DETAILS

ADVANTAGES

1. Simple, generous and beautiful appearance.

2. New steering wheel adjustment mechanism improves operation comfort and adjustment reliability.

3. High-roofed large-diameter air intake system design can keep the engine away from dust, effectively play the performance of the engine, and improve the service life

4. Wide field of vision door frame design makes the driver's field of vision more open.

5. Reliable LCD digital special instrumentation, friendly man-machine interface, easy for the driver to accurately control the vehicle status.

6. Optional cast steering axle, low maintenance cost.
