How to Choose a Wheel Excavator with Grapple? A Guide to Wood and Crop Handling

Content

• What Jobs Is a Wheel Excavator Grapple Suitable For?

• What Size Wheel Excavator Is Suitable for Wood Handling?

• Why Is a Wheel Excavator Suitable for Wood Handling?

• What Should You Consider When Using a Wheel Excavator Grapple?

• What Should You Confirm Before Buying a Wheel Excavator with Grapple?

• Conclusion

After timber, sugarcane, straw, and other materials are harvested or cut, collecting, loading, and transporting them can take more time than expected. A standard bucket is better suited to earthmoving and loose materials, but it is not as convenient for handling long pieces of wood or bundled crops. A wheel excavator with a grapple uses a hydraulic grapple to pick up materials and can be used for handling and loading timber, sugarcane, branches, and straw. This guide looks at actual working needs and explains how to choose the right equipment.

What Jobs Is a Wheel Excavator Grapple Suitable For?

A hydraulic grapple lets a wheeled excavator handle materials that are difficult to move with a standard bucket.

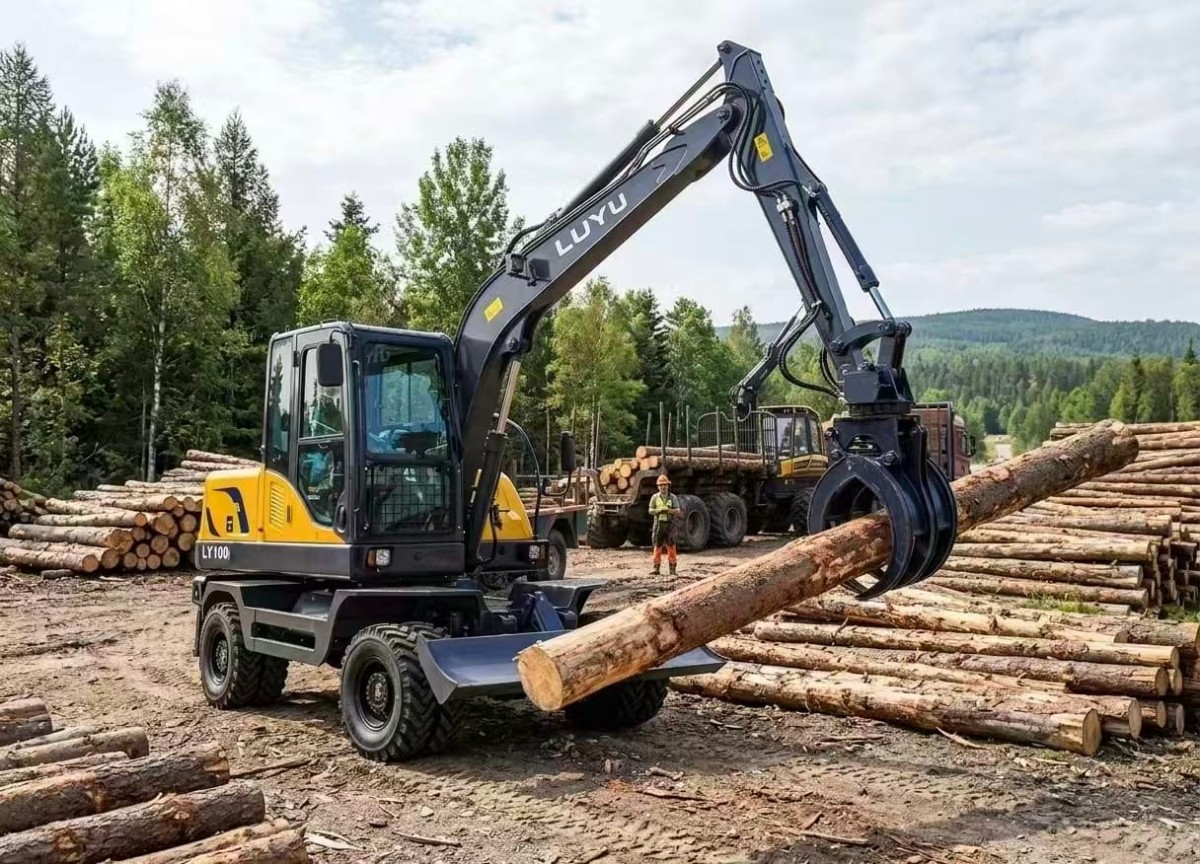

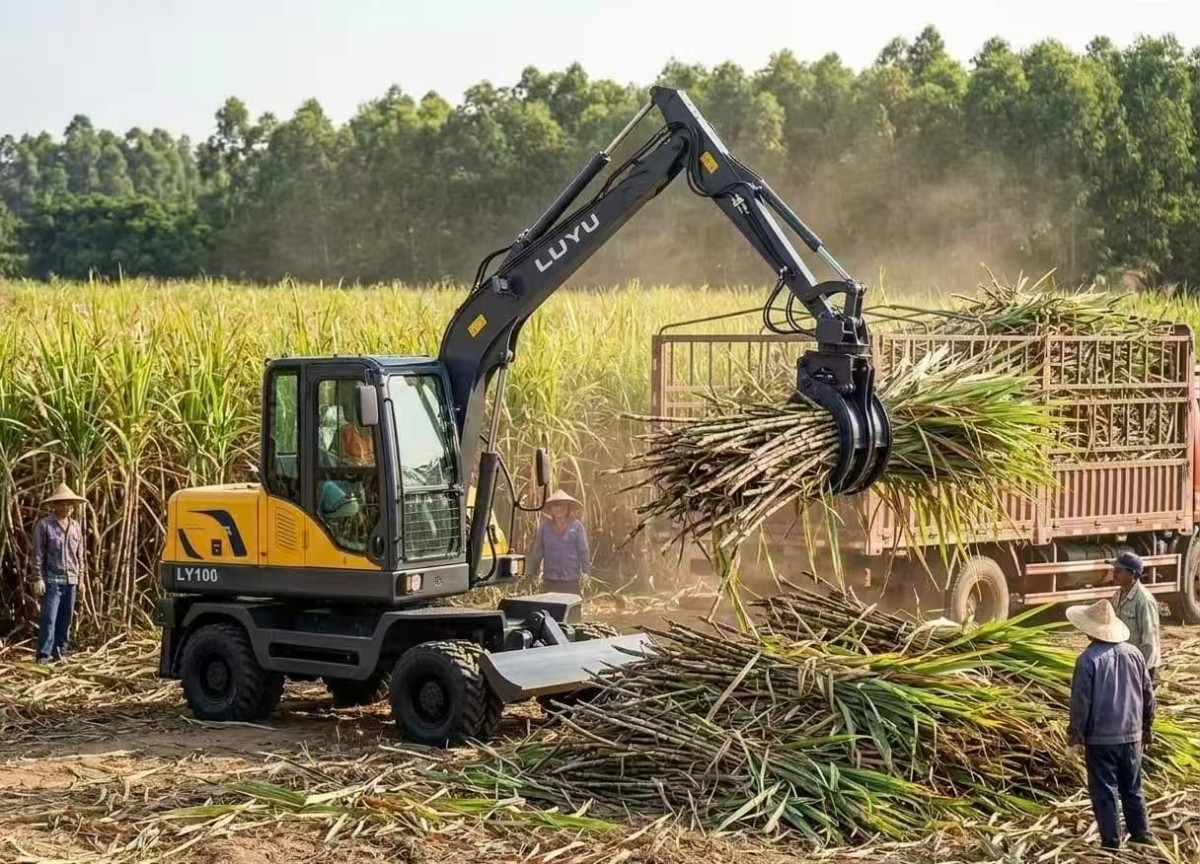

In timber work, it can pick up logs, wood poles, and branches for loading onto transport vehicles or moving to designated storage areas. The same attachment can gather and load sugarcane, cotton stalks and other long agricultural materials. These jobs may involve frequent material movement between fields, forest areas, roads and storage sites. A wheeled excavator suits that work; with a change of attachment, it can also switch to earthmoving.

A wheeled excavator suits jobs that involve frequent material movement between fields, forest areas, roads, and storage sites. As the work changes, different attachments let the same machine switch between earthmoving and material handling.

What Size Wheel Excavator Is Suitable for Wood Handling?

Engine power is only one consideration when choosing a wood grapple excavator. The material weight, transport vehicle height, and required working range matter too. For routine handling of timber, sugarcane, and straw, a wheeled excavator around 9 tons may balance working capability and mobility.

Take the LUYU LY100Z as example. It has an operating weight of approximately 9,100 kg, a 55 kW Yuchai engine, a 0.32 m³ bucket capacity, and a maximum digging height of 7,000 mm. Compare this size with the actual material weight and loading requirements to see if it fits the job.

It is important to remember that machine weight is only one reference when choosing equipment. If the machine regularly needs to handle heavier timber or load materials onto higher transport vehicles or stacks, working height, grapple configuration, and actual load capacity should also be considered rather than judging suitability by machine weight alone.

Why Is a Wheel Excavator Suitable for Wood Handling?

Wood and agricultural material handling is usually not carried out in a single fixed location. A machine may need to collect materials from a field and then move to the roadside or a transport vehicle for loading. For this reason, mobility is another factor worth considering when choosing equipment.

Compared with crawler excavators, wheeled excavators are better suited to short-distance movement between farm roads, forest roads, and paved surfaces. For example, the published travel speed of the LY125Z can reach 35 km/h, which can meet the needs of frequent movement between different work areas.

For users who need one machine to handle both material loading and general excavation or site preparation, the versatility of a wheel excavator can also improve equipment utilization.

What Should You Consider When Using a Wheel Excavator Grapple?

Grapple work is different from conventional excavation, so particular attention should be paid to the load and machine stability during operation.

First, the amount picked up each time should be controlled according to the weight of the timber, sugarcane, or straw. The grapple should not be overloaded simply to increase loading speed. Keep movements smooth during slewing and loading, and keep unauthorized personnel out of the work area.

Routine maintenance should cover the grapple pins, connecting components, hydraulic hoses, and tyres. Timber, branches and straw can cause friction and debris buildup, so clean the cooling area regularly.

What Should You Confirm Before Buying a Wheel Excavator with Grapple?

Before purchasing, consider the following points to determine whether the equipment matches your actual work:

· Material type: Will the machine mainly handle timber, sugarcane, or straw?

· Loading height: How high are the transport vehicles or material stacks?

· Working load: How much material needs to be picked up in a single grab?

· Travel distance: Does the machine need to move frequently between different work areas?

· Grapple configuration: Are the grapple size and gripping method suitable for the materials being handled?

· Maintenance conditions: Are hydraulic lines, pins, and other wear components easy to inspect and maintain?

Conclusion

For long or irregular materials such as timber, sugarcane, and straw, a wheel excavator with a grapple can overcome some limitations of a standard bucket when picking up and loading materials. LUYU's wheeled excavators can be selected according to different power requirements, working heights, and job needs.

If the machine needs to handle both material loading and general excavation, the right wheel excavator and grapple combination makes one machine cover a wider range of jobs. To learn more about LUYUwheel excavator grapple configurations, users can select the appropriate model based on their materials and working conditions.
