CPCD50 5Ton Forklift

CPCD50 5Ton diesel forklift-China Luyu Machinery
Rated Capacity5000kg
Load center distance600mm
Free lifting height200mm
Size1220x150x55mm

CPCD50 5Ton diesel forklift-China Luyu Machinery

PARAMETERS

CPCD50

Rated Load CapacityKG5000
Load Centermm600
Lifting Height (A2)mm3000
Free lifting Height (A4)mm200
Fork Size(LxWxT)mm1220X150X55
Mast Tilting Anglemm6 12
Length(without fork)(B4)mm3410
Overall Width(C1)mm2000
Mast Hight After Mast Fall (A3)mm2500
Lift Height(A1)mm4435
Overhead Guard Height (A5)mm2465
Turning Radius(C2)mm3260
Front Overhang(B2)mm595 565
Min.Right Angle Channel Widthmm2960
Wheelbase(B3)mm2250
Track Frontmm1470
Track Rearmm1700
Ground Clearance Mastmm200
Ground Clearance Car Centermm235
Speed Travelkm/h28 33
Speed Liftingmm/s490 510
Speed Loweringmm/s440 460
Max.Drawbar PullKG53000
Max.Gradeability%30
Front Tire
8.25-15-14
Rear Tire
8.25-15-14
Total WeighKG7980
BatteryV/AH24/160
Engine Model
Quanchai
Rated Pover/Speedkw/rpm85/2200
Max.Torque/Speednm/rpm500/1600
Work PressureMpa19.5


DETAILS

ADVANTAGES

Why choose LUYU Factory?

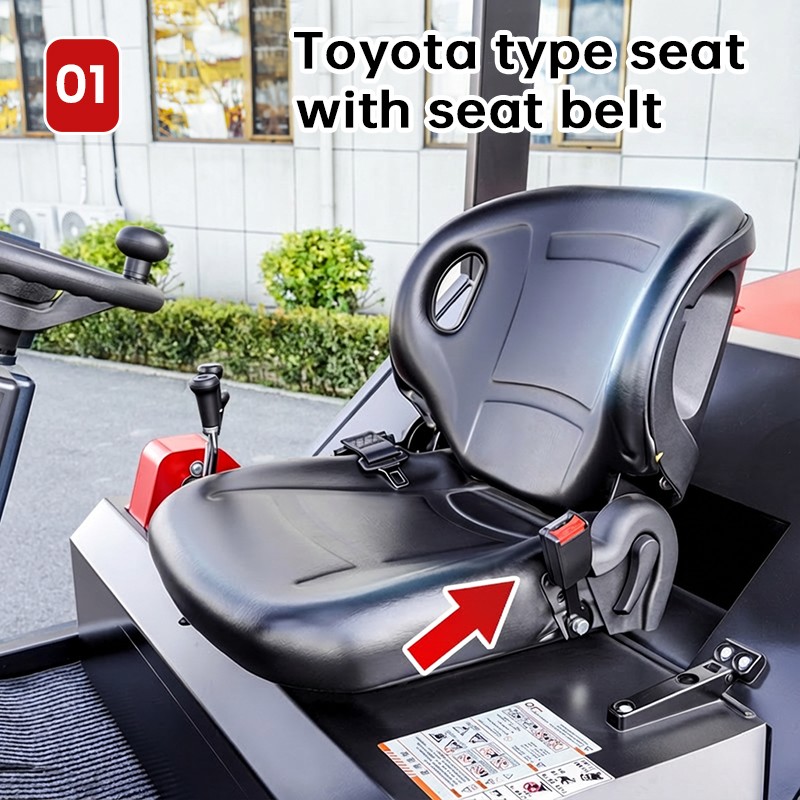

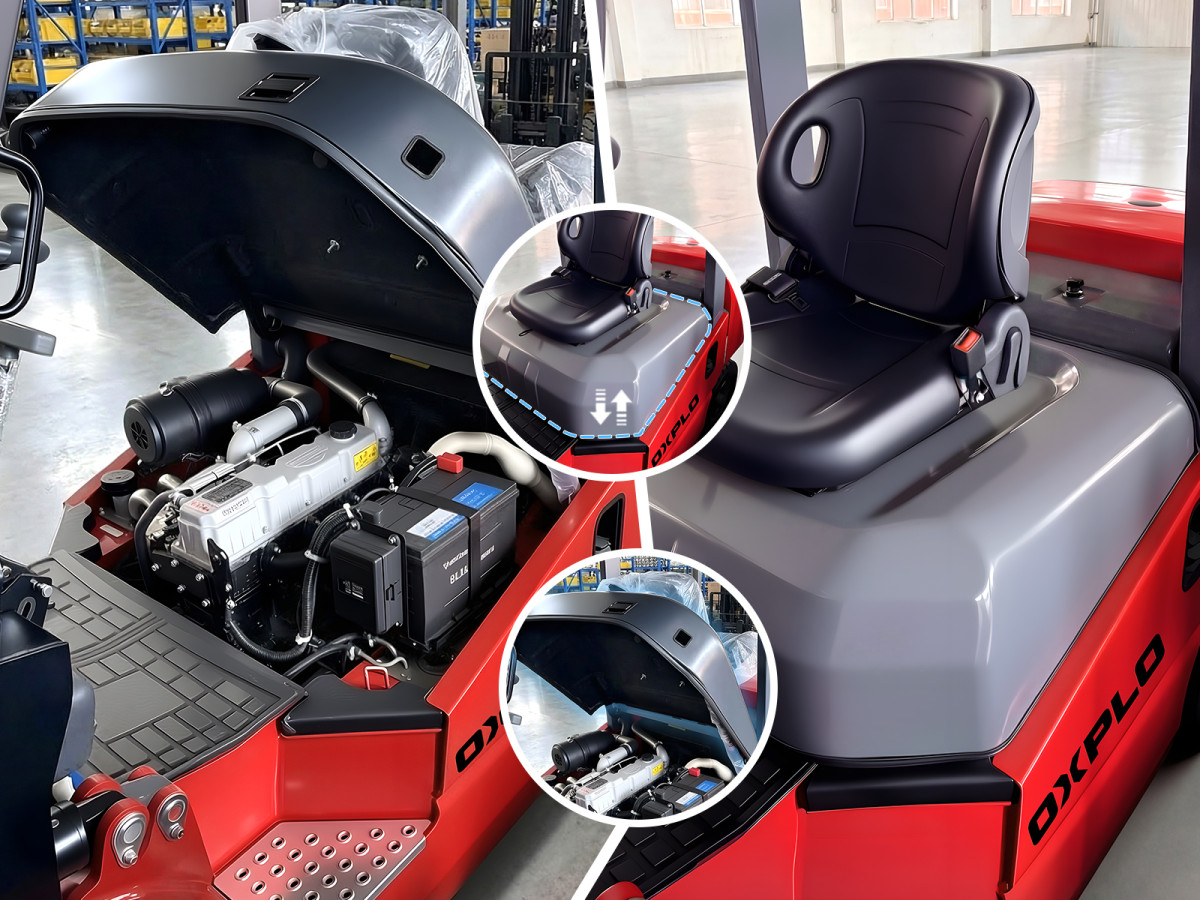

Seat

We use the same type seats from Toyota with seat belt, which can improve the comfort of the driver during operation.

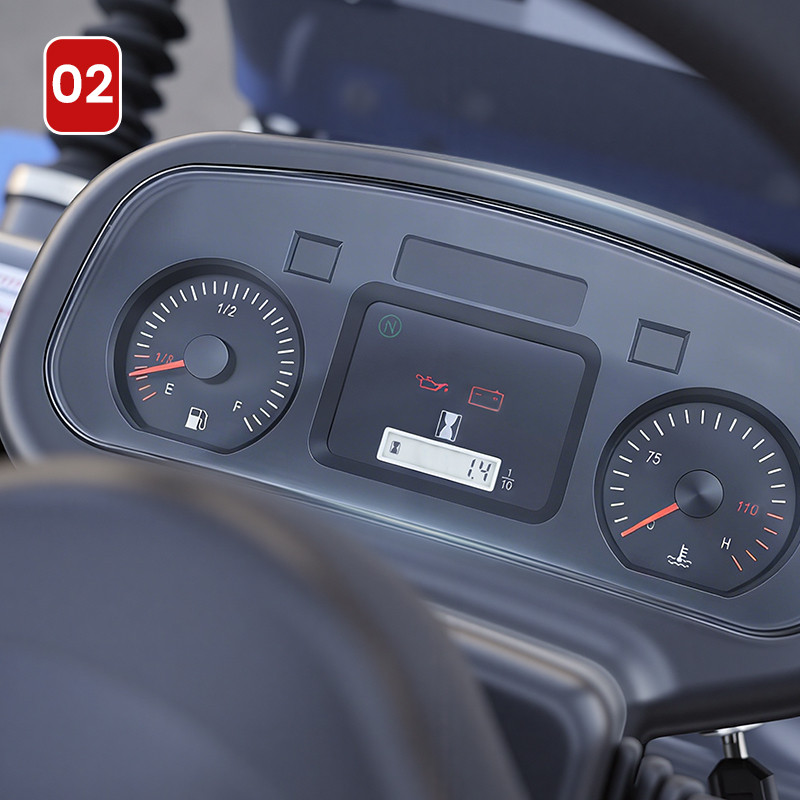

Dashboard

It is more convenient to monitor various important data. such as coolant temperature, fuel level, and

operating hours.

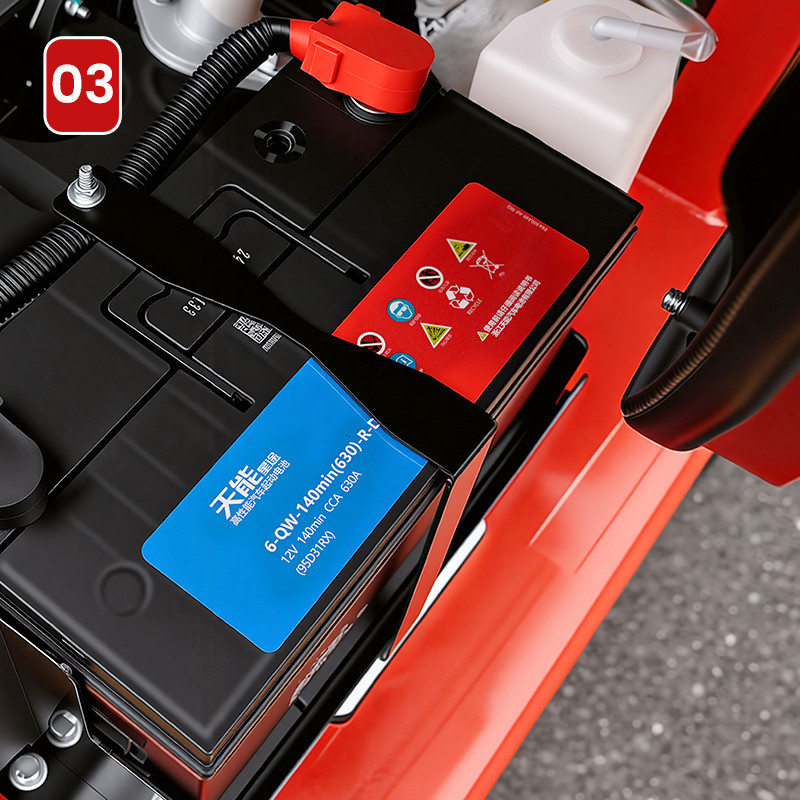

Tianneng Lead-Acid Battery

Powered by Tianneng, a leading battery brand.The range of Tianneng batteries is about 30% higher than that of ordinary lead-acid batteries

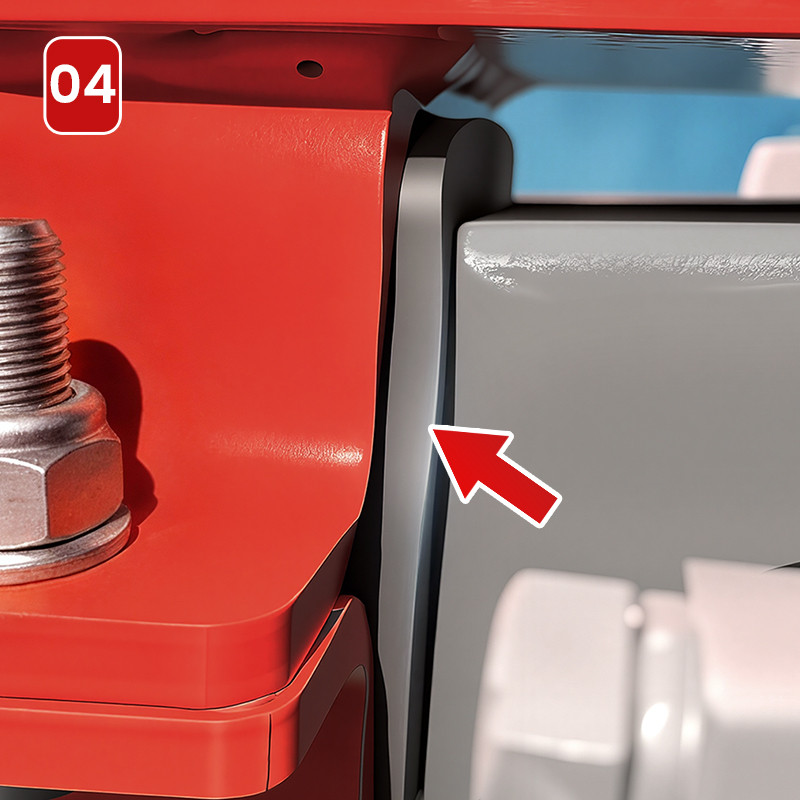

Damping Blocks

We use high-quality rubber raw materials made for the manufacturer of Heli to reduce vibration and noise, and improve driver comfort.

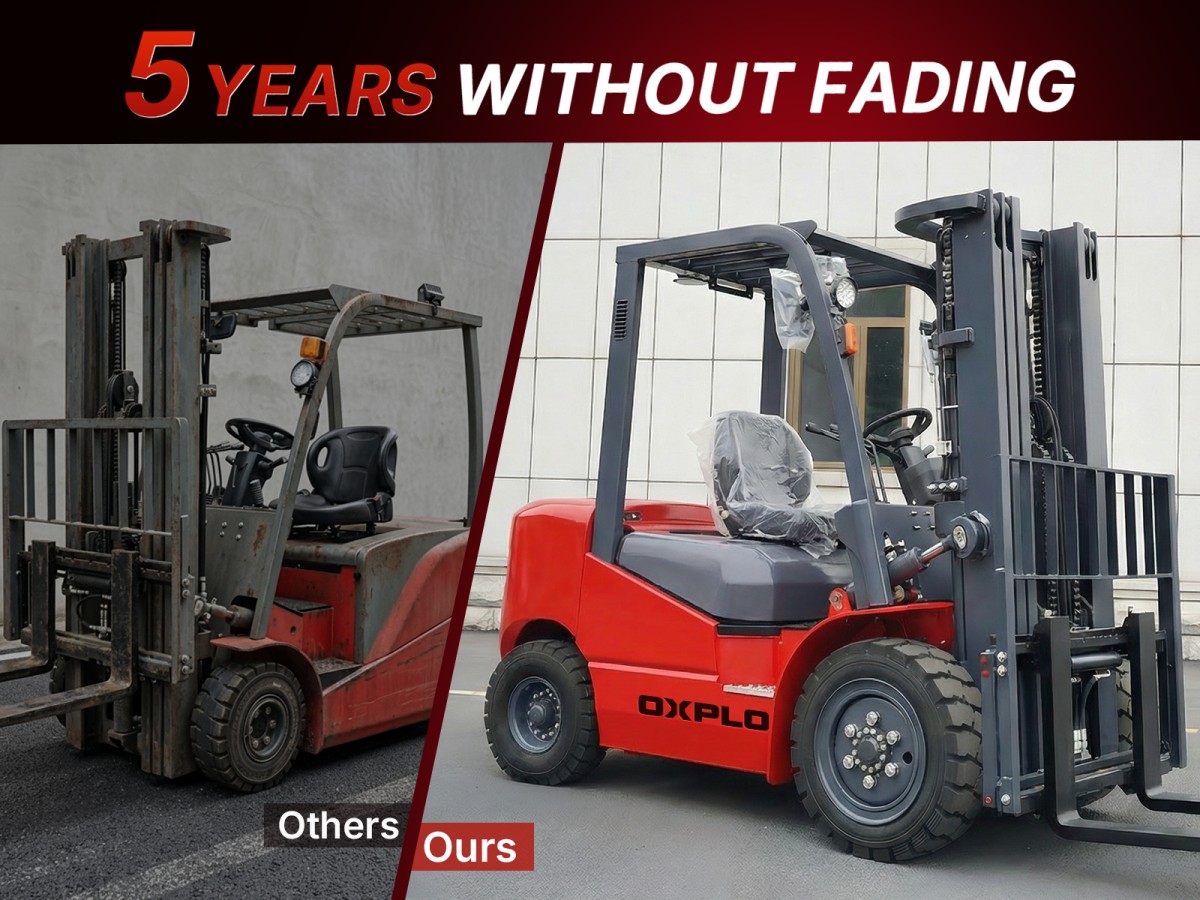

Body Rust Protection

1.The forklift features a four-layer paint coating, guaranteed against fading for 5 years.


Robust Engine Hood

2.Constructed with a one-piece sheet metal structure for a sleek appearance. Its internal ribbed frame ensures high strength and reliable quality.

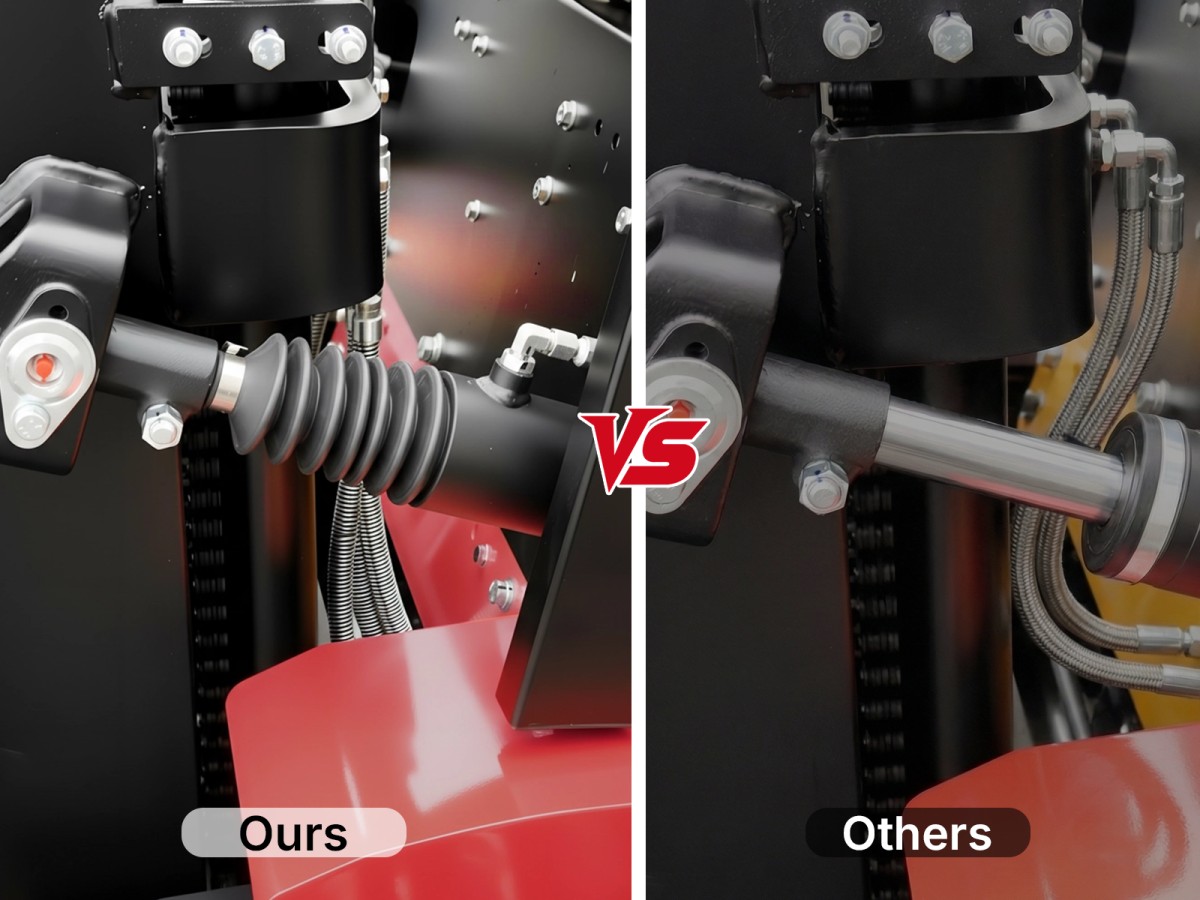

Oil cylinder protective cover

3.Two tilting oil cylinders use protective covers, which are unique to us and can prevent dust, debris, and corrosive substances from entering the oil cylinder, extending its lifespan.

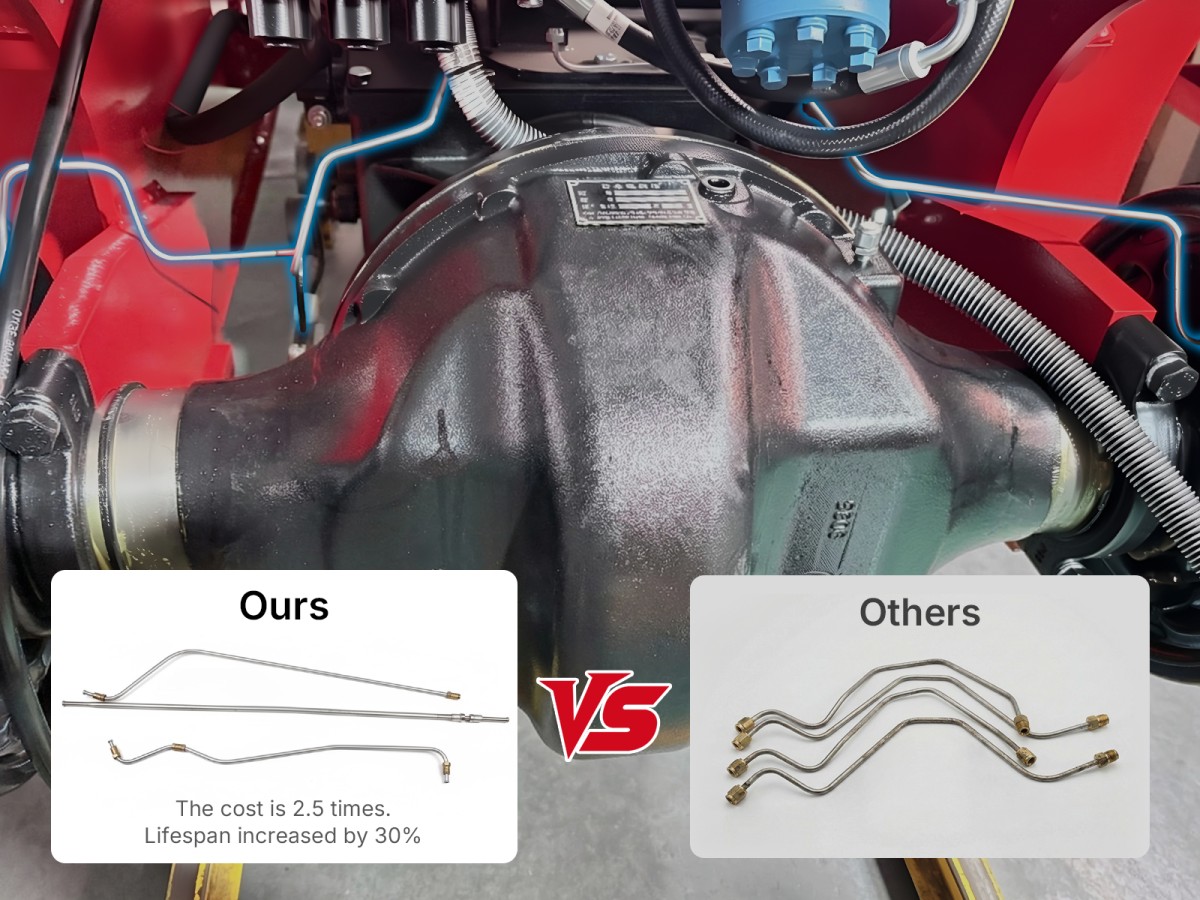

Brake steel pipe

4.Supplied by JAC, with a production cost 2.5 times higher than standard components. Its high-density joints
prevent oil leakage, extend the system's service life by 30%, and ensure a low failure rate.

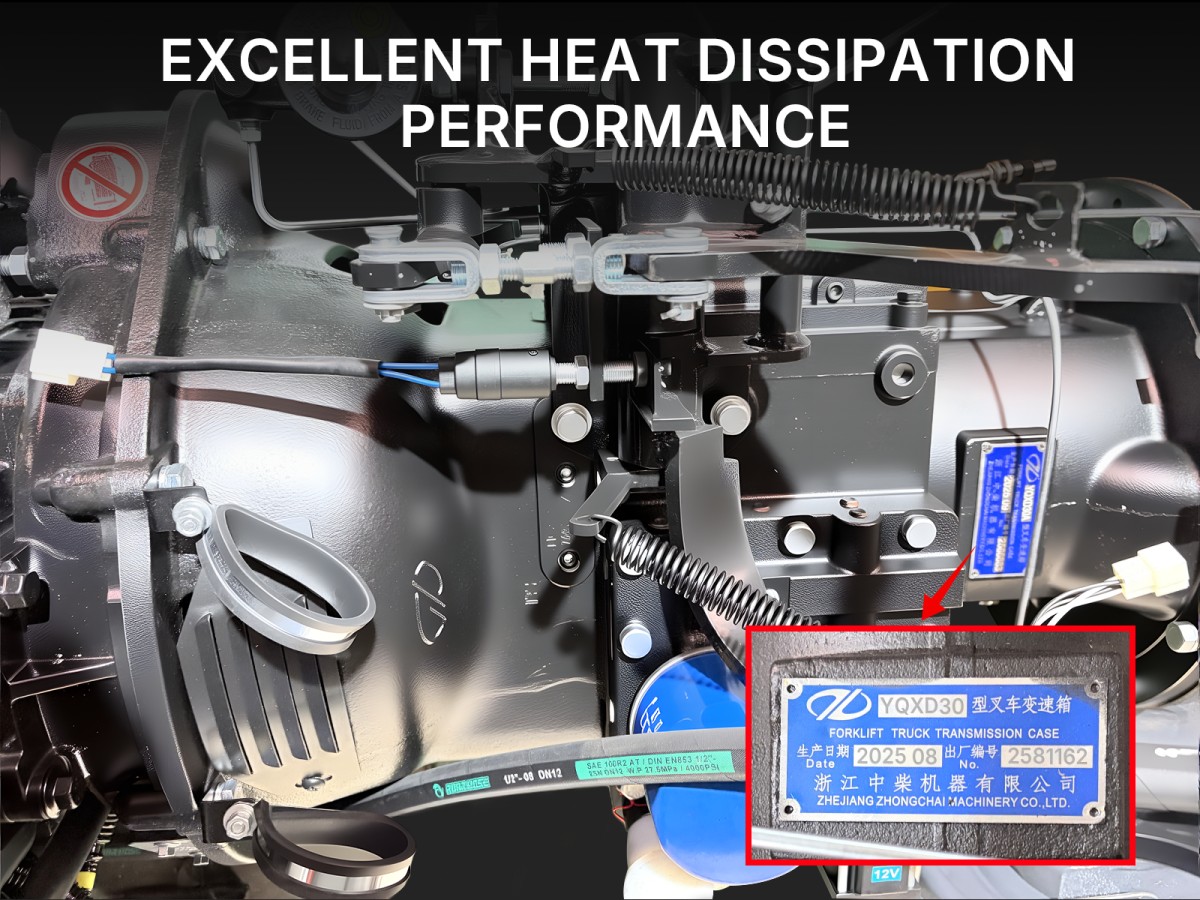

Transmission

5.ZHONGCHAI transmission, it reduces bumps and power losses during start-up, climbing, and load handling processes, extends the lifespan of core components, and reduces maintenance costs and downtime.

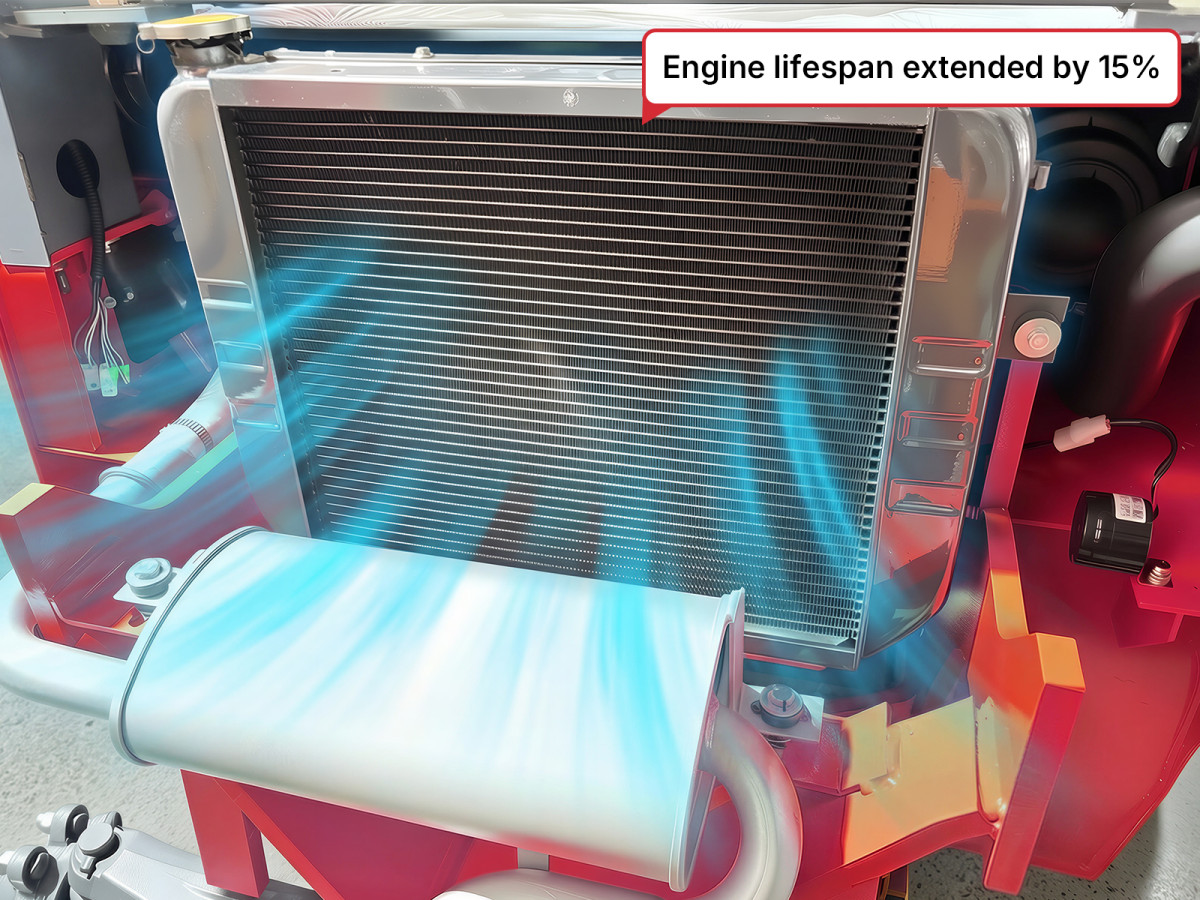

Radiator Cooling

6.Fitted with a Tailift-supplied radiator featuring a larger cooling area and optimized airflow. A powerful fan
quickly reduces engine temperature, enhancing performance and extending engine life by 15%.

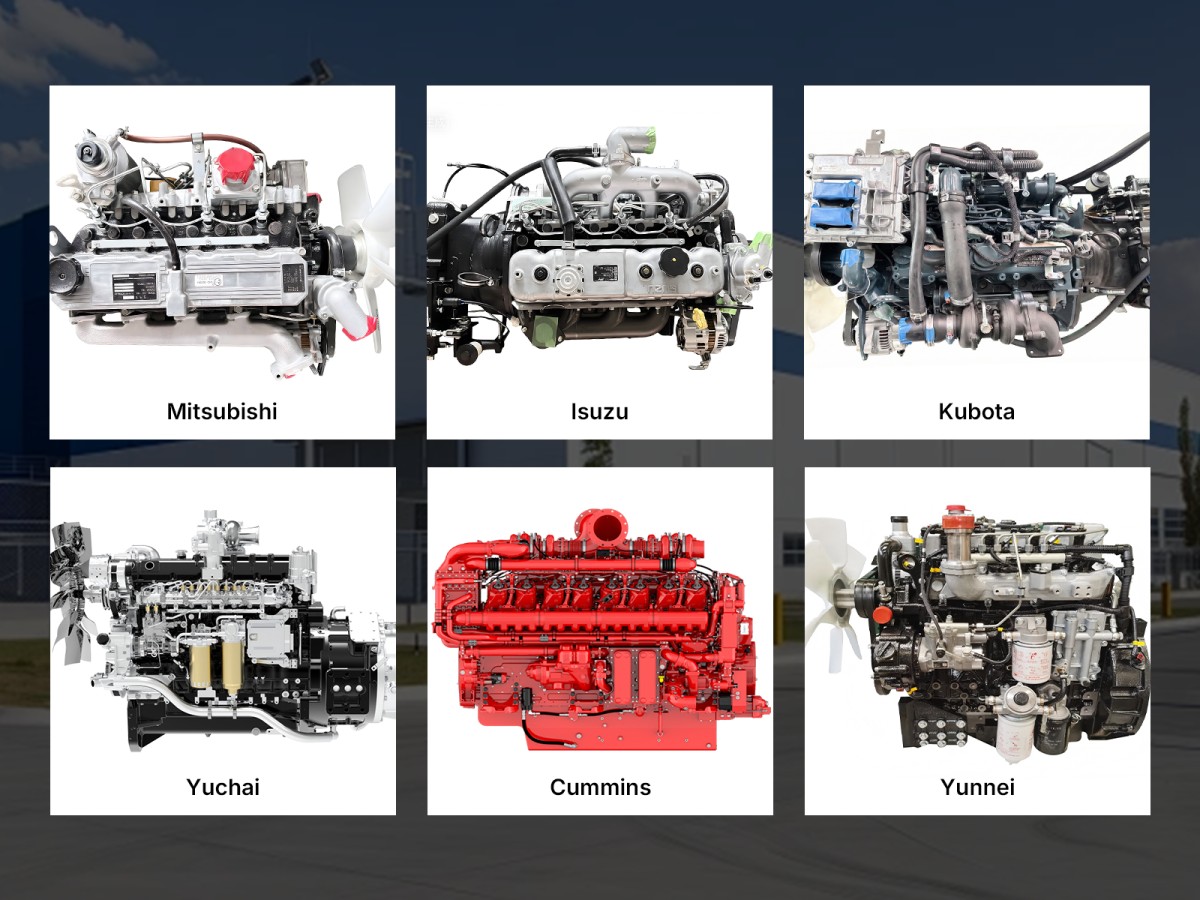

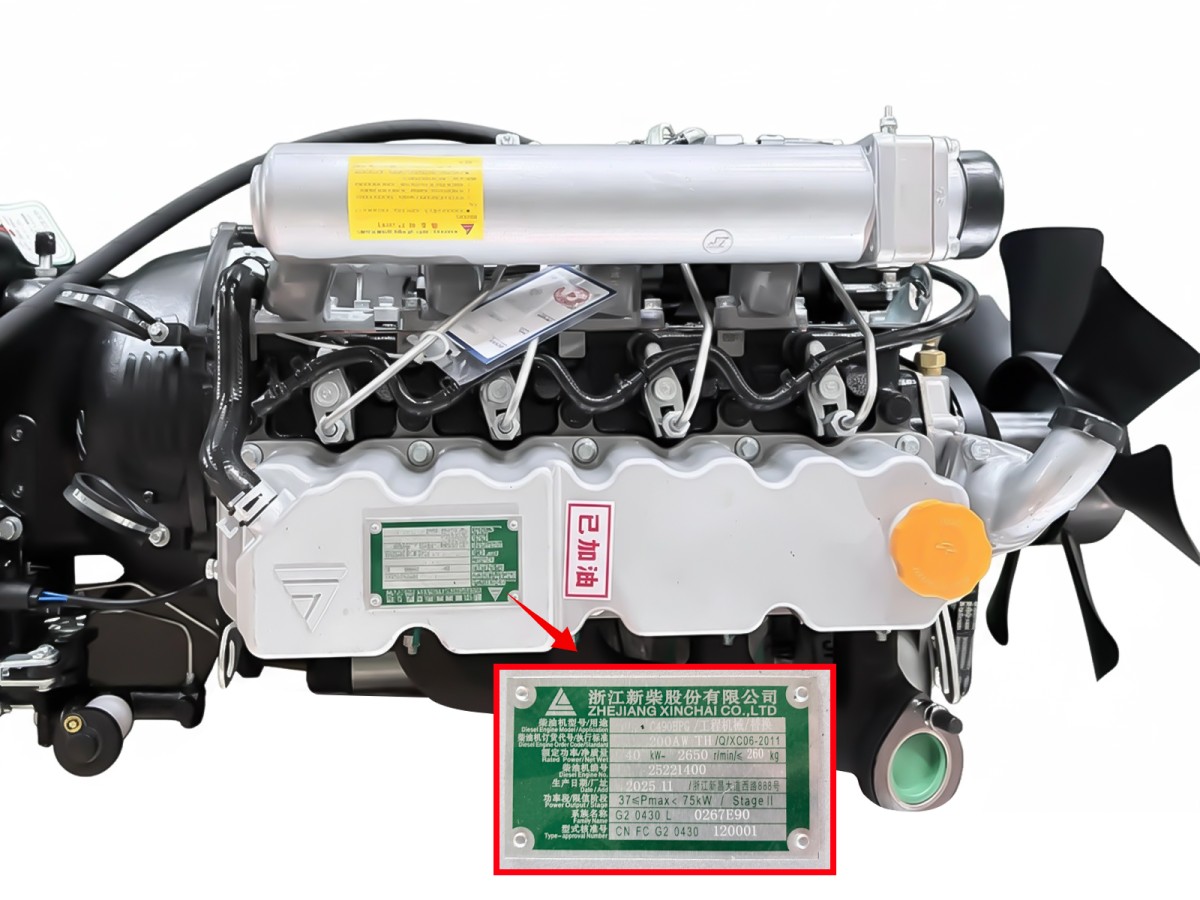

Standard Engine is XINCHAI


Optional Engine that can meet the requirements of Euro 5 and EPA4


Transmission Method

Standard:manual

Optional:Electronic Automatic

Optional:Ordinary Automatic

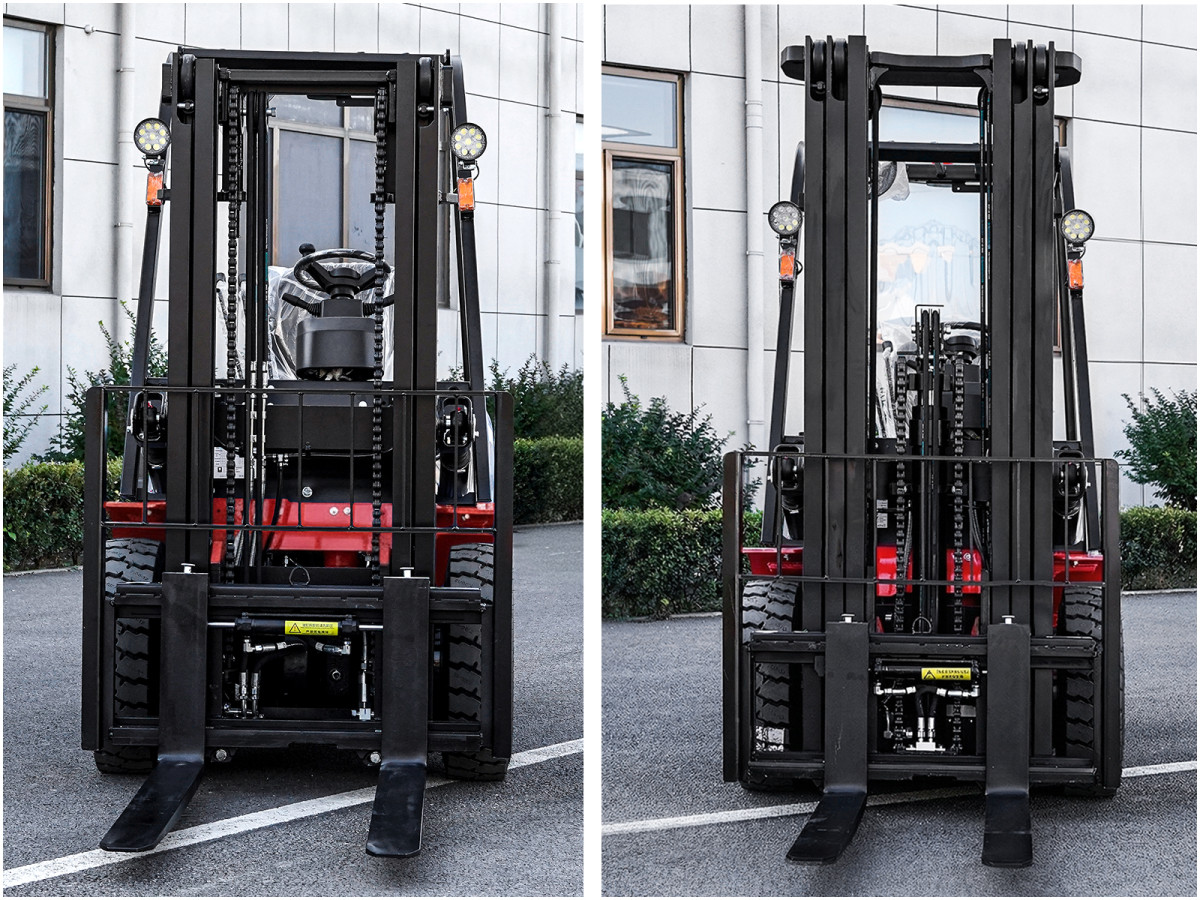

Mast Type

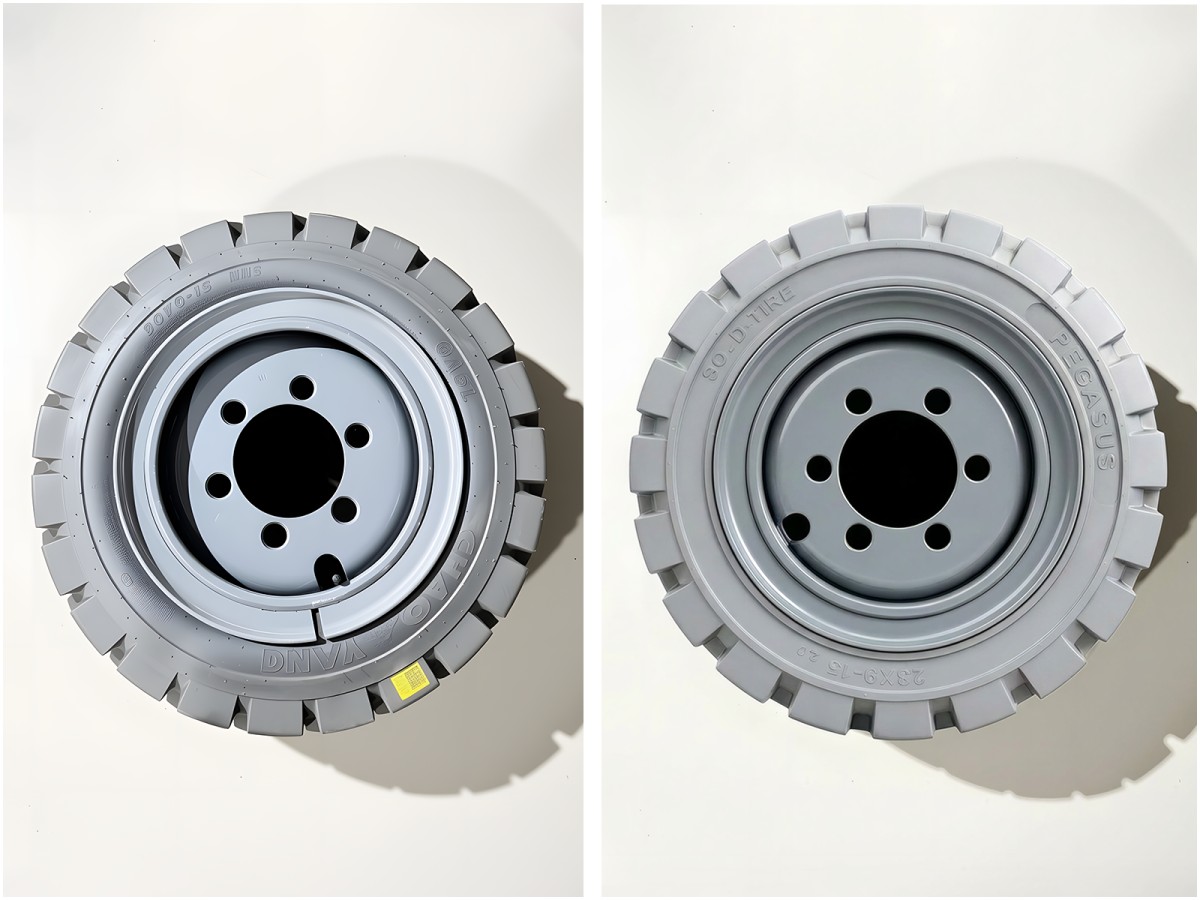

Tire types



Standard:Duplex Mast

Optional:Triplex Mast

Standard:Pneumatic Tire

Optional:Solid Tires

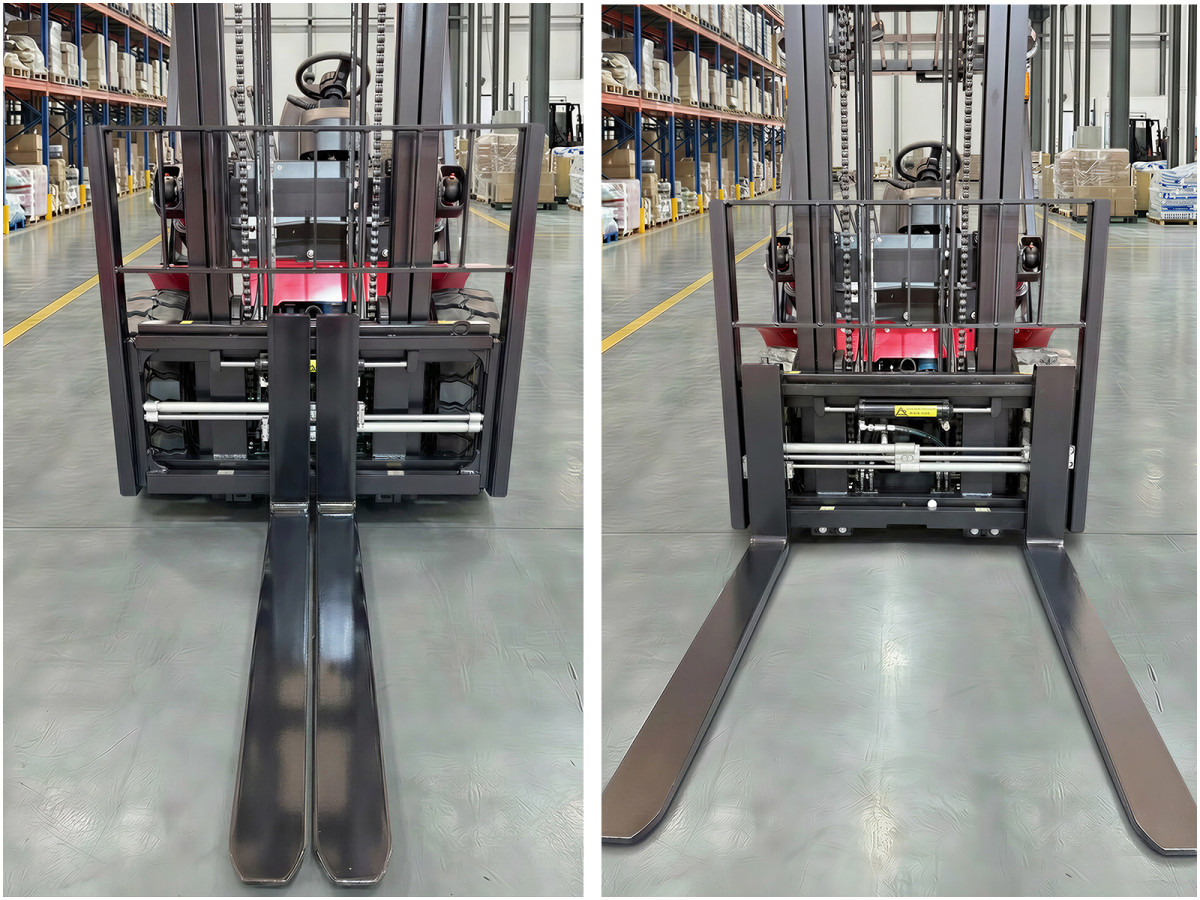

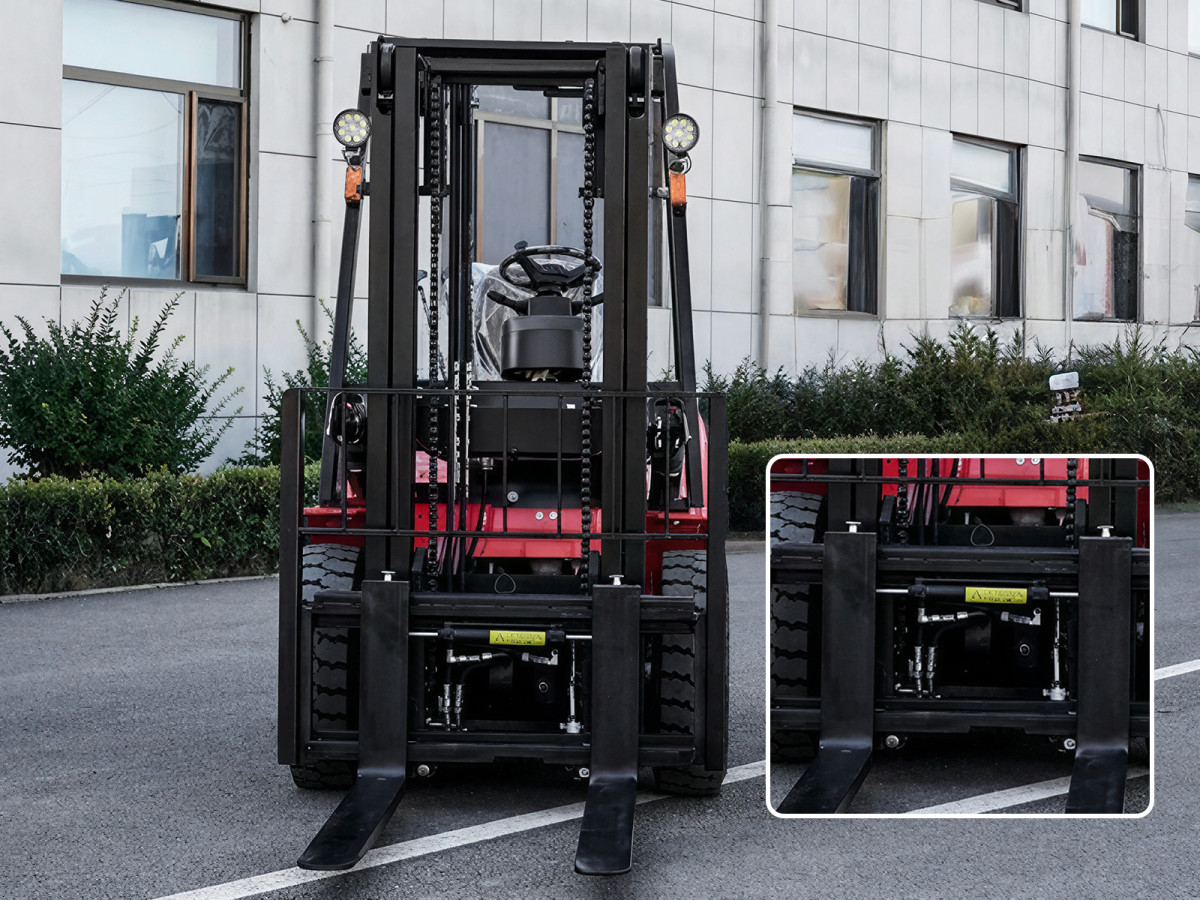

Adjustable Fork Spacing

Side Shifter

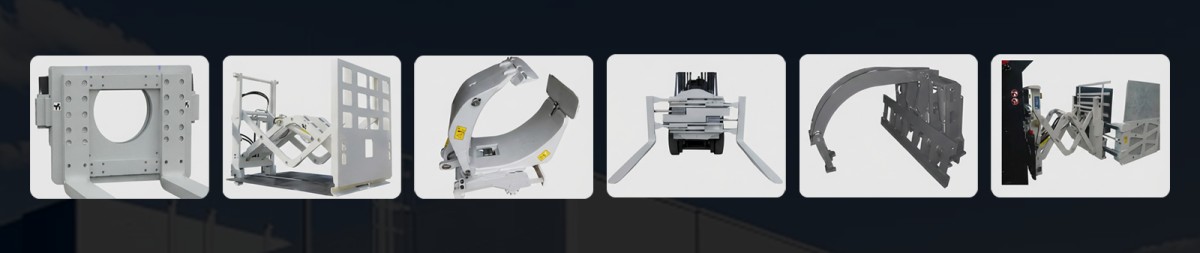

Optional Attachments



We also offer over 50+ unique features that surpass our competitors
