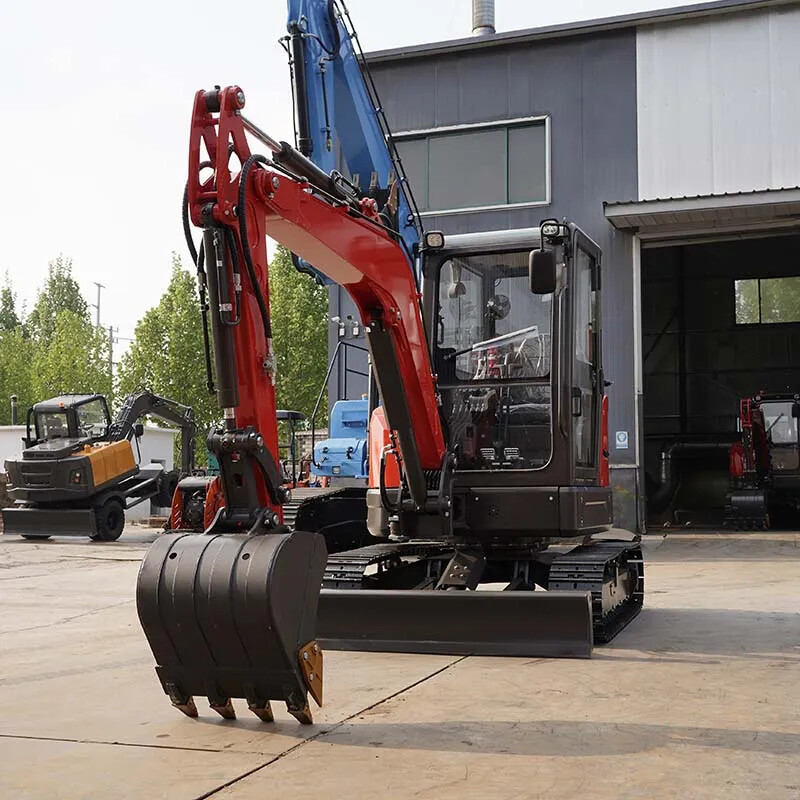

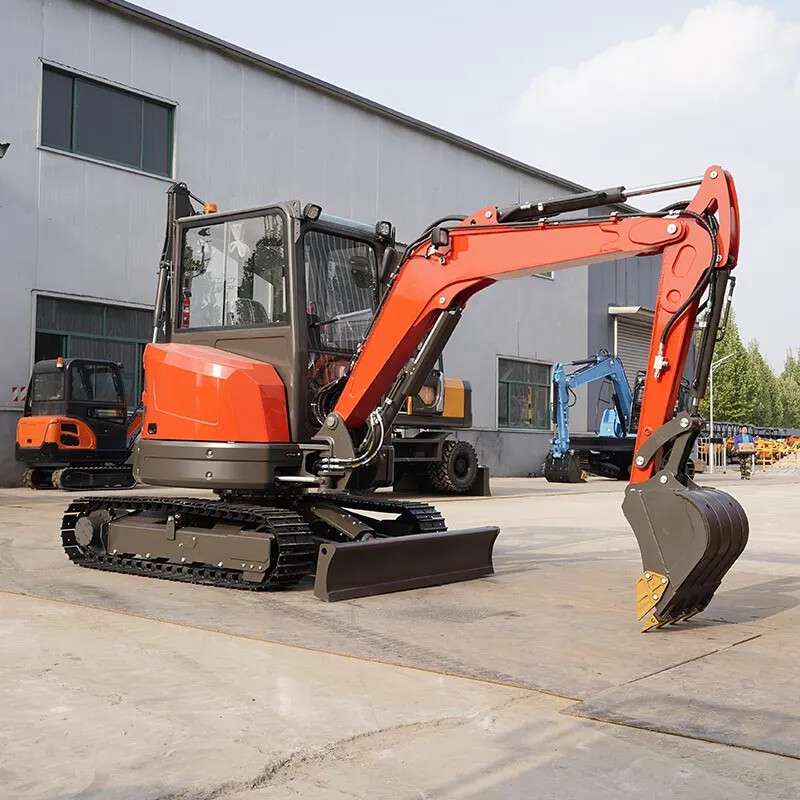

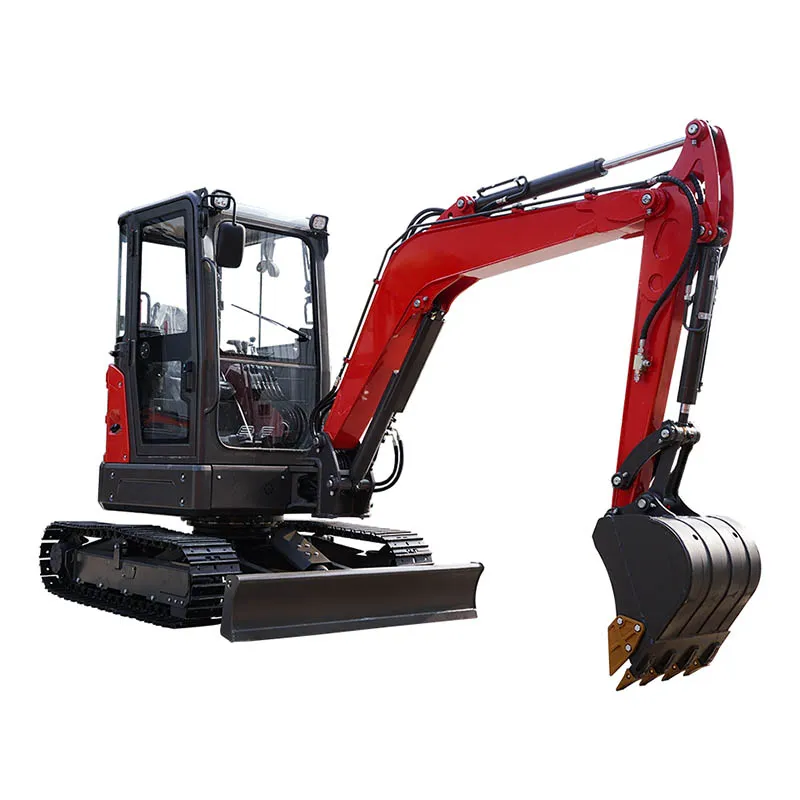

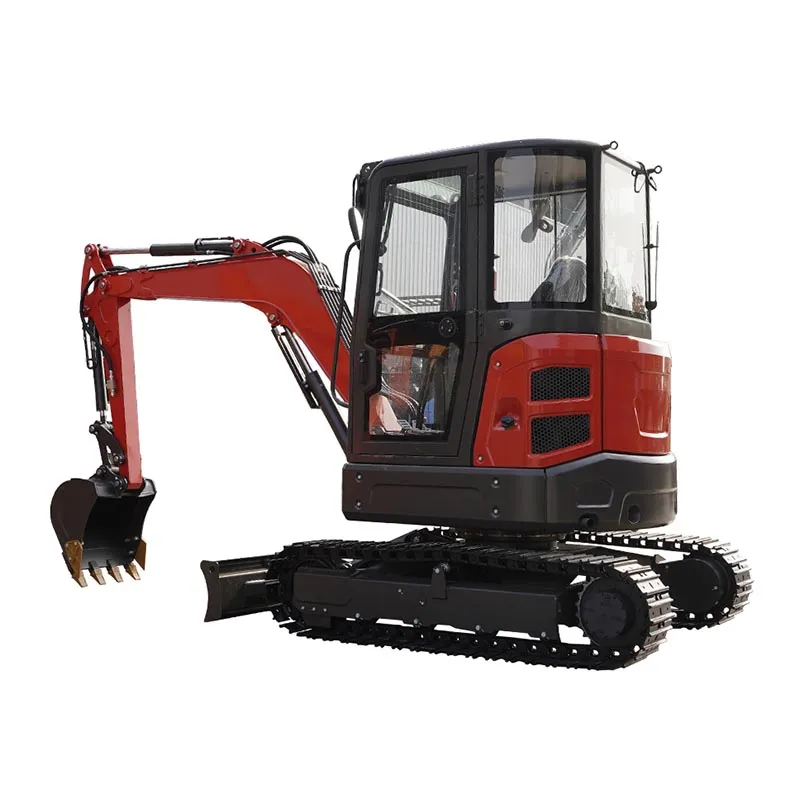

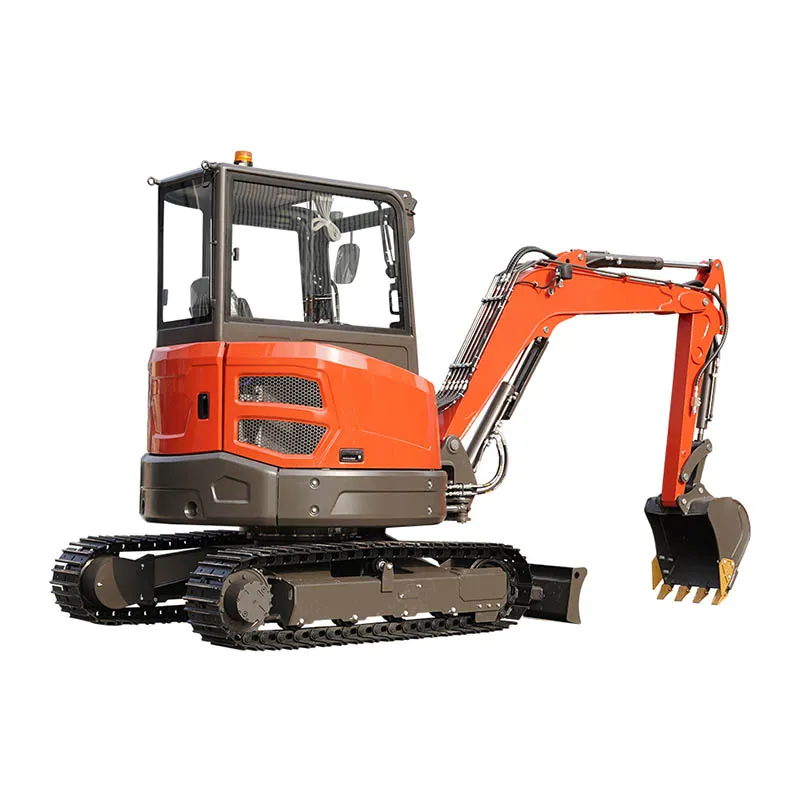

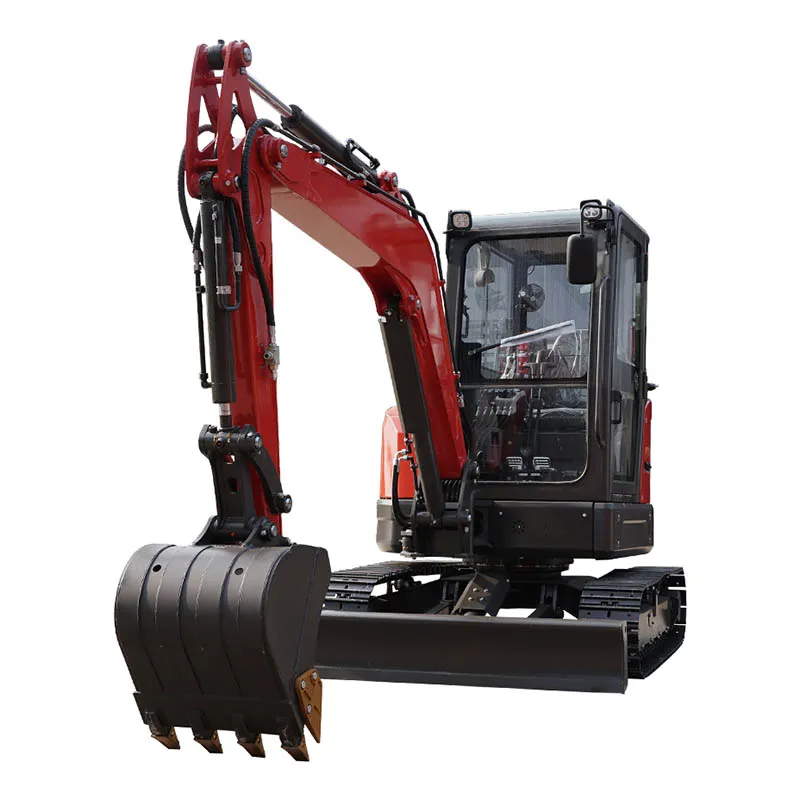

3.8 Ton Mini Excavators
Shandong LUYU Machinery is a professional LY-38 3.8 Ton Mini Excavators manufacturer and a national-level technological innovation enterprise in China. It has a complete machine production line and quality inspection links, especially the production of small excavators. After continuous research and development and innovation, 3.8 tons of mini excavators The machine already has a very complete operating system and maintenance-free system. Not only that, it is also a very stylish 3.8-ton mini excavator in appearance.
Rated power1OKW/13.5HP
Operating weight1000kg
Dumping height 1861mm
Digging depth1825mm


Shandong LUYU Machinery is a professional LY-38 3.8 Ton Mini Excavators manufacturer and a national-level technological innovation enterprise in China. It has a complete machine production line and quality inspection links, especially the production of small excavators. After continuous research and development and innovation, 3.8 tons of mini excavators The machine already has a very complete operating system and maintenance-free system. Not only that, it is also a very stylish 3.8-ton mini excavator in appearance.

PARAMETERS


Product Description

The 3.8-ton excavator is more moderate in size, which makes it flexible and versatile in various engineering projects. It can not only adapt to small and medium-sized construction sites, but also work in narrow areas. Moreover, compared with smaller Excavators, 3.8-ton excavators have more powerful power and excavation capabilities. Compared with large excavators, they are more flexible and easier to transport. Because of its smooth appearance, high configuration, low noise, superior performance, and low fuel consumption, it is very suitable for municipal landscaping, concrete pavement crushing and other tasks. Using quick-release joints, you can quickly switch between multiple attachments, and easily have multiple functions such as excavation, crushing, drilling, and bulldozing, truly realizing one machine with multiple functions, reducing operating costs and improving work efficiency.

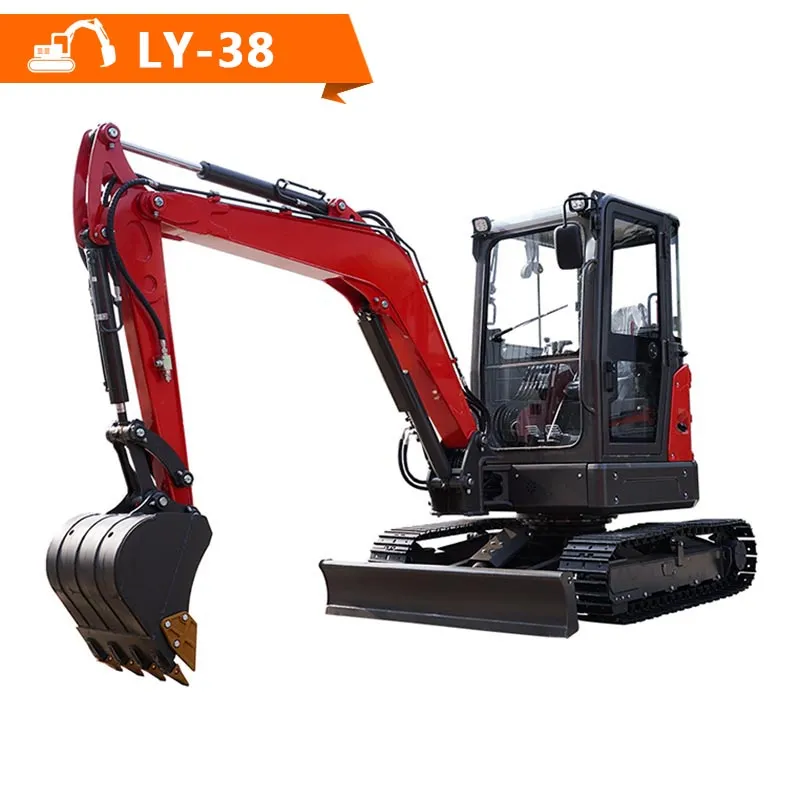

LY-38 3.8 Ton Mini Excavators specifications

Overall dimension (L*W*H)4915mm*1720mm*2525mm
Axle base(Track length on ground)1670mm
Length of rubber track2154mm
Track gauge1420mm
Minimum Ground clearance295mm
Swing radius at tail860mm
Swing radius at front2538mm
Height of blade350mm
Maximum Digging height4800mm
Maximum Dumping height3406mm
Maximum Digging depth3208mm
Maximum Vertical digging depth2957mm
Maximum Digging distance(working radius)5480mm
Maximum digging distance (on ground)5359mm
Minimum swing radius2530mm
Max.height when min.swing radius3655mm
Maximum Lifting height of blade365mm
Maximum Cutting depth of blade385mm
Boom swing angle(Left/Right)55°/65°
Emission StandardEuro 5,EPA4
Make /ModelKUBOTA /D1703
Power /Rotation speed18.5kw(25HP)@2200rpm
Number of cylinder3
TypeIn-line,water cooled, 4-stroke ,mechanical pump, normally aspirated
Max.torque97.4N.m/1500rpm
Displacement1.642L


The overall size of this machine is 4915*1720*2525mm. The engine adopts Kubota D1703 model engine. Kubota engine is widely recognized for its reliability, fuel economy, low noise and vibration, easy maintenance and environmental protection. They perform well in various applications, providing users with efficient and reliable power solutions. Meet Euro 5, EPA4 emission standards, more environmentally friendly, you can purchase with confidence.


Product maintenance

The 3.8-ton mini excavator is highly maintenance-free, which is specifically reflected in the following aspects.

1. Simplified maintenance procedures, the rear hood of the 3.8-ton mini excavator can gain direct access to the engine, hydraulic system and other key components, saving maintenance time and improving maintenance efficiency.

2. Durable and reliable components, the 3.8-ton mini excavator adopts high-quality materials and manufacturing processes to ensure its durability and reliability. They undergo strict testing and quality control to adapt to various working conditions and environments , which can fully reduce the risk of failure and damage.

3. High-quality seals and connections can effectively prevent hydraulic oil leakage, which not only improves the performance and efficiency of the equipment, but also reduces maintenance work caused by leakage.

4. Shandong LUYU Machinery will provide you with detailed maintenance guidance and support, including maintenance manuals, training and technical support. Such support can help you better understand the maintenance needs of your excavator and learn how to perform simple maintenance tasks.

However, it should be noted that although small excavators are relatively maintenance-free, regular preventive maintenance is still the key to ensuring long-term and efficient operation of small excavators. Therefore, we should perform regular maintenance and upkeep to ensure the excavator’s Long-term reliability and excellent performance.


Product Details

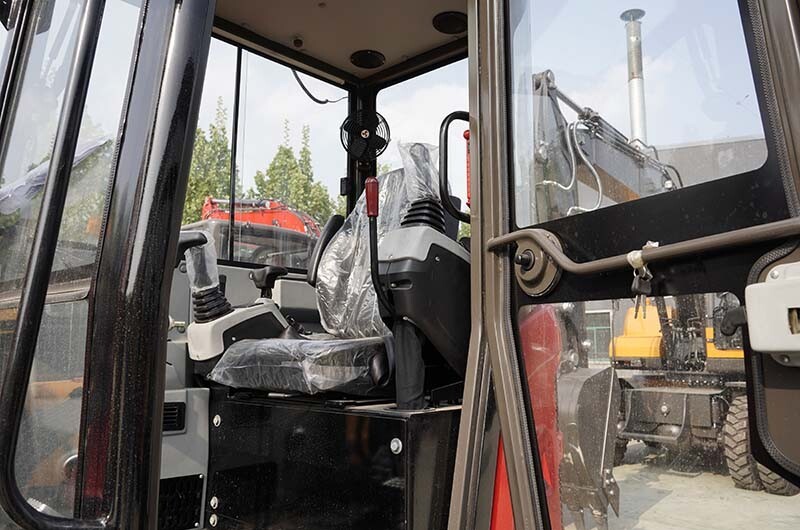

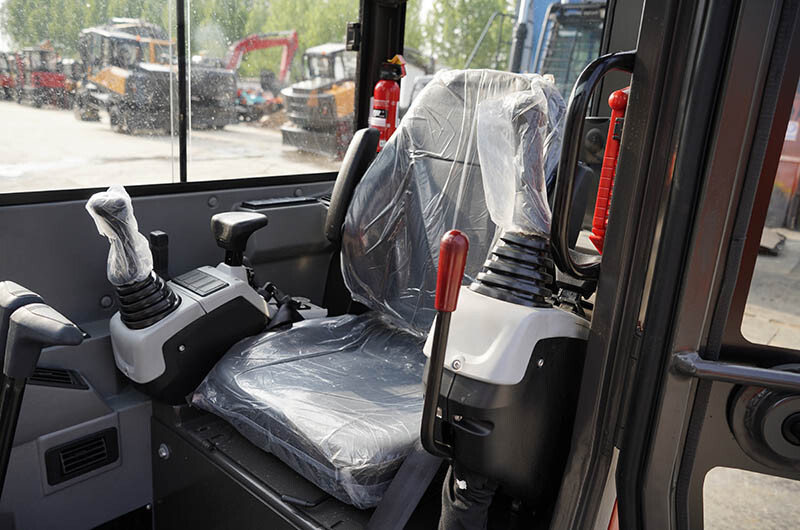

Comfort seat and hydraulic operating handle

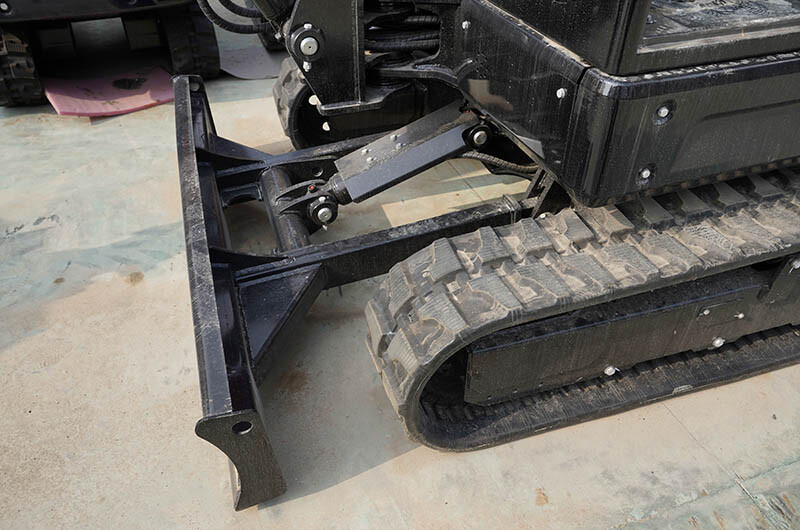

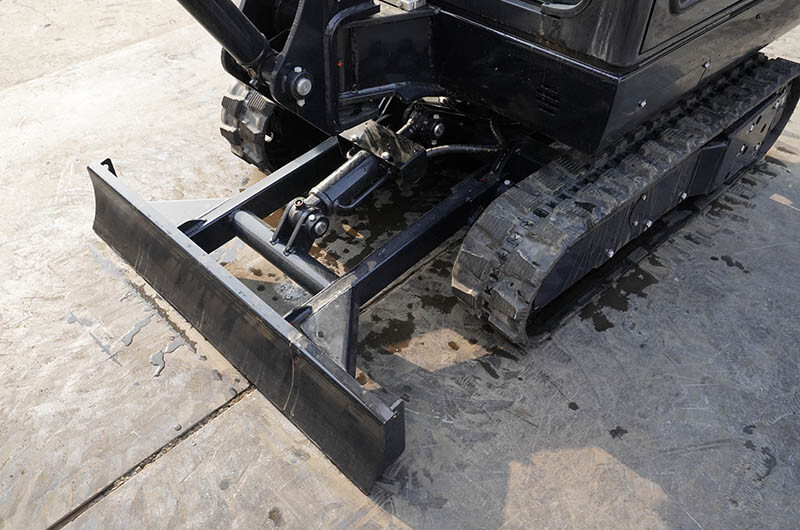

Thickened bulldozer blade design, hydraulic cylinder increased protection plate design, more secure

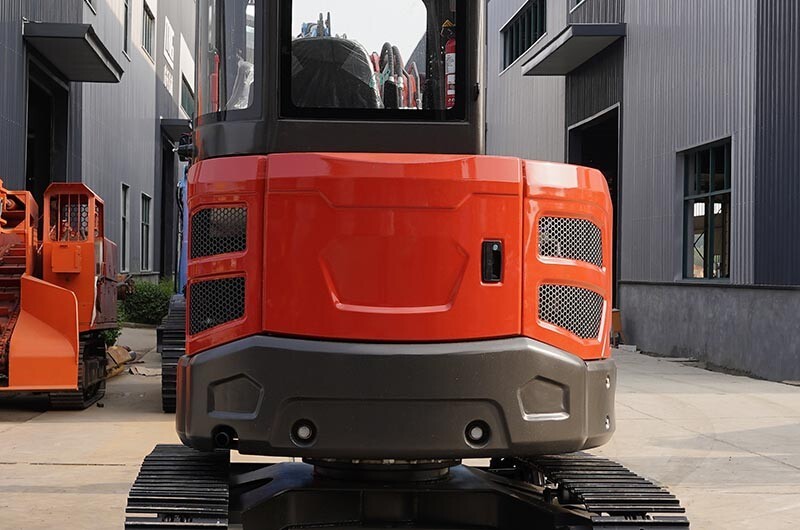

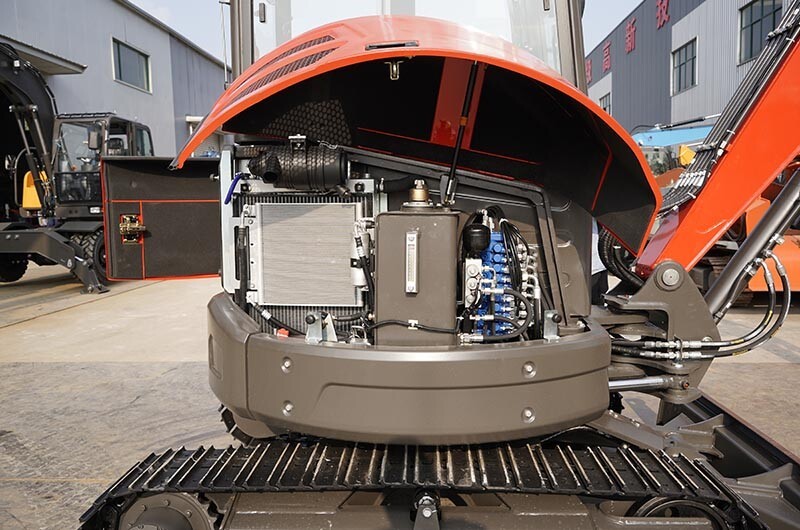

The opening and closing angle of the machine cover is large, which is convenient for daily inspection and maintenance

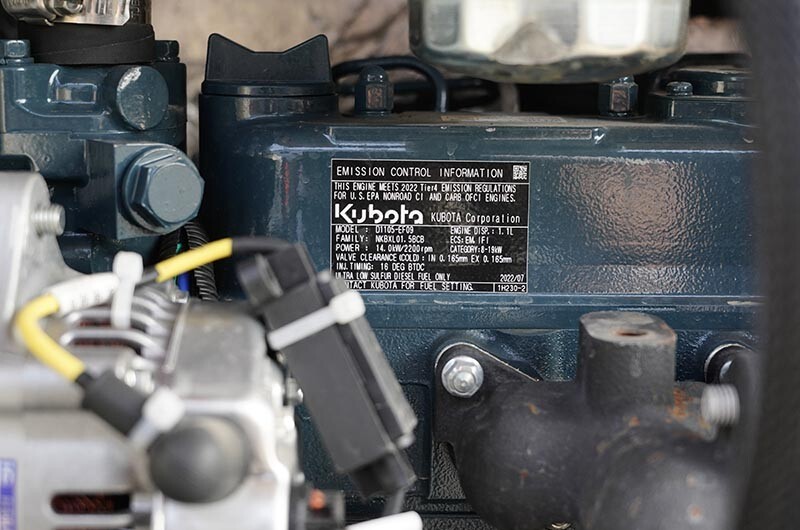

The standard Kubota engine has superior performance and is more efficient and reliable.
