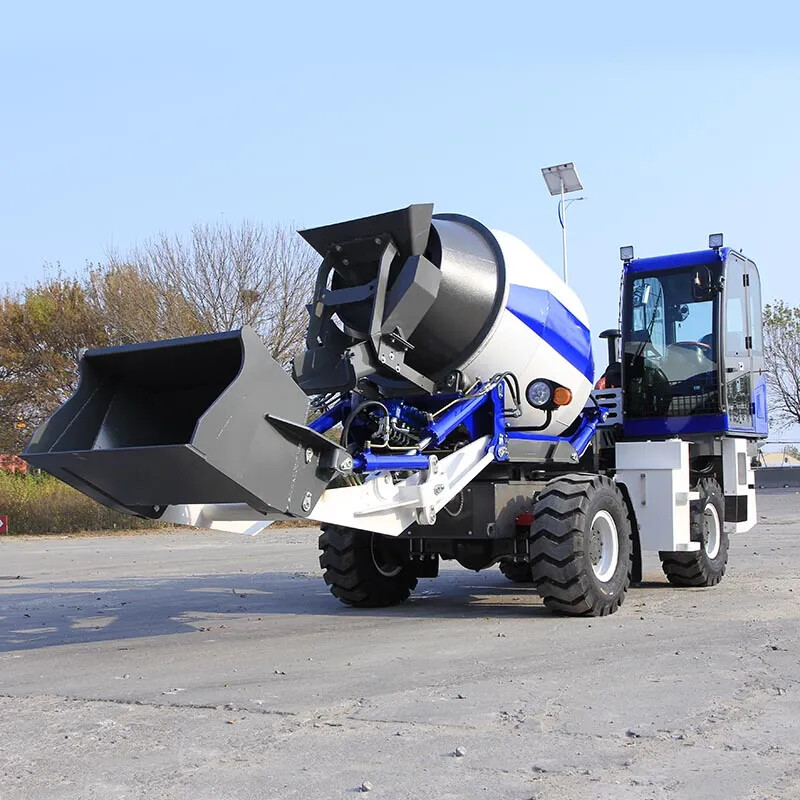

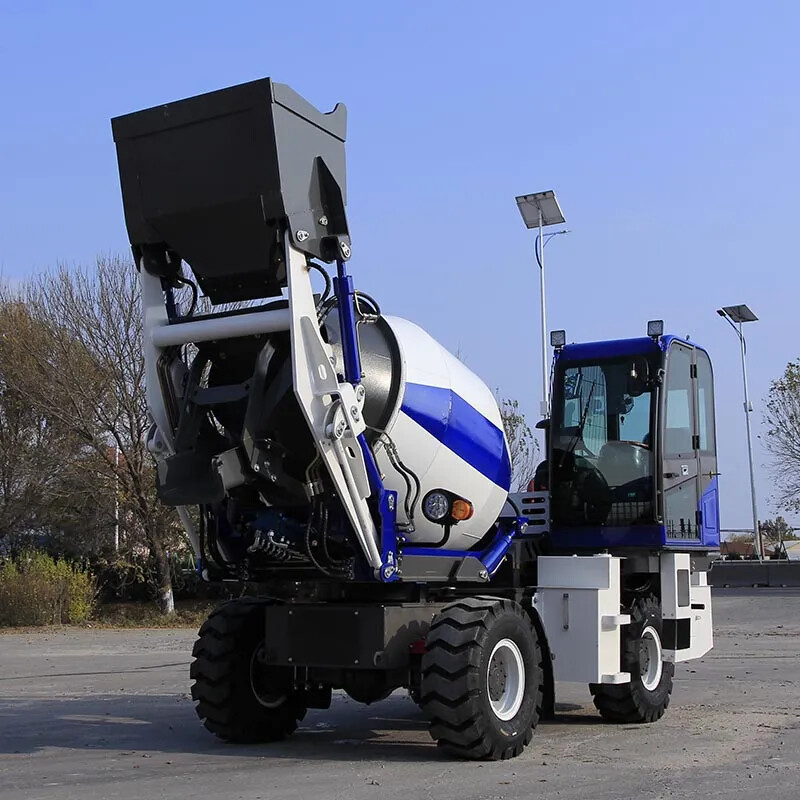

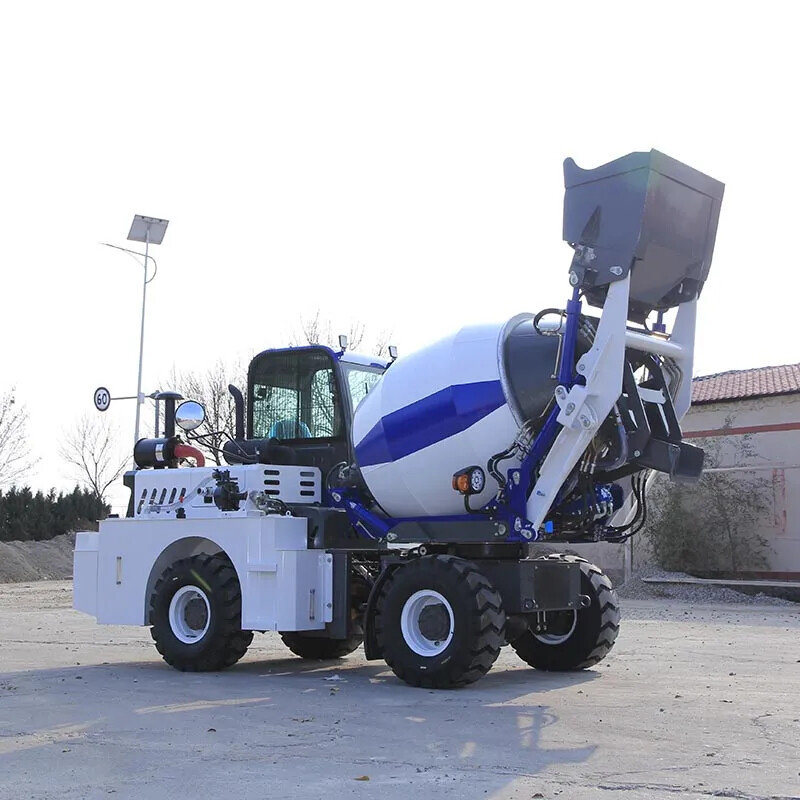

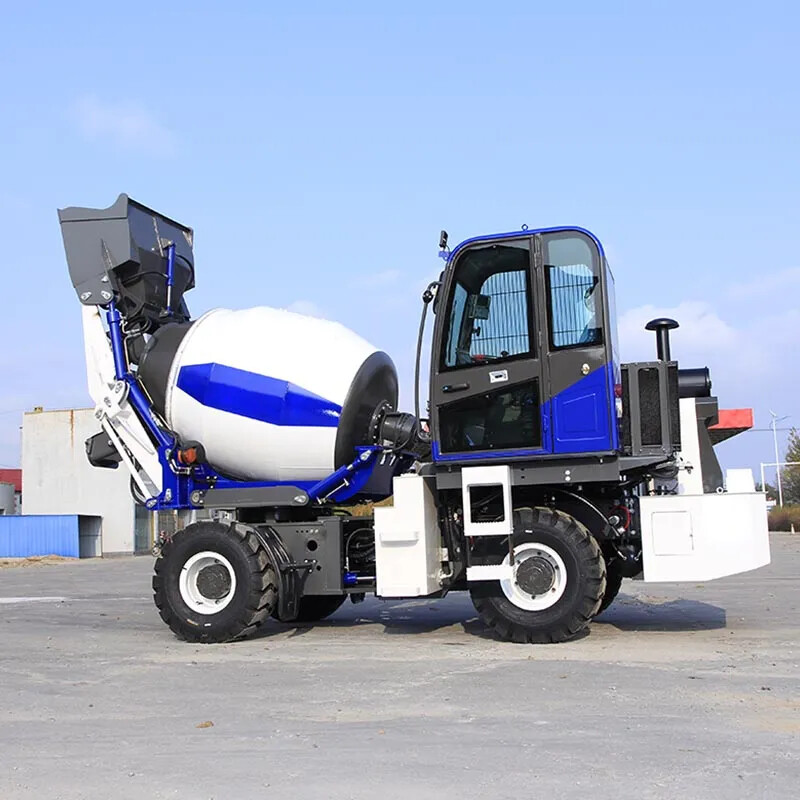

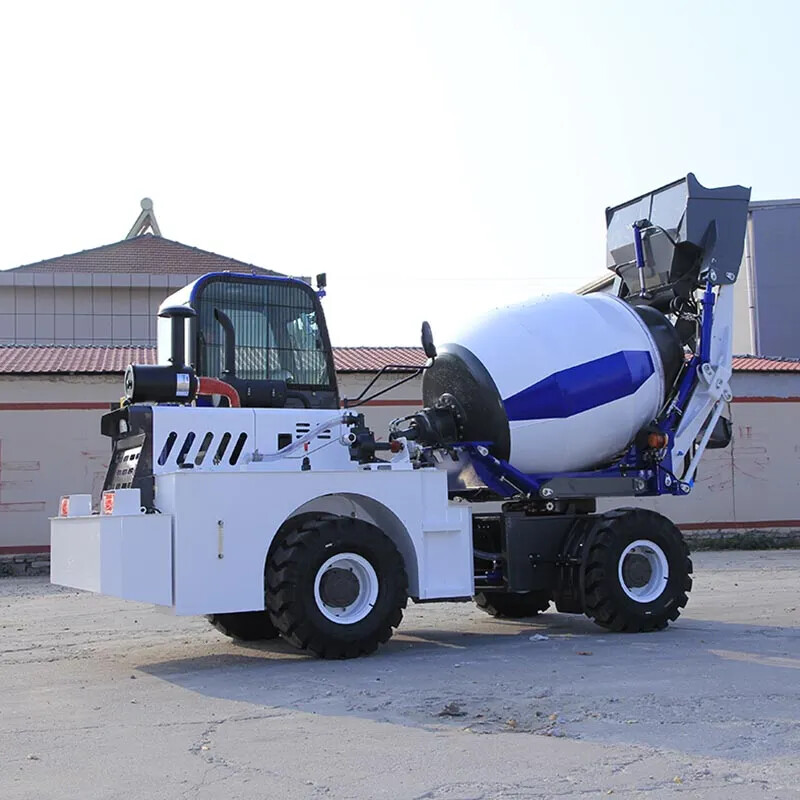

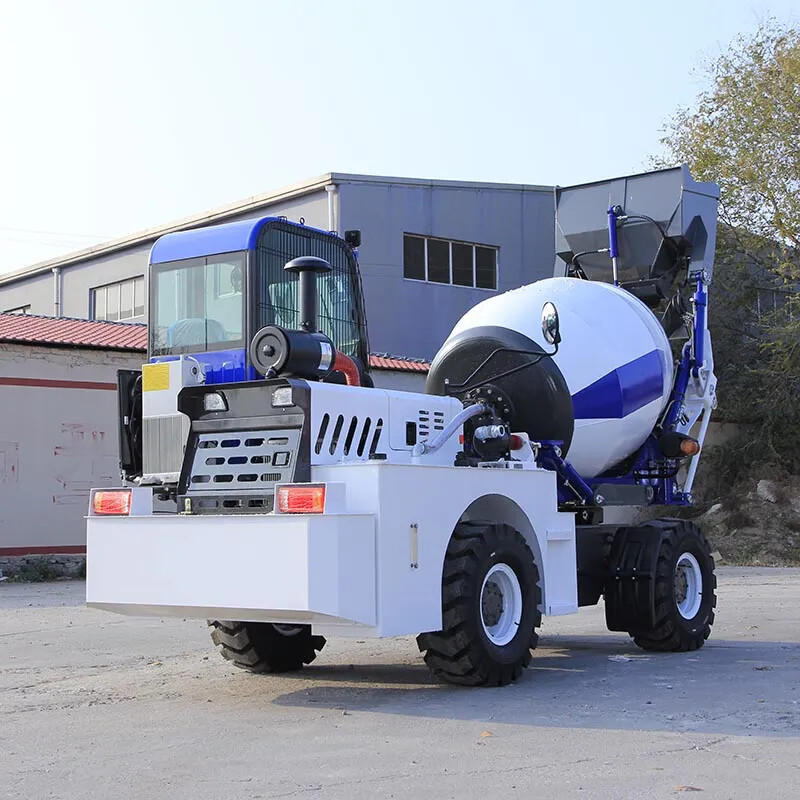

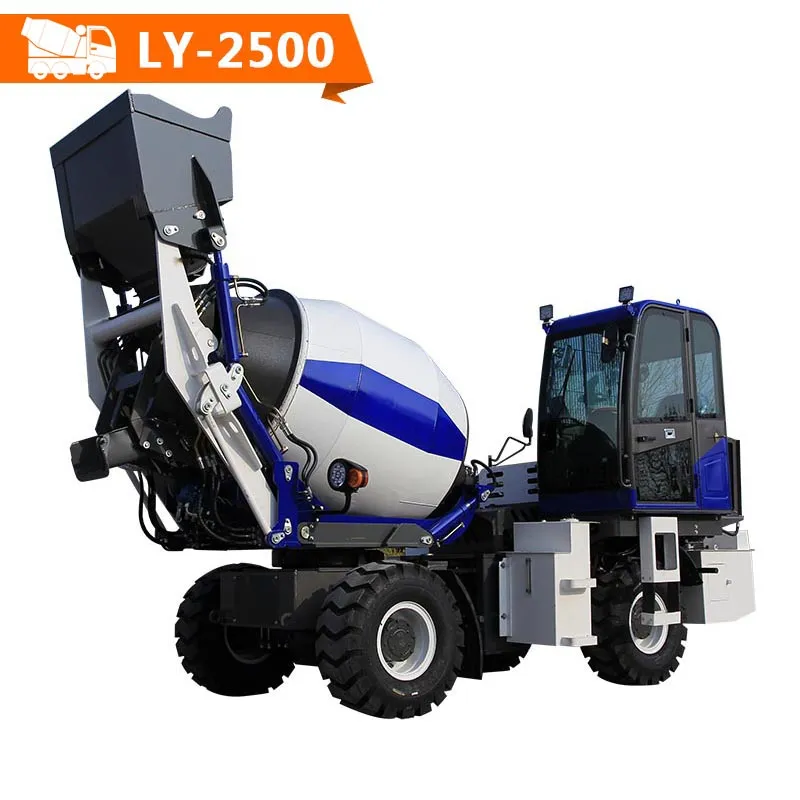

1.3 CBM Self Loading Concrete Mixer

LY-2500 1.3 cbm Self loading Concrete Mixer is a powerful, efficient, multi-purpose construction equipment suitable for construction and construction projects of all sizes. luyu machinery has specially developed and designed it based on market user feedback. This model is more suitable for modern construction. On the construction site, it helps to improve construction efficiency and reduce costs. Its performance is 20% higher than the same type of vehicles, and it is cheap, reliable in quality and has been verified for 100,000 hours of reliability.

Model: LY-2500

Send Inquiry

Product Description

LY-2500 1.3 cbm Self loading Concrete Mixer is a medium-sized equipment that is of great value in the construction and construction industries. The mixing capacity of 1.3m³can prepare a large amount of concrete at one time and improve production efficiency. It truly realizes the automatic feeding function, automatically placing raw materials into the mixing barrel, reducing the need for manual operation, and the driver can easily control it through the console. Vehicle operation is relatively simple, but the driver needs to be familiar with the control system and safe operating procedures. Although this model is a medium-sized device, it is compact in size and can enter narrow construction environments or urban roads. According to user needs, heating and cooling air conditioning, electronic scales, high-pressure car washing, two-way driving, etc. can be optionally equipped.


Product specifications

LY-2500 1.3 cbm Self loading Concrete Mixer is defined as a medium-sized equipment with a large mixing capacity and is more suitable for large-scale work than small concrete mixer trucks. The following specification data has been optimized and adjusted to be more suitable for user needs.


Machine size(L*W*H)

5300*2350*3610mm

Wheelbase

2300mm

Total weight

6200kg

Engine

Yuchai 4100turbo

Power

73kW

Gearbox

265 integral

Drive axle

1.8ton wheel side deceleration Bridge

Tires

20.5-16

Bucket capacity

0.4m³

Mixing capacity

≥1.3m³

Reduction ratio

1:28

Rotating speed

≥15 laps/minute

Travel speed

25km/h

Alex number traction type

4*4


Product Features

Mixing capacity and bucket capacity

Mixing capacity 1.3 cubic meters: LY-2500 1.3 cbm Self loading Concrete Mixer can prepare larger batches of concrete at one time. This high capacity makes it ideal for projects requiring large quantities of concrete supplies, such as large residential buildings, commercial buildings and infrastructure projects.

Bucket capacity 0.4 cubic meter: LY-2500 1.3 cbm Self loading Concrete Mixer is equipped with a 0.4 cubic meter bucket for loading raw materials such as cement, sand and earth. Bucket capacity is large enough to efficiently load the required raw materials, making concrete preparation more efficient and reducing labor-inflicted costs


Self-loading function

Self-feeding system: The self-feeding concrete mixer truck has an automatic feeding system, which can automatically put raw materials into the mixing tank, reducing the need for manual operation and improving work efficiency. The operator can easily control the self-loading process through the console.


Efficiency and productivity

Efficient mixing system: Equipped with an efficient mixing system, which consists of a mixing bucket and a mixing blade. The mixing barrel mixes the raw materials thoroughly while rotating to prepare uniform concrete.

Production capacity: Due to its relatively large mixing capacity, this type of mixer truck can continuously prepare large quantities of concrete and is suitable for projects that require high production volumes. It helps reduce construction time and improve work efficiency.

Concrete transportation: In addition to the mixing function, self-loading concrete mixer trucks can also transport concrete directly from the mixing barrel to the construction site. This reduces additional transport steps and increases the speed at which concrete can be supplied.


Product Details

Mixing bucket (concrete mixing bucket): This is the key component of LY-2500 1.3 cbm Self loading Concrete Mixer, which is used to mix raw materials (cement, sand, etc.) to prepare concrete. Mixing barrels are usually wear-resistant and high-strength to ensure the uniformity and quality of concrete.

Mixing blades: Mixing blades are usually installed inside the mixing barrel for mixing raw materials. The design and arrangement of these blades are crucial to the mixing effect of concrete.

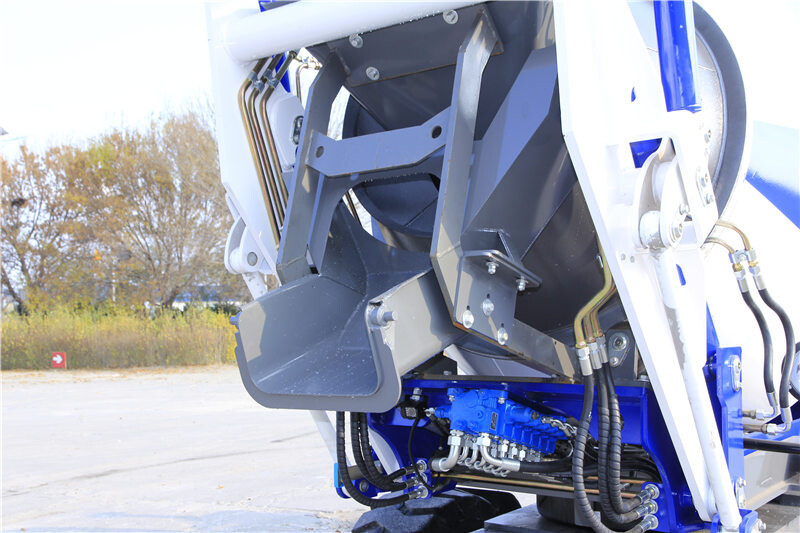

Self-loading system: The self-loading system includes loading buckets, conveyor belts and unloading devices. The bucket is used to load raw materials, the conveyor belt transfers the raw materials to the mixing barrel, and the unloading device is used to unload the mixed concrete to the required location.

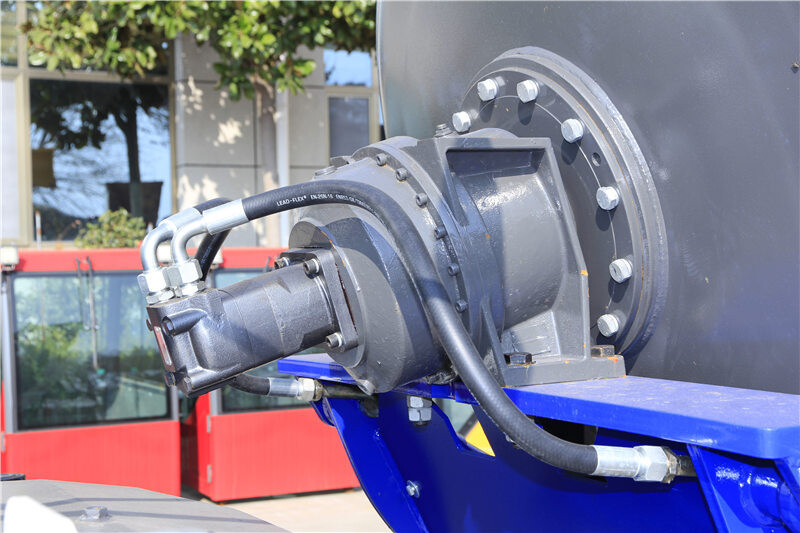

Drive system: This includes the rotating drive system of the mixing barrel, which is composed of an engine, transmission and hydraulic system and is used to drive the mixing barrel to rotate.

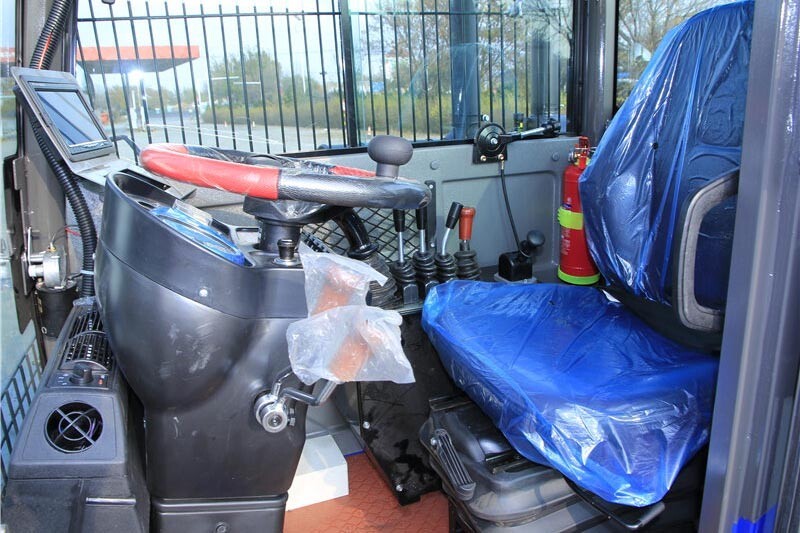

Control system: The control system includes an operating console, a control panel and a joystick, which are used to operate various functions of the self-loading concrete mixer truck, including mixing, loading, unloading, etc.

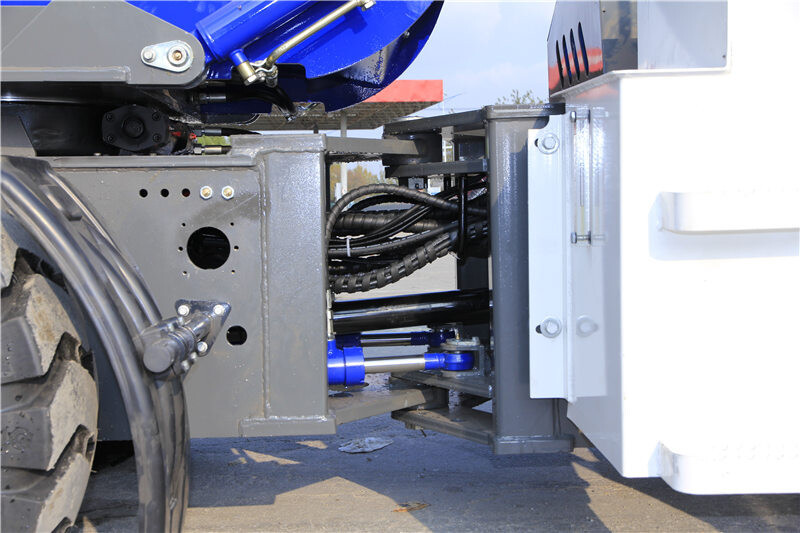

Hydraulic system: The hydraulic system is used to control various movements of the self-loading mixer truck, such as the lifting of the bucket and the rotation of the mixing bucket. It ensures that the various operations of the mixer truck can be carried out smoothly.

Chassis: The chassis is the bottom structure of LY-2500 1.3 cbm Self loading Concrete Mixer, supporting the entire vehicle and mixing equipment. It must be strong and durable to withstand the weight of the concrete and raw materials.

Engine: The engine generally adopts Yuchai 4100turbo, which is used to drive the hydraulic system and the rotation of the mixing barrel. The engine is a diesel engine to ensure sufficient power output.

Chassis and suspension system: The chassis and suspension system support the overall structure of the mixer truck and ensure its stability and maneuverability in different terrain and road conditions.

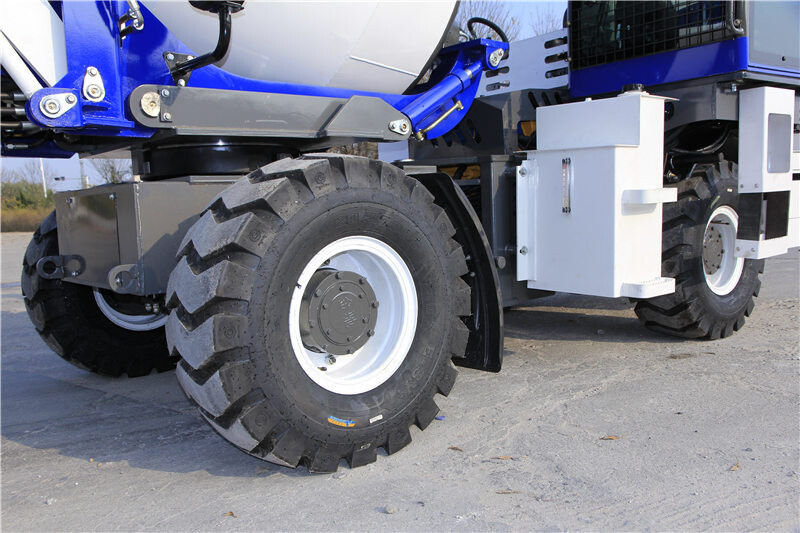

Tires and Axles: Tires and axles systems enable mixer trucks to move, and they are designed to have a certain amount of wear resistance and load-bearing capacity to adapt to a variety of job site conditions.
